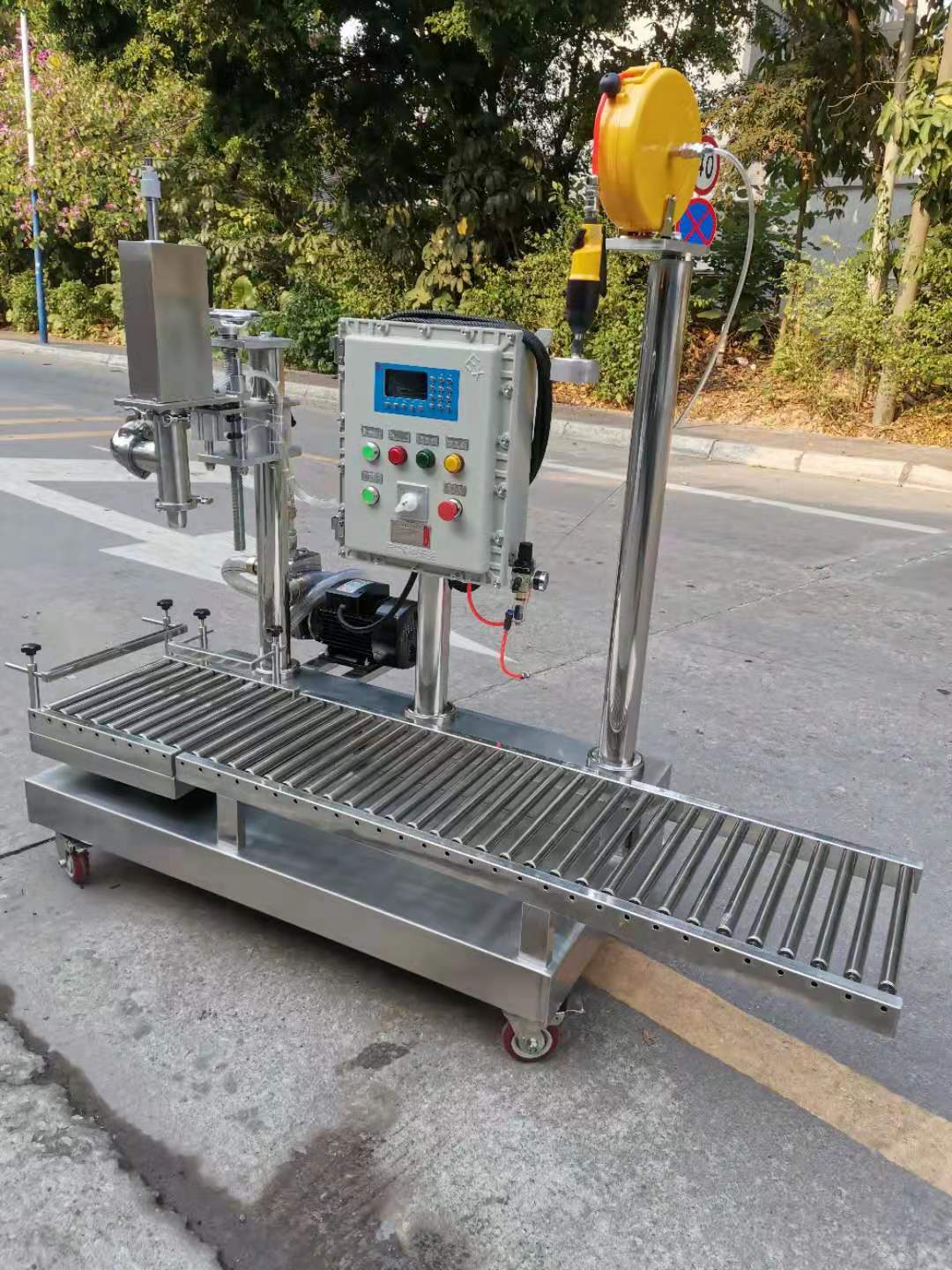

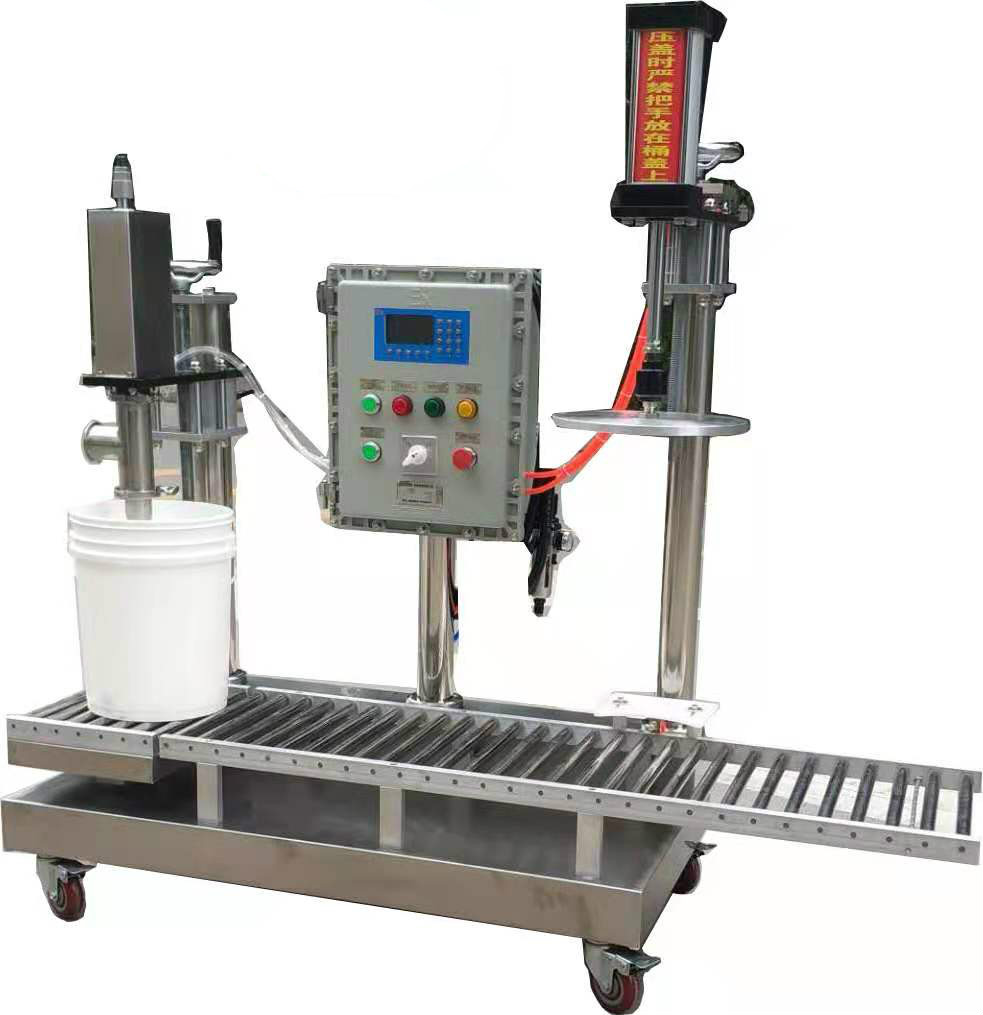

10-30L epoxy paint filling machine for PET pail with screw capper
Supplier: FUYI Machinery
Share to:
Details
Product introduction:
Acid and alkali resistant filling machine is an explosion-proof filling machine suitable for petrochemical, pharmaceutical, food, military and other enterprises working environment. It adopts liquid level filling method and is suitable for a variety of liquid materials. The unique spray gun device is easy to operate, fast and accurate pouring, and ensures the leakage of residual liquid at the end of filling.
Technical parameters:
1. Filling specification: 1-30L
2. Filling speed: 2-6 barrels / min (depending on material flow rate)
3. Body material 304 stainless steel
4. The contact part of liquid material is made of SS304
5. Anti dripping filling head (Φ 12mm outlet),
6. 6. The height between filling nozzle to the roller surface:180-420mm
7. 7. Graduation value: 5g
8. Cylinder gland range: ≤320mm
9. Equipped with 1.5m SS304 hose
10. Power supply: single phase AC220 V / 50 Hz
11. Gas source: 0.8MPa
12. Machine size: 1700*640*1500mm
13. Net Weight: 150KG
Features:
1. Automatic meteringliquid filling machine with gland function
2. Equipped with explosion proof control box
3. Digital key settings
4. Taiwan Delta PLC control
5. Tare detection starts all-round barrel filling
6. Gross weight / net weight (automatic peeling per barrel) and other filling methods
7. Automatic zero tracking
8. Automatic correction of weight error
9. Power on automatic reset, power off protection device
10. Emergency stop protection device
11. With fault detection function
12. Fast and slow dual speed filling, accurate filling accuracy
13. Taiwan high precision weighing control instrument
14. Real time operation status indication
