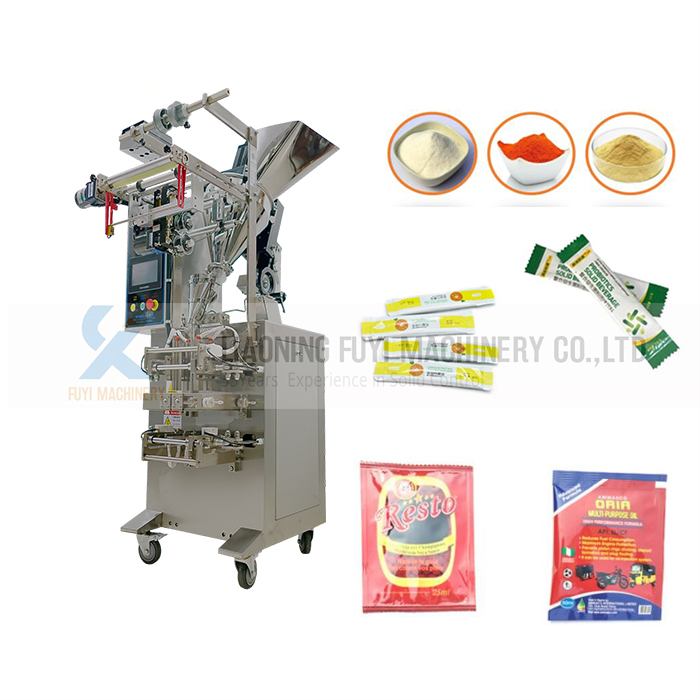

10g 3-side /4-side sealing whey protein powder packaging machine
Supplier: FUYI Machinery
Share to:
Details
5g,10g,15g, 20g 3-side /4-side sealing whey protein powder packaging machine
Application:
This machine is applicable to the metering packaging of dry powder articles in food, medicine, chemical industry and cosmetics industries.
Feature:
1. English and Chinese screen display (other language available).
2. PLC control, function is more stable, adjustment any parameters no need stop machine.
3. Servo motor pulling film, position accurately.
4. Temperature independent control system, precision get to ±1℃.

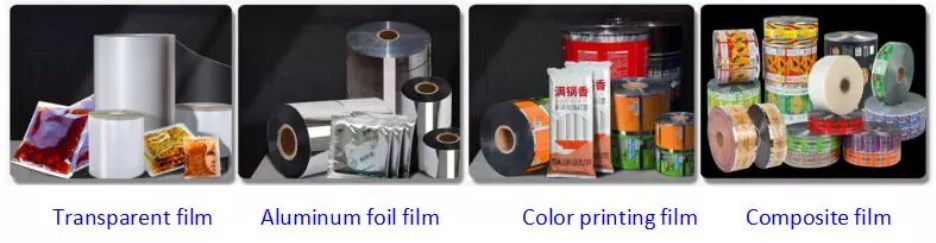

5. Horizontal, vertical temperature control, suitable for various of laminated film, PE film packing material.
6. Feeding, Weighing, Filling, Bag-making, Sealing, Cutting, Packing, Date printing in one operation.
7.Various bag type: pillow sealing, 3 side seal, 4 side seal.
8. Work circumstance quite, low noise.
9. Various bag type: pillow bag, gusset bag, stand up bag, etc.
This machine is applicable to the metering packaging of dry powder articles in food, medicine, chemical industry and cosmetics industries.
Feature:
1. English and Chinese screen display (other language available).
2. PLC control, function is more stable, adjustment any parameters no need stop machine.
3. Servo motor pulling film, position accurately.
4. Temperature independent control system, precision get to ±1℃.
5. Horizontal, vertical temperature control, suitable for various of laminated film, PE film packing material.
6. Feeding, Weighing, Filling, Bag-making, Sealing, Cutting, Packing, Date printing in one operation.
7.Various bag type: pillow sealing, 3 side seal, 4 side seal.
8. Work circumstance quite, low noise.
9. Various bag type: pillow bag, gusset bag, stand up bag, etc.
Technical parameters:
|
Model
|
FYAR-61
|
|
Packing speed
|
30-60 bags/min
|
|
Packing range
|
1-100g
|
|
Film width
|
≤320mm
|
|
Making bag length
|
L: 30-170mm
|
|
Making bag width
|
W:30-130mm
|
|
Film thickness
|
0.04-0.08mm
|
|
Voltage
|
AC220V, 50/60Hz
|
|
Power supply
|
1.4KW
|
|
Seal type
|
Back side/3-side /4-side
|
|
Net weight
|
220kg
|
|
Machine dimension
|
900 * 1100* 1588mm
|
|
Notes:
1. Different width bag needs order extra bag former. 2. Only suitable for dry powder with good fluidity. |
|

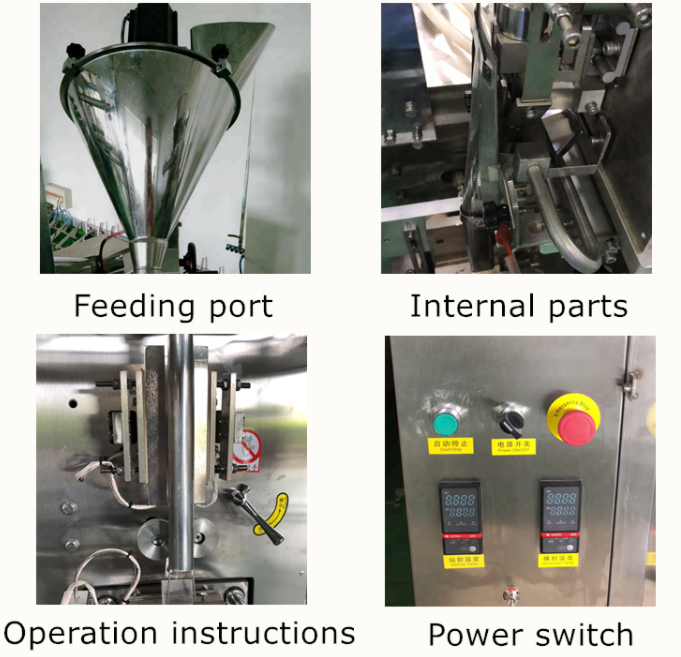

Details:
Applications:
