2-head paste filling machine
Supplier: FUYI Machinery
Share to:
Details

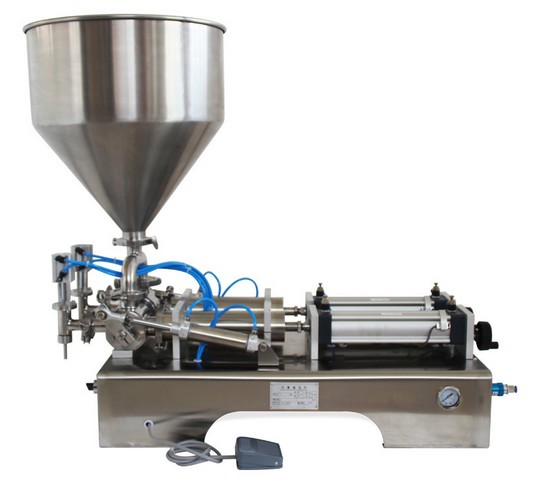

G2WG semi-automatic 2 heads pneumatic piston paste filling machine
Brief introduction:
G2WG semi-auto double heads pneumatic filling machine is of wide applicability, is an ideal
equipment for filling high viscous fluid, creams or other liquids in the fields of daily chemistry, food and beverage, pharmacy, chemistry and so on.
Main features:
equipment for filling high viscous fluid, creams or other liquids in the fields of daily chemistry, food and beverage, pharmacy, chemistry and so on.
Main features:
1. This machine is pneumatically-driven structure, easy to operate, remove and clean and accurate quantification.
2. The shell and all the parts connected with filling materials are made of stainless steel (SS304 is used for standard ones and SS316 can also be customized).
3. The inner walls of main parts are mirror-polished, which conforms to the requirements of GMP certification. Therefore, it is rustless and corrosion resistant.
4. The users can adjust the filling volume and speed within the type limitation as required.
5. The 2 filling heads can work at the same time, or work separately.
6. There's a switch for manual and auto, you can set the interval time to let it fill automatically or use the pedal switch to control each filling time.
,
2. The shell and all the parts connected with filling materials are made of stainless steel (SS304 is used for standard ones and SS316 can also be customized).
3. The inner walls of main parts are mirror-polished, which conforms to the requirements of GMP certification. Therefore, it is rustless and corrosion resistant.
4. The users can adjust the filling volume and speed within the type limitation as required.
5. The 2 filling heads can work at the same time, or work separately.
6. There's a switch for manual and auto, you can set the interval time to let it fill automatically or use the pedal switch to control each filling time.
,
Technical parameters:
|
Model
|
G2WG
|
|
Material
|
stainless steel 304
|
|
Filling range(ml)
|
250-2500ml/300-2500ml, 500-5000ml/1000-5000ml
|
|
Filling accuracy
|
±1 %
|
|
Filling seed
|
1-30 bottles /min
|
|
Power
|
AC220V/50Hz
|
|
Air supply
|
400L/min 0.6Mpa
|
|
Hopper capacity
|
30L
|

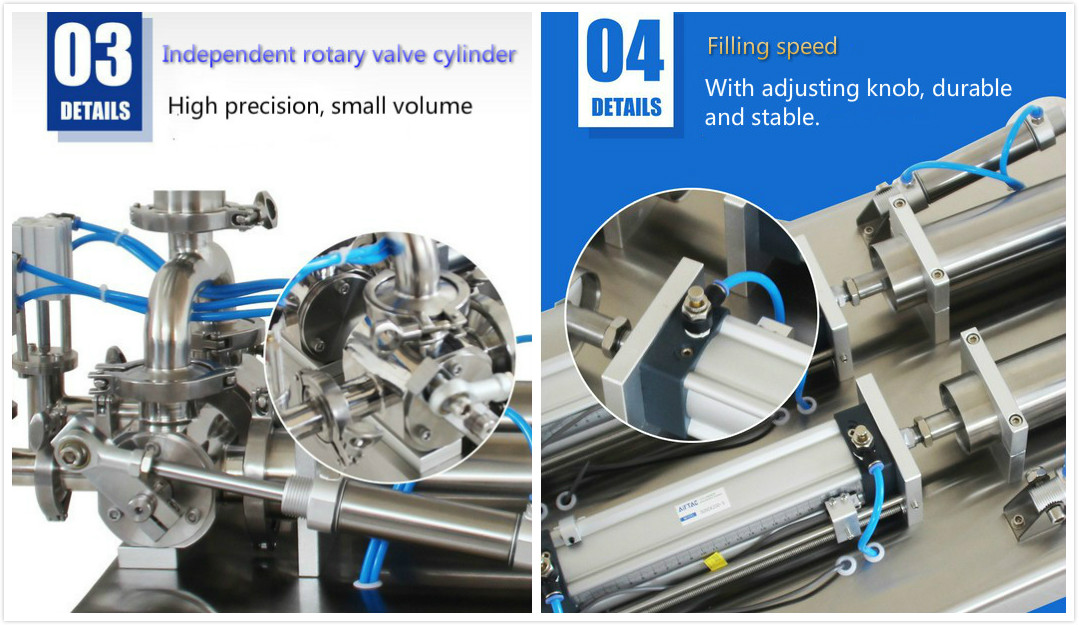

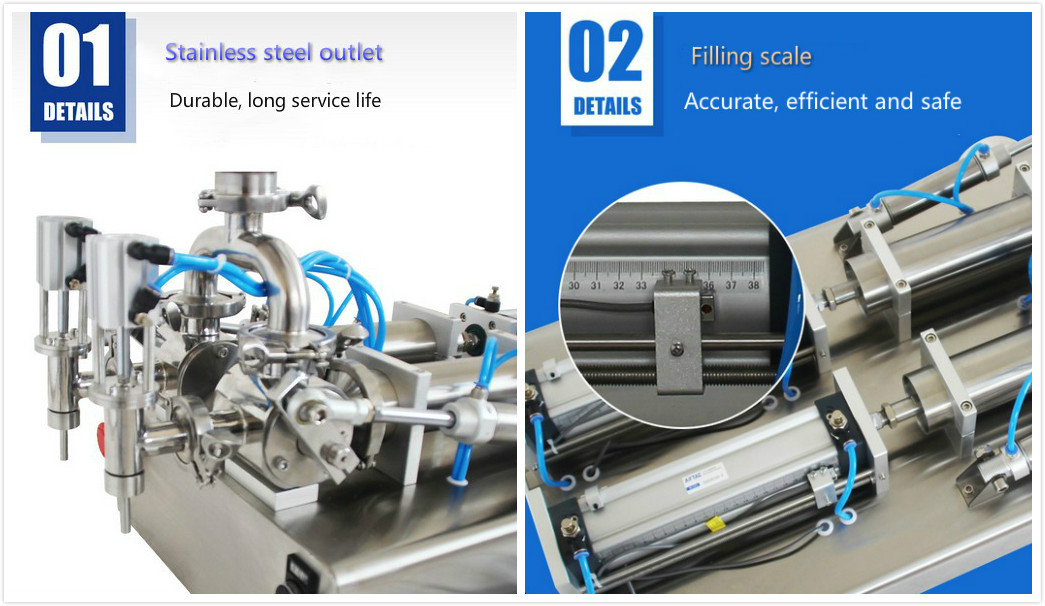

Machine details:
Application:
