2 heads pneumatic liquid filling machine
Supplier: FUYI Machinery
Share to:
Details

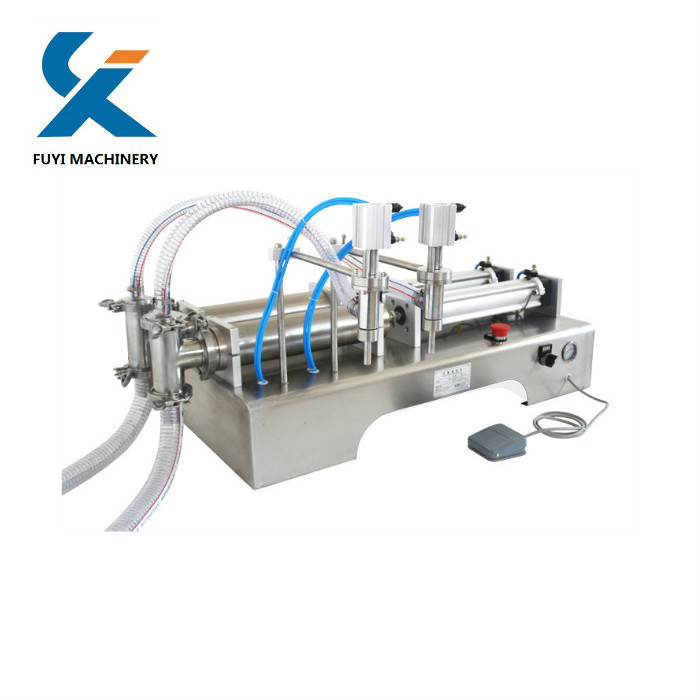

2 heads pneumatic liquid filling machine
Main features:
*The machine is a semi-automatic piston liquid filling machine, easy to operate .
*The design of the whole machine is stainless steel, with stable performance.
*Adopts Taiwan AIRTAC pneumatic and electronic control components.
*The hand wheel is used to adjust the filling volume. It is more convenient to use, the filling volume is accurate, and the filling speed can be adjusted at will to fill various liquid materials.
*The filling nozzle adopts anti dripping and anti drawing device, which has good filling effect.
Technical parameters:
|
Model |
G2WY |
|
Filling speed |
1-25 bottles/min |
|
Filling accuracy |
≤±0.5% |
|
Filling range |
5-100ml, 30-300ml, 50-500ml, 100-1000ml, 250-2500ml, 300-3000ml, 500-5000ml |
|
Power |
220V 50HZ |
|
Air pressure |
0.4-0.9MPA |
|
Weight |
26.8KG |
|
Overall size |
900*400*700mm |

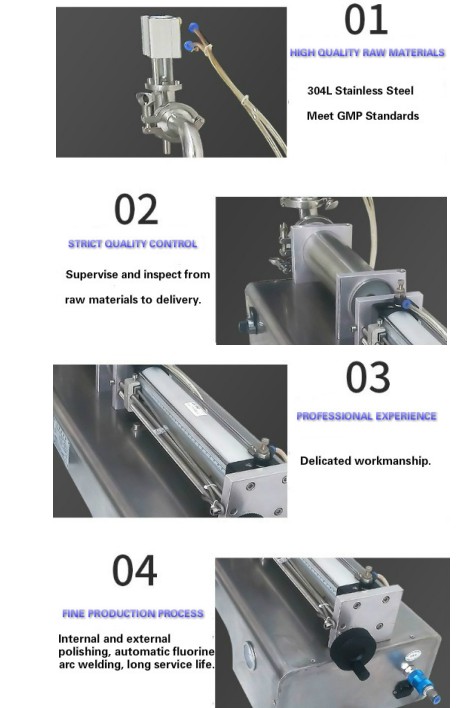

Details:
Notes:
This machines needs air compressor while working, please contact us for extra order or provide it by yourself.
