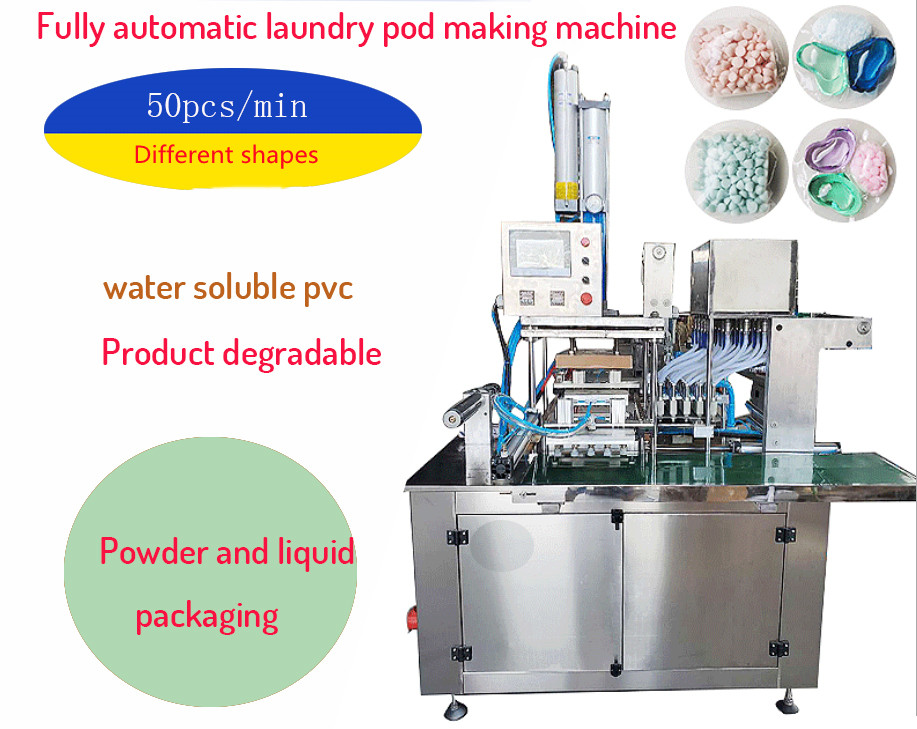

3-in-1 washing liquid pods filling and packing machine for PVA water soluble film
Brief introduction:
This is water-soluble film packaging machine, is applicable for.laundry beads or other soluble pods making. Such as pesticides, chemical fertilizers, pigments, dyes, detergents, water treatment agents, mineral additives, detergents, concrete additives and other pesticide solutions, cleaning solution supplies and medical solution cleaning bags.
Main features:

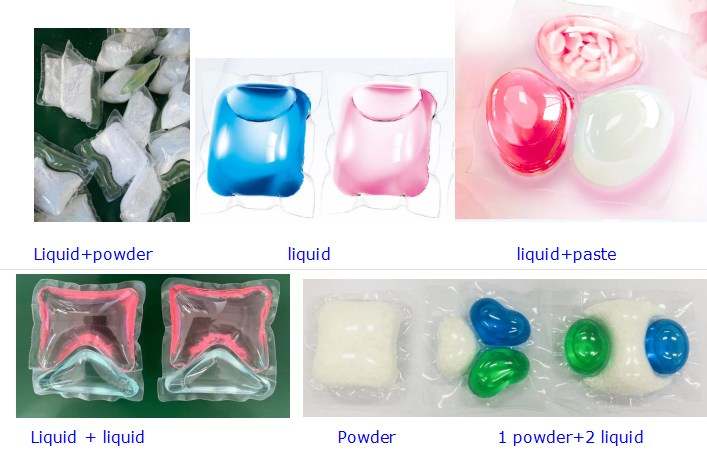

1. Can fill both powder and liquid separately.
2. The pods size can be customized according to customer's requirement.
3. Stainless steel 304 case
4. With PLC touch screen control
5. The intelligent temperature controller controls the heat seal temperature.
2. The pods size can be customized according to customer's requirement.
3. Stainless steel 304 case
4. With PLC touch screen control
5. The intelligent temperature controller controls the heat seal temperature.
Technical parameters：
|
Model:
|
FYPC16-A
|
Inner hole diameter of packaging reel membrane:
|
70-80mm
|
|
Power supply:
|
380V/50HZ 4.5KW
|
Air source:
|
0.6MPa
|
|
Packing speed:
|
32-168 pcs / min
|
Max. diameter of film roll:
|
400mm
|
|
The volume of packing:
|
5-50 grams
(generally 10, 25g, 30g) |
Width of lower film:
|
300mm
|
|
Made pod size:
|
37 * 53 * 20MM (excluding sealing position) can customize
|
Width of upper film:
|
280mm
|
|
Machine size:
|
1700*1000*1800mm
|
Machine weight:
|
500kg
|
Machine details:
