3D movement powder mixing machine
Product introduction：
SYH Series muti-directional motion mixer is a material mixer widely used in pharmaceutical, chemical,metallurgy, food, light industry, agriculture and other industries. The machine can mix powder or granules very evenly to achieve the best results after mixing.
Working principle:
The material is added to the mixing tank through the feeding machine or the vacuum feeding system. The mixing barrel space is crossed and perpendicular to each other. The main and driven shafts connected by the Y-type universal joint support the mixing barrel to make the three-dimensional space. The unique translation, inversion and inversion movements accelerate the flow and diffusion during the mixing process, and avoid the segregation and accumulation of the specific gravity of the materials caused by the centrifugal force of the general mixer, so that the material can be reached in a short time. The ideal blending effect.
Technical Parameters：
|
Model |
Gross Volume (L) |
Max Loading Volume (L) |
Max Loading Weight(kg) |
Rotary Speed(rpm) |
Power(kw) |
Dimension (L*W*H)(mm) |
Weight(kg) |
|
SYH-5 |
5 |
4 |
2.4 |
0-12 |
0.25 |
600*1000*700 |
150 |
|
SYH-15 |
15 |
12 |
7.5 |
0-12 |
0.37 |
700*1000*700 |
250 |
|
SYH-50 |
50 |
40 |
25 |
0-12 |
1.1 |
1000*1400*1100 |
300 |
|
SYH-100 |
100 |
80 |
50 |
0-12 |
1.5 |
1200*1700*1200 |
500 |
|
SYH-200 |
200 |
160 |
100 |
0-12 |
2.2 |
1400*1800*1500 |
800 |
|
SYH-300 |
300 |
240 |
150 |
0-12 |
3 |
1800*1950*1700 |
1000 |
|
SYH-400 |
400 |
320 |
200 |
0-12 |
4 |
1800*2100*1800 |
1200 |
|
SYH-500 |
500 |
400 |
250 |
0-12 |
5.5 |
1900*2000*1950 |
1380 |
|
SYH-600 |
600 |
480 |
300 |
0-12 |
5.5 |
1900*2100*2100 |
1500 |
|
SYH-800 |
800 |
640 |
400 |
0-12 |
7.5 |
2200*2400*2250 |
2000 |

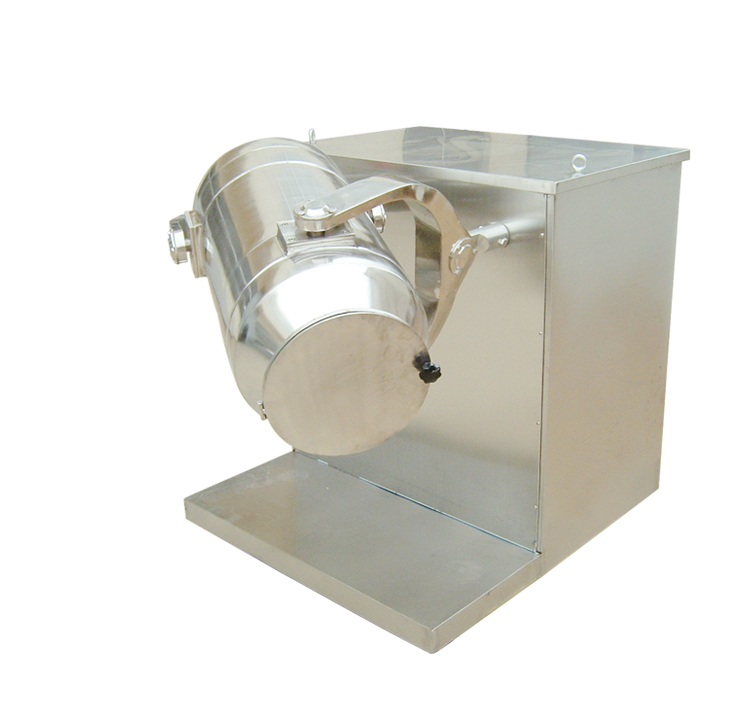

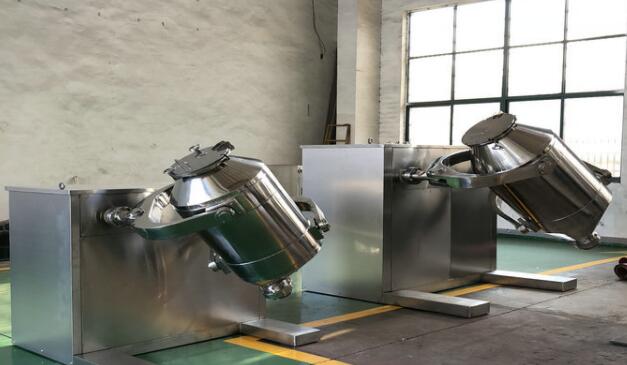

Machine photos:
