4/6- lane honey sachet Packing Machine
Supplier: FUYI Machinery
Share to:
Details

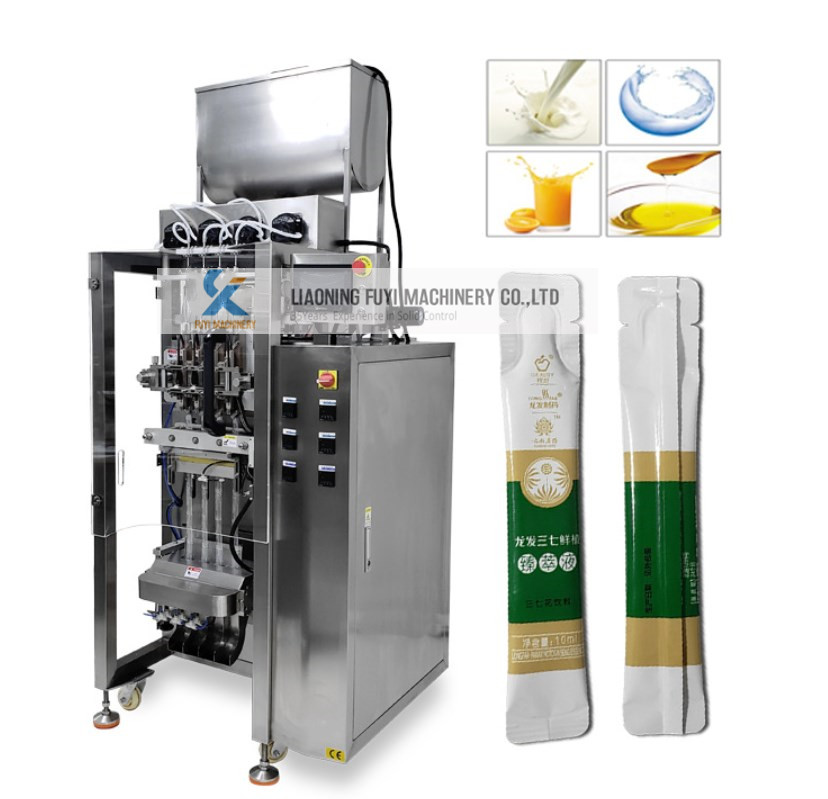

4/6- lane honey sachet Packing Machine
1.Function:
Automatically measuring volume, making bags, filling, sealing, cutting, printing the lot number and cutting easy tearing notches,finished product conveying.Applicable for the Liquid,Sauce.such as chocolate sauce ,ketchup etc.
2.Standard Features:
(1).Famous brand PLC control system,large touch screen,convenient to operate;
(2).Advanced design,high precision and fast speed;
(3).No film alarm,saving materials and no wasting film;
(4).Photoelectric tracking system for precise bag length and position of film
(5).Machine case is made of 304 stainless steel,which is more good for food.
(6).Material bucket:Heating and stirring insulation
3.Specification :
|
Model: |
KN-280F |
|
Lane number: |
4 lanes |
|
Packed item: |
honey |
|
Capacity: |
18-25bags/min/lane |
|
Bags size: |
Length: 170 mm Width:25 mm |
|
Film width: |
Max.280mm |
|
Film thickness: |
0.07--0.10mm |
|
Metering pump: |
Piston pump |
|
The Bin: |
heating and stirring |
|
Sealing type: |
Back sealing |
|
Cutting type: |
Straight cutting |
|
Hopper volume: |
60L |
|
Film material:: |
Laminated film,like PET/PE,OPP/PE,NY/PE.etc. |
|
Air consumption: |
0.8Mpa 0.8m3/min |
|
Dimension : |
L1385 x W918x H2800mm |
|
Weight: |
350kg |
4.Machine details:
