4 head sauce u shape filling machine
Supplier: FUYI Machinery
Share to:
Details

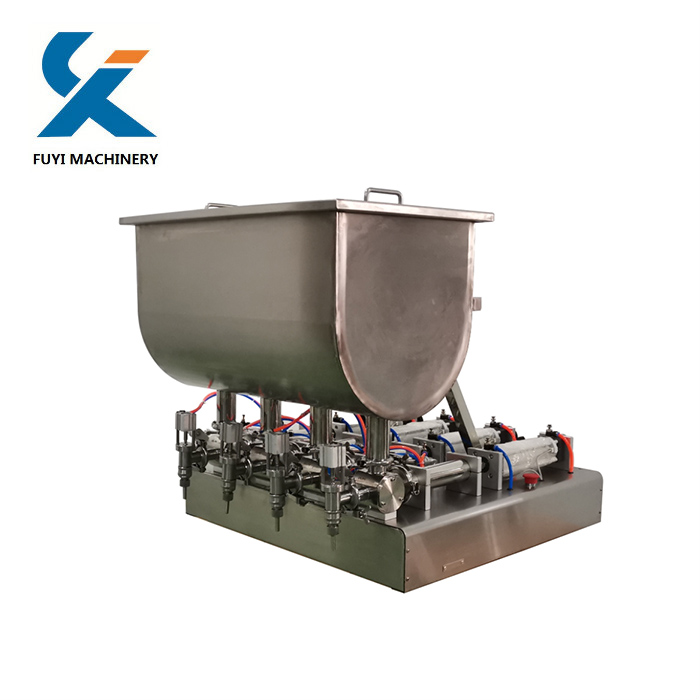

4 head sauce u shape filling machine
Brief introduction:
This is a sheer pneumatic filling machine for liquids, paste or other fluidity products. Simple design and easy to operate; It can fill various liquids, paste, such as shampoo, lotion,cream, honey, edible oil, perfume, venigar, wine, soybean sauce, ketchup, juice, etc.
Feature :
1.Reasonable design, compact shape, simple operation, partly adopt the Taiwan AirTac pneumatic components.
2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.
3. Filling volume, filling speed can be adjustable, filling accuracy is high.
3. Filling volume, filling speed can be adjustable, filling accuracy is high.
4. Adopt the anti-drip, Anti-drawing and lifting filling device.
5. Mixing and heating functions can be added as per your request.
Technical parameters:
|
No. of filling nozzles
|
1/2/3/4 (optional)
|
|
Filling Volume Range
|
5-100, 30-300, 50-5000, 100-1000, 250-2500, 300-3000, 500-5000ml (Optional)
|
|
Filling Speed
|
10-25Cans/min
|
|
Filling Accuracy
|
±0.1-1ml
|
|
Hopper Volume
|
60L-80L
|
|
Suitable bottle diameter
|
More than 4mm (Large caliber is customizable)
|
|
Pressure
|
0.4-0.9MPA
|

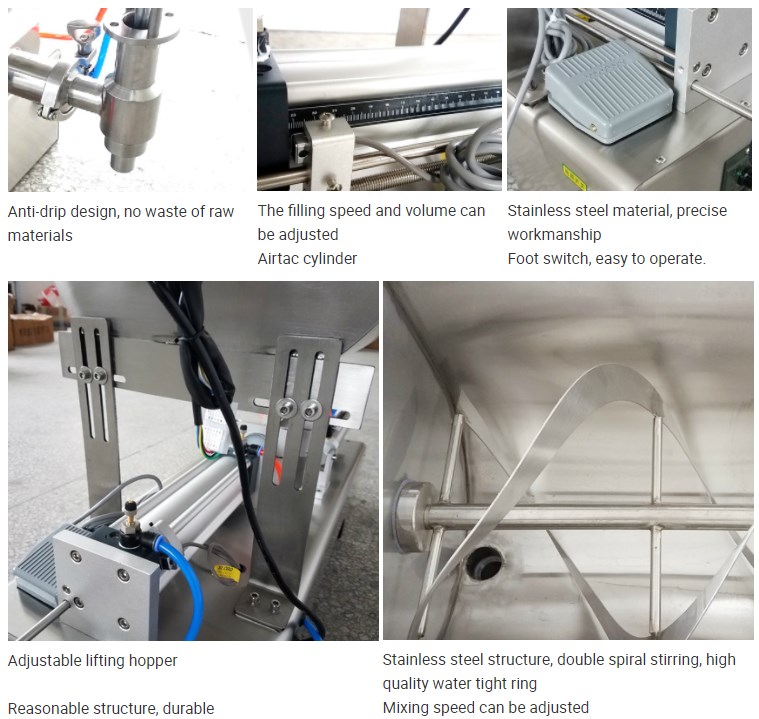

Machine details:
Application:
