5-50kg valve bags packing machine
Supplier: FUYI Machinery
Share to:
Details

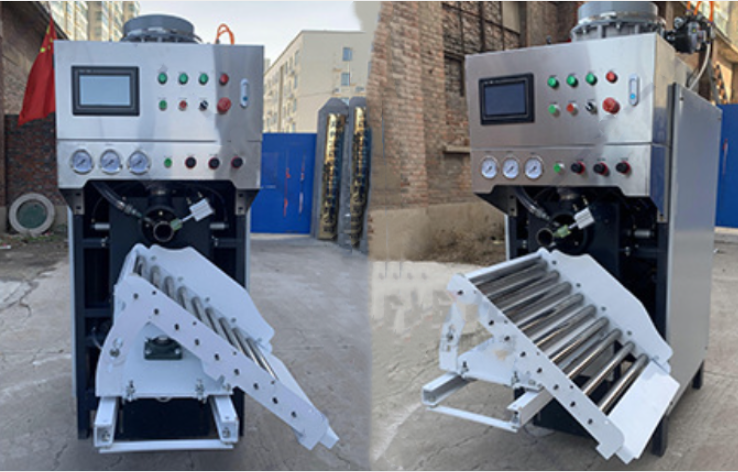

5kg 25kg 50kg tile adhesive valve bags packing machine
Application:
The pneumatic valve mouth packing machine is suitable for the packing of powder and granular materials with large proportion and good fluidity. It uses compressed air as power, and the compressed air makes the materials in the closed container fluidized through the atomizer, so as to realize the function of conveying materials. By controlling the flow area of the valve, the feeding amount of packaging materials can be controlled to achieve stable packaging accuracy and speed.
Main features:
The pneumatic valve mouth packing machine is suitable for the packing of powder and granular materials with large proportion and good fluidity. It uses compressed air as power, and the compressed air makes the materials in the closed container fluidized through the atomizer, so as to realize the function of conveying materials. By controlling the flow area of the valve, the feeding amount of packaging materials can be controlled to achieve stable packaging accuracy and speed.
Main features:
1. The built-in air storage tank shall be pre pressurized with sufficient air volume;
2. It does not block the fast coarse and fine flow control system of discharging, and the packaging accuracy is high;
3. External pneumatic butterfly valve feed switch, easy to operate;
4. The packaged granular materials are free from friction and damage, and are suitable for filling vitrified beads, river sand, drying sand and other materials;
5. The built-in storage bin is added with pneumatic arch breaking device to avoid arching of materials;
6. Automatic bag pushing function and automatic bag dropping function can be selected, as long as the bag is inserted manually.
7. It can be used with belt conveyor and has high working efficiency
2. It does not block the fast coarse and fine flow control system of discharging, and the packaging accuracy is high;
3. External pneumatic butterfly valve feed switch, easy to operate;
4. The packaged granular materials are free from friction and damage, and are suitable for filling vitrified beads, river sand, drying sand and other materials;
5. The built-in storage bin is added with pneumatic arch breaking device to avoid arching of materials;
6. Automatic bag pushing function and automatic bag dropping function can be selected, as long as the bag is inserted manually.
7. It can be used with belt conveyor and has high working efficiency
Technical parameter:
|
Model:
|
DL-50
|
|
Filling range:
|
5-50Kg
|
|
Filling speed：
|
6-8 bags/min
|
|
Single nozzle output:
|
5-10 tons / hour
|
|
Voltage:
|
380V/50hz/3phase
|
|
Power:
|
3KW
|
|
Material:
|
stainless steel control panel + painted carbon steel body
|
|
Inlet /outlet diameter:
|
φ300/φ51mm (without air extraction device)
φ300/φ63mm (with air extraction device)
|
|
Required air pressure:
|
0.4-0.60mpa 0.7m ³/ M
|
|
Machine size:
|
1100*670*1750mm
|
|
Machine weight:
|
180kg
|
