500kg 1000kg cement kaolin ton bags packing machine



Product Introduction:

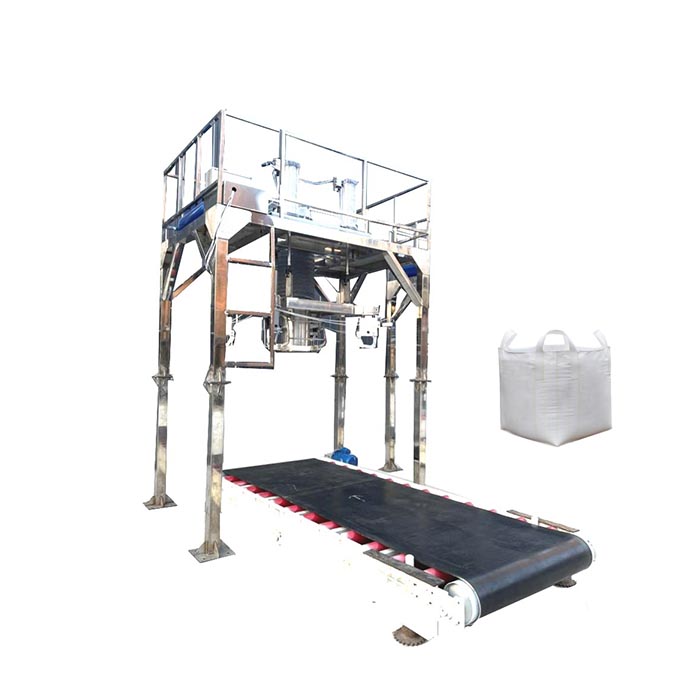

JN-D2000KG Automatic Weighing Ton Bag Packaging Machine is an intelligent electronic weighing packaging machine for filling powdered or flaky materials.

1. This machine uses fast and slow feeding to ensure packaging speed and improve accuracy. It also realizes automatic error compensation and correction, and is suitable for quantitative packaging of powdered and flaky materials.

2. The product is widely used in: food additives, chemical raw materials, mineral powder, new building materials and other industries.

3. Product material: The whole machine is made of 201 stainless steel

4. Easy installation: The scale body is directly connected to the storage bin, without the need to install auxiliary steel frames, and occupies a small space.

5. Working principle of the ton bag packaging machine:

It adopts manual bagging, controlled by an intelligent electronic control system, and adopts fast, medium and slow feeding speeds to ensure the quantitative accuracy of the system, uniform feeding, and automatically complete the feeding, weighing, bag clamping, and material discharge processes.

Machine features:

 *PLC intelligent control instrument is adopted, with high metering accuracy, stable performance, Chinese and English operation interface, and easy and fast operation. It has functions such as automatic setting of control parameters, automatic correction of drop, over-tolerance alarm, and self-diagnosis of faults.

*It adopts a non-metering barrel structure, with low height of the whole machine and small space occupation.

  *It adapts to the flow speed of various materials, with fast packaging speed and high precision, and prevents material blockage during feeding. With high-precision sensors and imported pneumatic actuators, it has high reliability and simple maintenance.

u*The whole machine is made of stainless steel, and the parts in contact with the material are smooth and wear-resistant, with good fluidity, high hygiene standards, corrosion resistance, and long service life of the equipment.

u * A dust removal system is reserved as standard, which can recycle and reuse the dust materials scattered during packaging.



Equipment environment requirements

1. Power supply: three-phase four-wire AC 380V

2. Power: 4kw

3. Clean compressed air: It is recommended to select an air compressor with an exhaust volume of 0.36 m3/min or more

4. Working environment: 0～＋40℃ Relative humidity ≤90%



 Technical parameters

Dimensions: 2470*1780*3000 (mm)

Bag clamping  method: double cylinder belt clamp MBB50-100Z

Accuracy: ±5‰

Packing speed: 15-30 bags/h

Feeding method: self-flowing type

Weighing range: 500-2000kg

Total weight of equipment: about 2500kg

Compressed air: 1m3/h

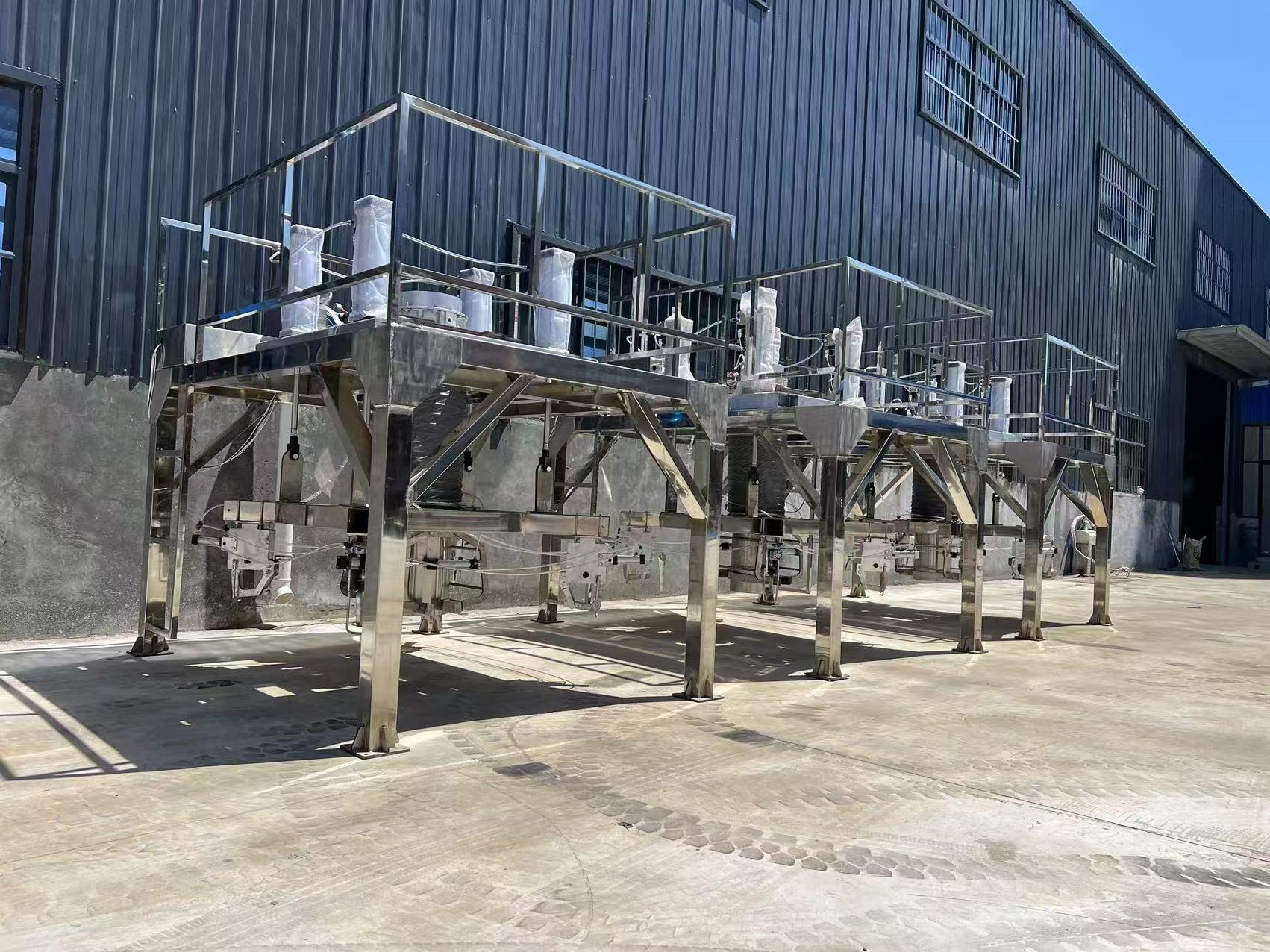

Machine details:
