50kg 100kg big bag particle rice fertilizer filling and packaging machine
Supplier: FUYI Machinery
Share to:
Details

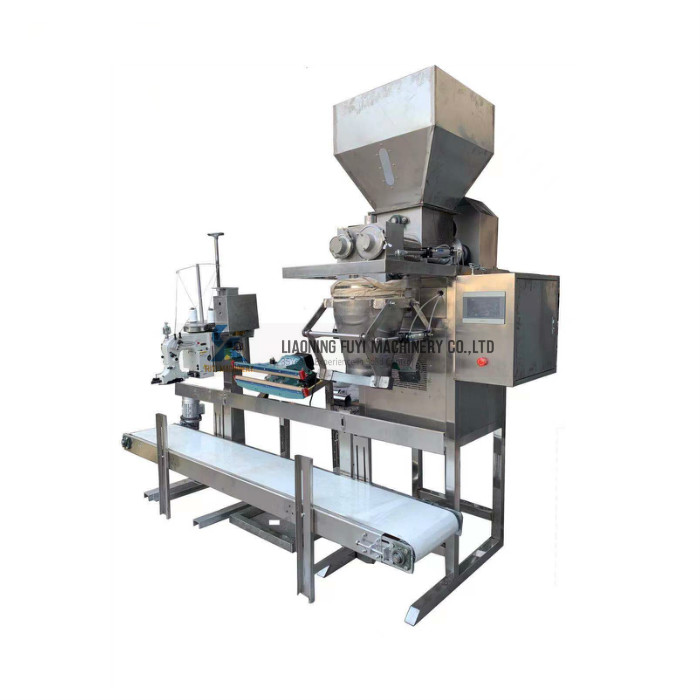

50kg 100kg big bag particle rice fertilizer filling and packaging machine
Brief introduction:
1. PLC, touch screen display;
2. The vibration base of electromagnet is cast iron;
3. The distance between the working material receiving port and the ground is 720mm.
This machine is suitable for dry seasoning, seeds, salt, feed, monosodium glutamate, dried fruit, sugar and other quantitative packaging.
Characteristic:
High precision, high speed, long life, good stability, manual bagging, automatic measurement.
It is not limited by the packaging container, and is suitable for various sizes of granular materials and the occasions where the packaging specifications often change. It is designed for vibration feeding and electronic scale weighing, which overcomes the shortcomings of measurement error caused by the change of material specific gravity.
The digital display is simple and intuitive, the packing specification is continuously adjustable, the working state changes arbitrarily, and the operation is very simple.
High precision, high speed, long life, good stability, manual bagging, automatic measurement.
It is not limited by the packaging container, and is suitable for various sizes of granular materials and the occasions where the packaging specifications often change. It is designed for vibration feeding and electronic scale weighing, which overcomes the shortcomings of measurement error caused by the change of material specific gravity.
The digital display is simple and intuitive, the packing specification is continuously adjustable, the working state changes arbitrarily, and the operation is very simple.
1. PLC, touch screen display;
2. The vibration base of electromagnet is cast iron;
3. The distance between the working material receiving port and the ground is 720mm.
4. Feeder can be equiped as per your request.
Technical specifications:
|
Model:
|
FY-KL
|
Weighing range:
|
20g-5000g
|
|
Power:
|
500W
|
Voltage:
|
220V/50HZ 380v/60HZ
|
|
Material:
|
SS304
|
Feeding mode:
|
Double vibrator, four stage feeding
|
|
Packaging speed:
|
400-1200 bags / hour
|
Measurement mode:
|
weighing type (industrial electronic scale)
|
|
Overall volume:
|
720*720* 2200mm
|
Weight:
|
200kg
|
Application:
