50kg blade wheel cement packing machine
Supplier: FUYI Machinery
Share to:
Details

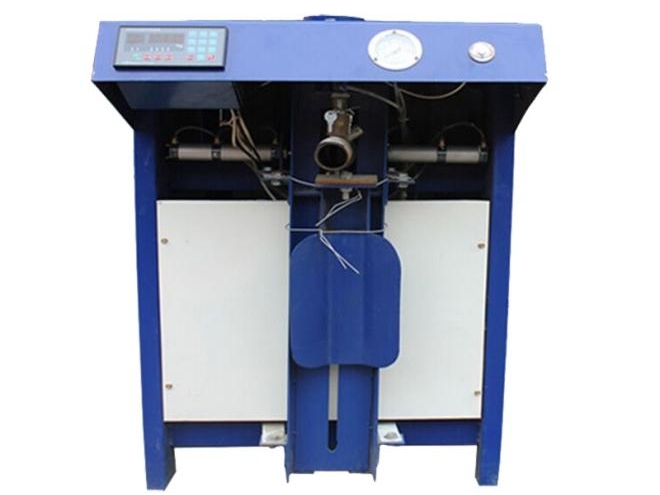

25kg cement valve bag packing machine
Application:
This blade wheel type valve mouth packing machine is suitable for the packing of construction or chemical powder with large proportion and good fluidity. Such as cement, gaolin, tile adhesive.
Product highlights:
1. The built-in air storage tank shall be pre pressurized with sufficient air volume;
2. It does not block the fast coarse and fine flow control system of discharging, and the packaging accuracy is high;
3. External pneumatic butterfly valve feed switch, easy to operate;
4. The built-in storage bin is added with pneumatic arch breaking device to avoid arching of materials;
6. Automatic bag pushing function and automatic bag dropping function can be selected, as long as the bag is inserted manually.
7. It can be used with belt conveyor and has high working efficiency.
Technical parameters:
Equipment size: 1100 * 670 * 1030mm
Packaging bag form: outer/inner valve pocket
Packaging range :5-50kg
Accuracy: ± 0.2kg
Taking 25kg packaging speed as an example (8-10 bags/min)
Production: 8-12 tons/hour
Control method: microcomputer control
Power: 3kw
Voltage: 220V 50HZ
Air source pressure: 0.6Mpa
Weight :155Kg
Discharge port diameter 55mm
Packaging bag form: outer/inner valve pocket
Packaging range :5-50kg
Accuracy: ± 0.2kg
Taking 25kg packaging speed as an example (8-10 bags/min)
Production: 8-12 tons/hour
Control method: microcomputer control
Power: 3kw
Voltage: 220V 50HZ
Air source pressure: 0.6Mpa
Weight :155Kg
Discharge port diameter 55mm
Application :
