6 head auto sesame sauce filling machine
Supplier: FUYI Machinery
Share to:
Details

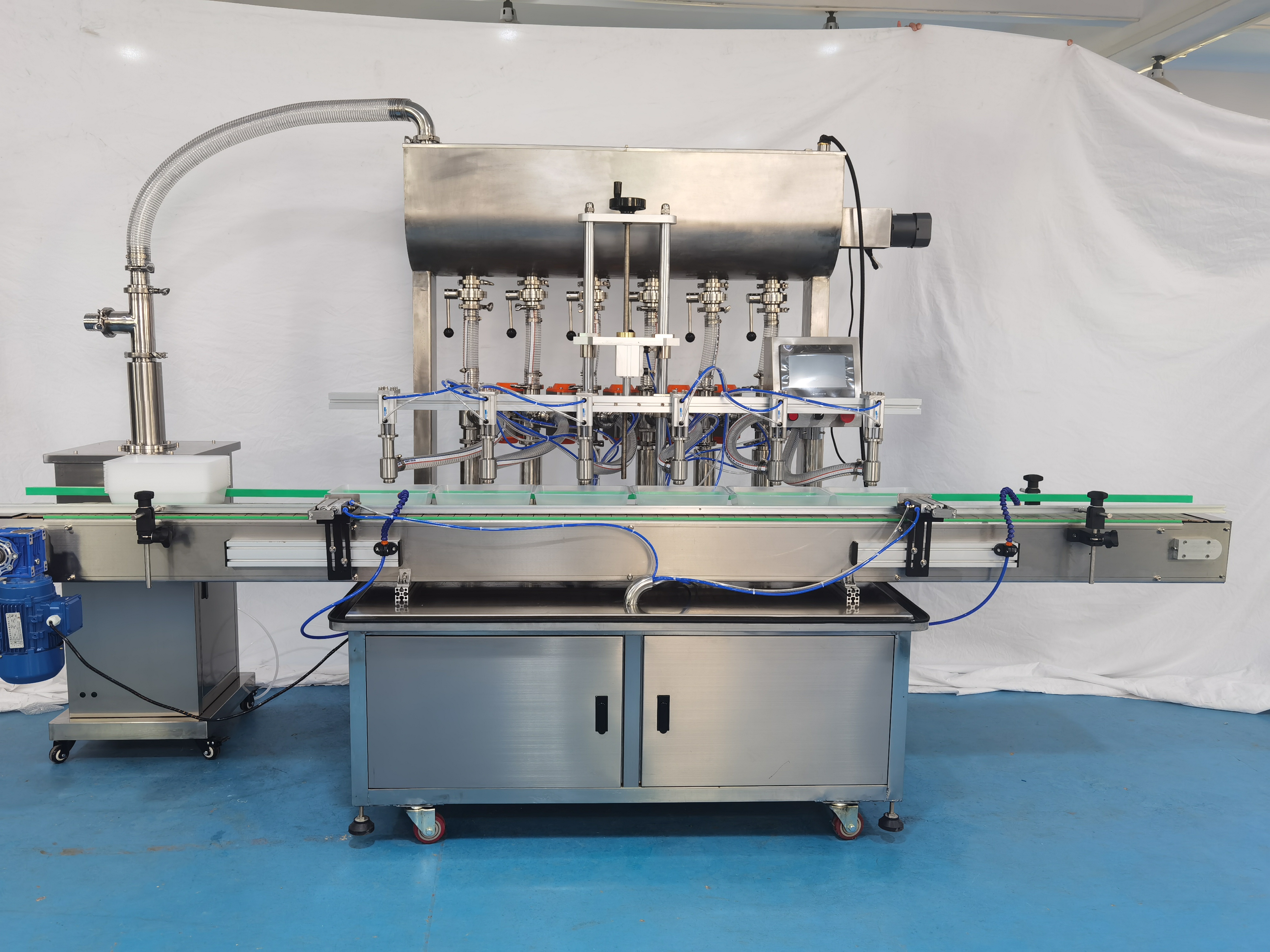

6 head SS304 automatic peanut/sesame sauce bottling filling machine
Brief introduction：
The machine uses a special three-way filling valve, which is suitable for filling liquid and cream products, especially for high-viscosity materials (such as thick sauce,
chili sauce, tomato sauce, seed coating agent, micro emulsion, suspension, etc.)
The machine adopts PLC programmable control, equipped with a touch screen human-machine interface system, and implements automatic bottle feeding, automatic filling and automatic bottle discharging. such as washing hand gel, hand sanitizer, liquor, soy sauce, vegetable oil, syrup, lubricating oil, liquid pesticides.
Main Features :
1. This equipment has simple structure and convenient operation.
2..It is an ideal domestic filling equipment for high-viscosity materials.
The machine uses a special three-way filling valve, which is suitable for filling liquid and cream products, especially for high-viscosity materials (such as thick sauce,
chili sauce, tomato sauce, seed coating agent, micro emulsion, suspension, etc.)
The machine adopts PLC programmable control, equipped with a touch screen human-machine interface system, and implements automatic bottle feeding, automatic filling and automatic bottle discharging. such as washing hand gel, hand sanitizer, liquor, soy sauce, vegetable oil, syrup, lubricating oil, liquid pesticides.
Main Features :
1. This equipment has simple structure and convenient operation.
2..It is an ideal domestic filling equipment for high-viscosity materials.
3. High-viscosity filling machine
4. Automatic filling machine
5. Quantitative filling machine
6.Equipped with anti-drip filling nozzles.
4. Automatic filling machine
5. Quantitative filling machine
6.Equipped with anti-drip filling nozzles.
7. It can be connected with other automatic equipment in production line, such as automatic bottle unscrambler, automatic cap unscrewing machine, labeling machine.
Technical parameters :
Technical parameters :
|
Model
|
FYG-6
|
|
Filling nozzles
|
6
|
|
Filling materials
|
Paste or other fluid materials
|
|
Filling speed
|
20-60 bottles/min
|
|
Voltage
|
220V AC /50HZ 1 phase (customized)
|
|
Filling range
|
1-150ML, 20-300ML , 100-1000ML (customized)
|
|
Filling accuracy
|
±1%
|
|
Power
|
3.5KW
|
|
Air pressure
|
0.4-0.6 Mpa
|
Notes：Please contact us for different models for different materials and specifications.
Application:
