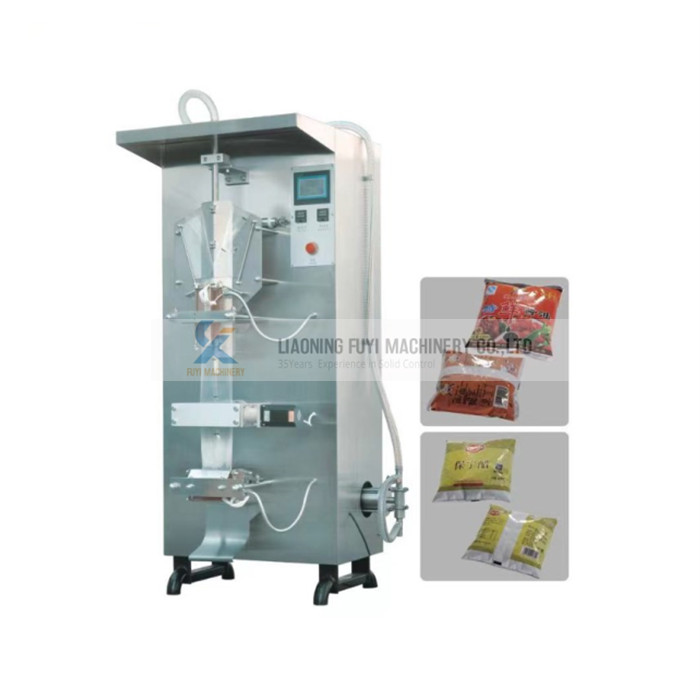

Automatic liquid water sachet packing machine-PLC type
Supplier: FUYI Machinery
Share to:
Details
Product features:
This kind of liquid packaging machine is suitable for packing food, medicine, chemical and other liquids. Such as milk, wine, water, soy milk, soy sauce, vinegar. It can complete bag making, metering, filling, sealing, cutting, counting and batch number printing automatically .
Packaging material film material -PE film:
Requirements: 4 cmm < = thickness < = 8 cmm, inner diameter of coil < = 75mm, outer diameter of coil < = 320mm.
Features:
1.Bag length and packaging quantity can be adjusted manually.
2.The operation is simple.
3.Designed for back-side sealing type, pillow style.
4.Optional accessories: rotor pump feeding, ribbon date printer, conveyor belt, weight detector can be installed as per your request.
5. PE film roll customization service is provided, please send us your design drawings in AI format.
Technical Parameter:
|
Model: |
FYSJ-500B |
FYSJ-1000B |
|
Filling range : |
50-500ml |
200-1000ml |
|
Power : |
220V /50HZ 1.5KW |
220V /50HZ 2.5KW |
|
Packing speed : |
33-37 pcs/min |
19-22 pcs/min |
|
Suitable bag length: |
40-150mm |
40-175ml |
|
Film width: |
100-320mm |
100-380mm |
|
Driven type: |
Pneumatic |
Mechanical |
|
Bag sealing type: |
Back-side sealing |
Back-side sealing |
|
Cursor positioning device: |
Yes |
No |
|
Size: |
500*700*1700mm |
500*700*1700mm |
|
Weight: |
275KG |
380KG |
|
Optional items: Rotor pump, Ribbon printer, take-away conveyors, weight checker.
|
||

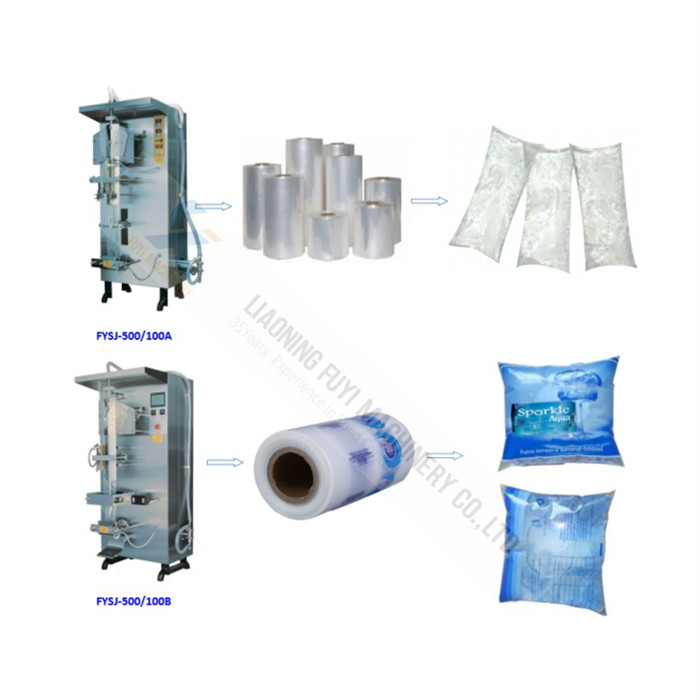

Packing samples:
