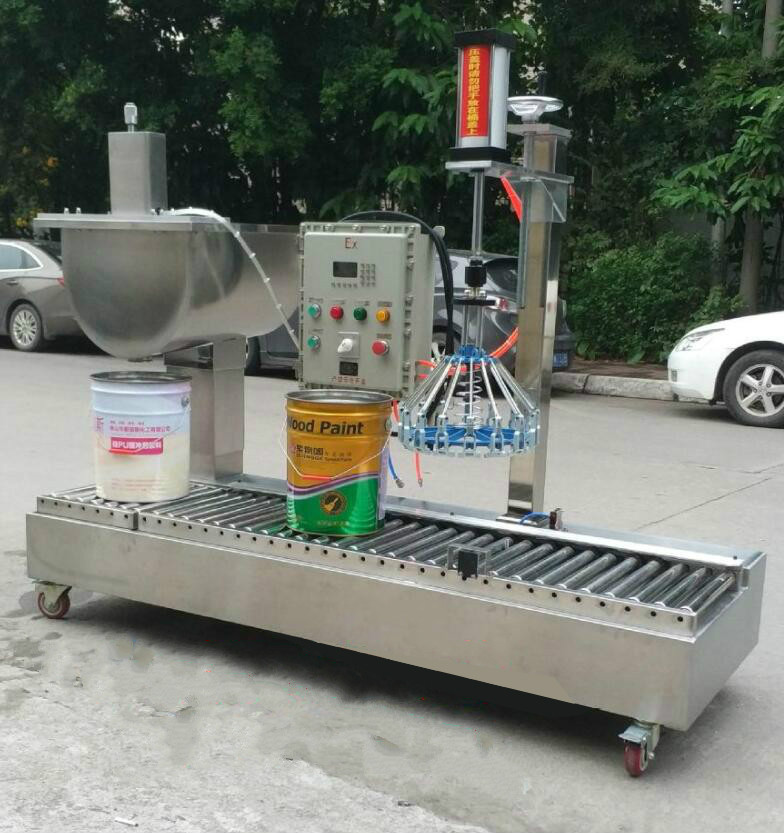

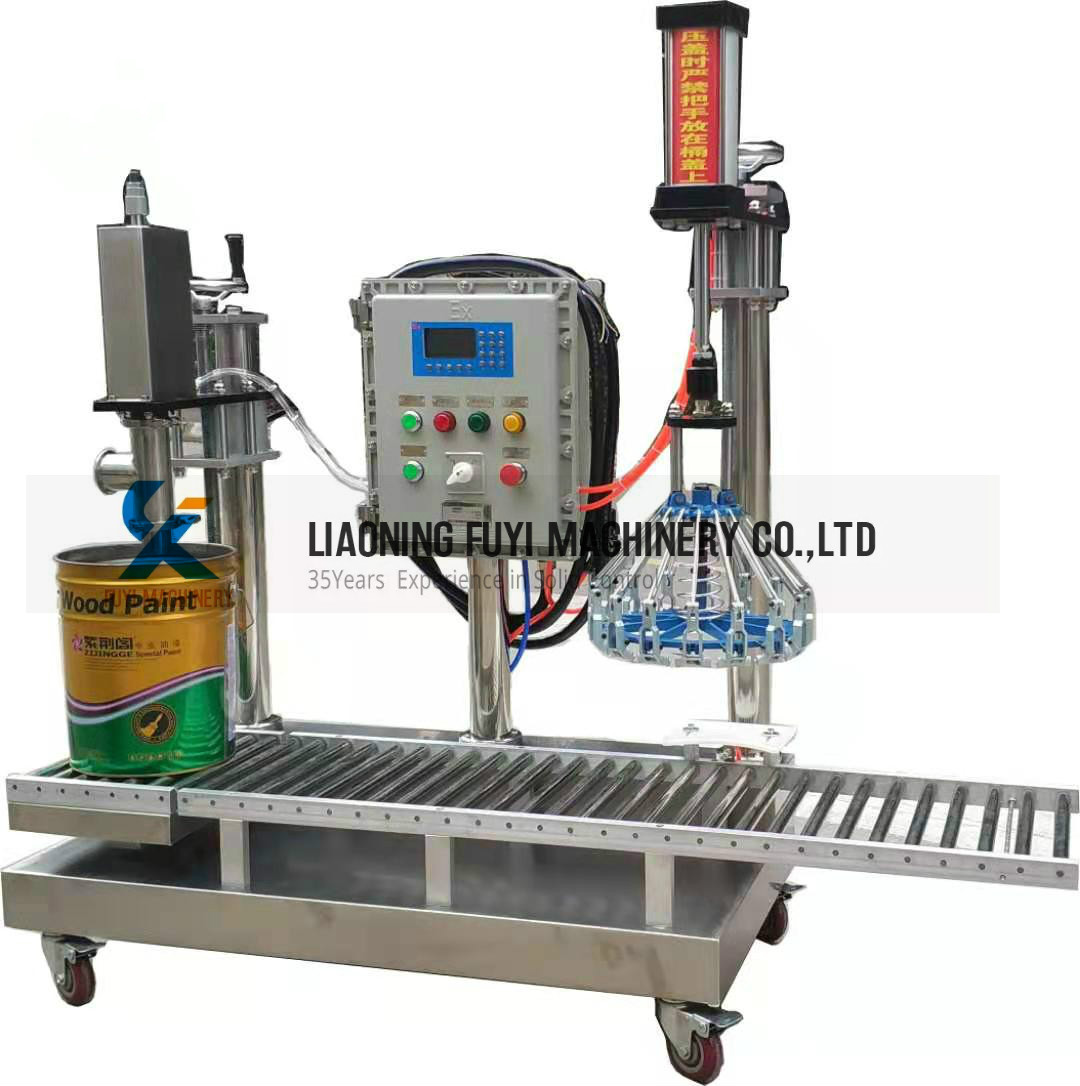

Automatic metering single head EPOXY paint filling machine
Supplier: FUYI Machinery
Share to:
Details
Automatic metering single head EPOXY paint filling machine
Product introduction:
Acid and alkali resistant filling machine is an explosion-proof filling machine suitable for petrochemical, pharmaceutical, food, military and other enterprises working environment. It adopts liquid level filling method and is suitable for a variety of liquid materials. The unique spray gun device is easy to operate, fast and accurate pouring, and ensures the leakage of residual liquid at the end of filling.
Feature:
It is manufactured according to QB / t2501-2000 gravity type automatic loading weighing instrument; The contact material part is made of PP and PTFE stainless steel, with strong corrosion resistance;
It is manufactured according to QB / t2501-2000 gravity type automatic loading weighing instrument; The contact material part is made of PP and PTFE stainless steel, with strong corrosion resistance;
■ the system is made of Japan 701, Omron relay and other high-end electrical accessories; The filling gun is designed for quick disassembly and assembly by hand, which is convenient for maintenance;
■ the additional pneumatic ball valve at the front section of the filling gun is automatically closed when it is not filled to prevent material leakage; The sealing system is made of polytetrafluoroethylene, which is solvent resistant, acid and alkali resistant, and has long service life;
■ the platform and drum of the scale are made of stainless steel with good corrosion resistance;
■ the filling gun adopts the plug-in filling method to avoid the material flying shallow on the barrel and affecting the outer packaging; The system adopts two-stage automatic filling mode of large and small materials to improve the accuracy;
after the single barrel filling value reaches, the filling gun will automatically lift up and wait for the next start-up;
Technical Parameter:
after the single barrel filling value reaches, the filling gun will automatically lift up and wait for the next start-up;
Technical Parameter:
■ maximum weighing capacity: 40kg
■ Minimum sensitivity: 0.005kg
■Filling error: ± 0.1% F.S
■ filling speed: About 120-150 B / h (depending on feed flow rate)
■ power supply: AC220 / 50 Hz
■ air source: 0.6MPa
■ air source: 0.6MPa
■ service temperature: - 10 ℃ - 50 ℃
■ relative humidity: < 95% (non condensing)
■ control mode: 2-gear control (with reflux control)
■ filling method: plug-in, under the liquid level
■ platform size: 400 × 400mm Gun head pipeline: stainless steel and tetrafluoroethylene
■Pipeline pressure: (0.2-0.6) MPa (related to material properties).
■ material interface: Dn40 threaded joint Gas source interface: the user provides G1 / 2 internal thread for quick
coupling connection
coupling connection
■ foundation conditions: for horizontal and solid concrete ground, the concrete thickness should be greater
than 10cm.
than 10cm.
