Avocado oil tubular bowl separator
Supplier: FUYI Machinery
Share to:
Details

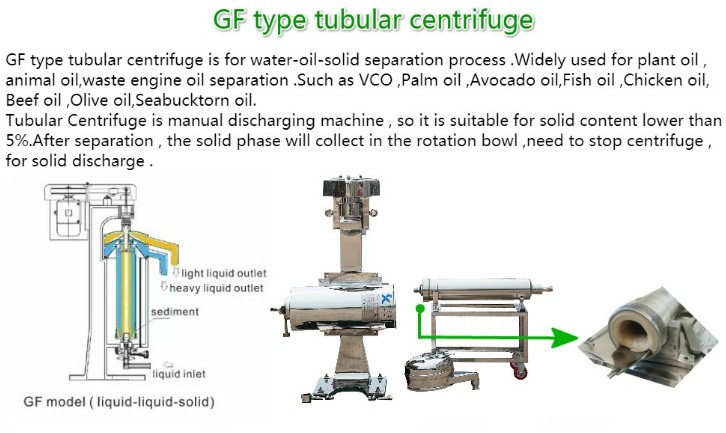

GF Avocado Oil Tubular Bowl Separator
Tubular Centrifuges are designed to separate low percentages (<2%) of suspended solids which are between 1 and 0.001 microns in size, and to separate two immiscible liquids of differing densities. Tubular Centrifuges operate at high speed, generating up to 20,000 gravities of centrifugal force, causing solids to collect inside the smooth bore of the stainless steel tube where they are easily recovered. Tubular Centrifuges are an excellent replacement for many traditional filter and membrane applications due to their high efficiency (virtually no product loss) and small footprint. Additionally, unlike traditional filters, they never require precoating or back-flushing and can never clog.
Technical parameters :
|
Model
|
GQ/GF 45
|
GQ/GF 75
|
GQ/GF 105
|
GQ/GF 125
|
GQ/GF 150
|
|
Bowl Dia mm
|
45
|
75
|
105
|
125
|
150
|
|
Rotation speed r/m
|
28000
|
19000
|
16300
|
15000
|
14000
|
|
Bowl volume L
|
0.4
|
2.2
|
6
|
8
|
10
|
|
Through capacity L/H
|
100
|
600
|
1200
|
1400
|
2500
|
|
Motor power KW
|
0.5
|
1.5
|
2.2
|
3
|
3
|
|
Weight kg
|
90
|
300
|
550
|
600
|
650
|
|
Outline size mm
|
500*420*760
|
760*450*1120
|
840*500*1600
|
900*550*1600
|
1020*600*1600
|
