Details

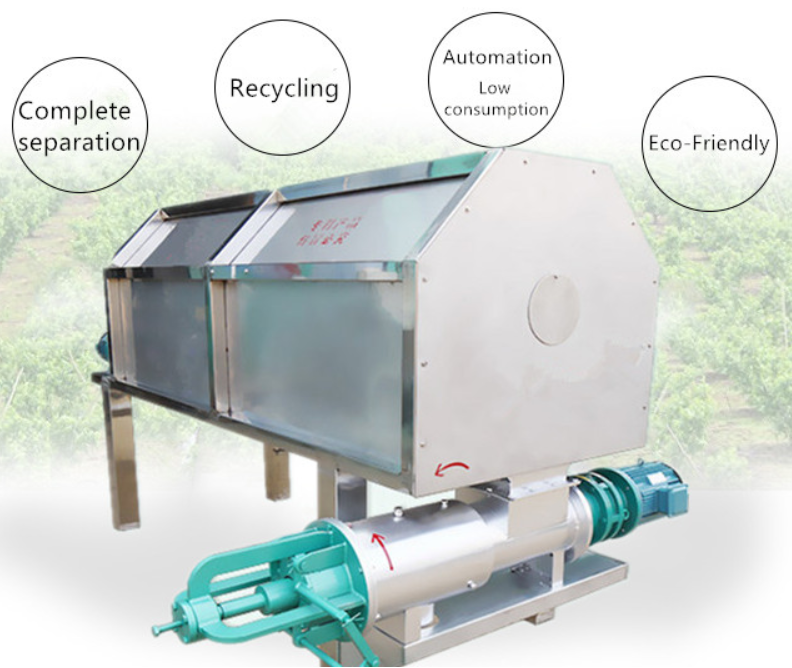

BLT-650 drum micro-filtration manure separator







Applications:



The micro filtration type solid-liquid separator is designed for treating the materials of low concentration and low slag-containing that can not be handled by the traditional solid-liquid separators and also for improving the processing efficiency.



 Working principle:



 Sewage is pumped to the main machine by a conveying pump, first through a micro filtration processor (optionally with a high-density screen), and the effluent enters a reservoir or a sewage treatment system. The solids enter the screw extruder through the screw pushing device, and once filtered through the screw extruder again, the dry material can be directly bagged. If the spiral extrusion water has a high solid content, it will return to the original sewage tank.



Technical parameters:



Model:	BLT-650	Moisture after separation:	around 20%
Capacity：	40-60 m3/h (raw manure)	Spiral auger:	auger blade thickness 6mm
Voltage:	220V or 380V/50hz	auger shaft	70mm
Main power:	5.5KW	Machine material:	SS304 stainless steel
Pump motor power:	4KW	Machine size：	2100*1900*1800mm
Screen mesh：	30-120 mesh spiral	Machine weight：	650kg







Accessories:



Control box*1



Fecal pump*1



Rib pipe (10m) *1



Hose (10 m) *2
