BYC Series Automatic Sugar Cooating Machine with Spray Gun
Supplier: FUYI Machinery
Share to:
Details

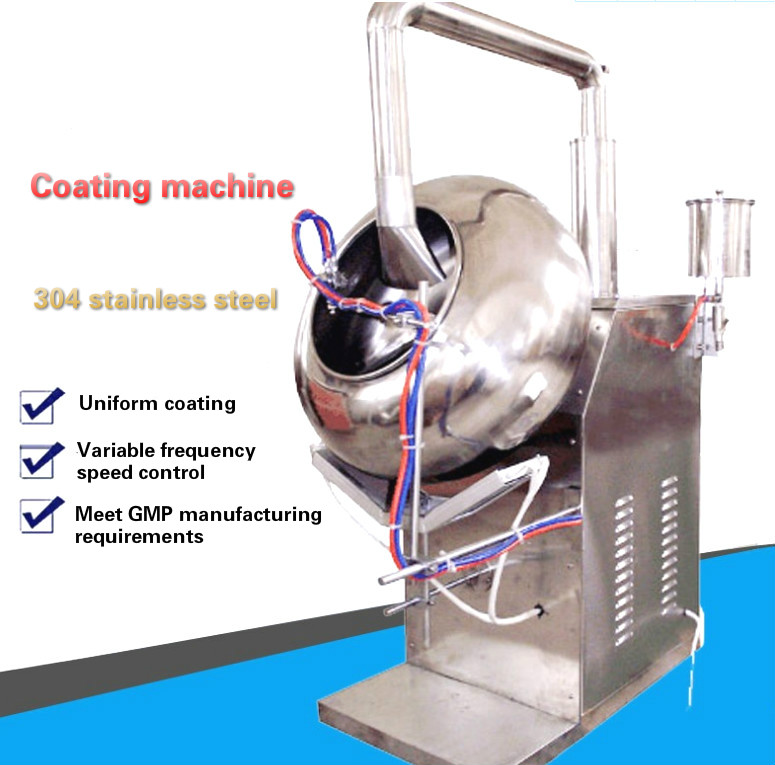

BYC Series Automatic Sugar Cooating Machine with Spray Gun
Introduction and Features :
This machine is mainly used for coating, glazing, granulation in the pharmacy trade; it is also suitable for ball shaped and granulator materials. The tablet will have bright and smooth surface after being coated and polished. It protects the tablet core from being oxidized and deteriorated, from being affected with damp or volatilizing. It also covers the peculiar smell of tablet core, makes it easy for distinguishing and dissolving in human stomach intestine system.
Technical parameters:
|
Model: |
BYC300 |
BYC400 |
BYC600 |
BYC800 |
BYC1000 |
BYC1200 |
|
Dia. of coating pan: |
300mm |
400mm |
600mm |
800mm |
1000mm |
1200mm |
|
Production capacity: |
1-3kg/time |
2-5kg/time |
8-15kg/time |
30-50kg/time |
50-70kg/time |
80-150kg/time |
|
Spray gun |
RA-C1 |
RA-C1 |
RA-C1 |
customized |
customized |
customized |
|
Liquid tank capacity: |
1L |
1L |
3L |
8L |
10L |
12L |
|
Motor speed: |
0-46r/min |
0-46r/min |
0-40r/min |
0-32r/min |
0-32r/min |
0-28r/min |
|
Main motor power: |
0.37kw |
0.37kw |
0.75kw |
1.1kw |
1.5kw |
2.2kw |
|
Blower fan power: |
60w |
60w |
100w |
200w |
200w |
370w |
|
Electric heat power: |
1kw |
1kw |
2kw |
3kw |
4kw |
6kw |
|
Net Weight: |
65kg |
75kg |
150kg |
280kg |
300kg |
500kg |
|
Machine size： |
81*45*95cm |
79*56*95cm |
customized |
customized |
customized |
customized |

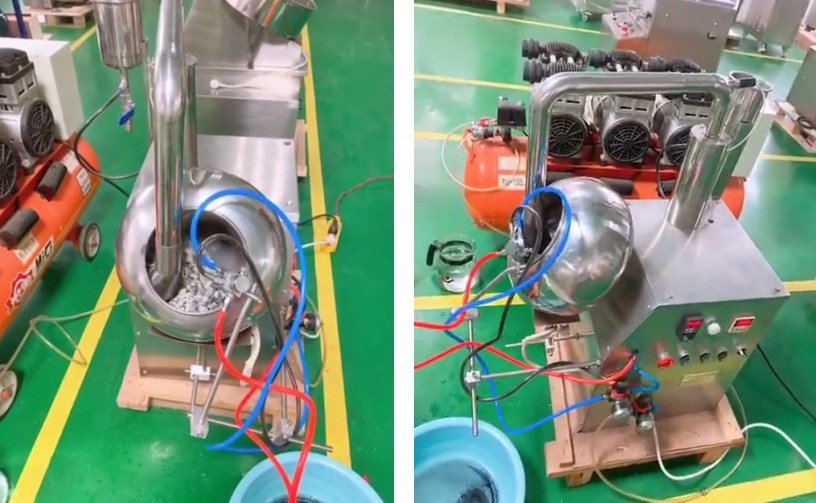

Machine details：
APPLICATION:
