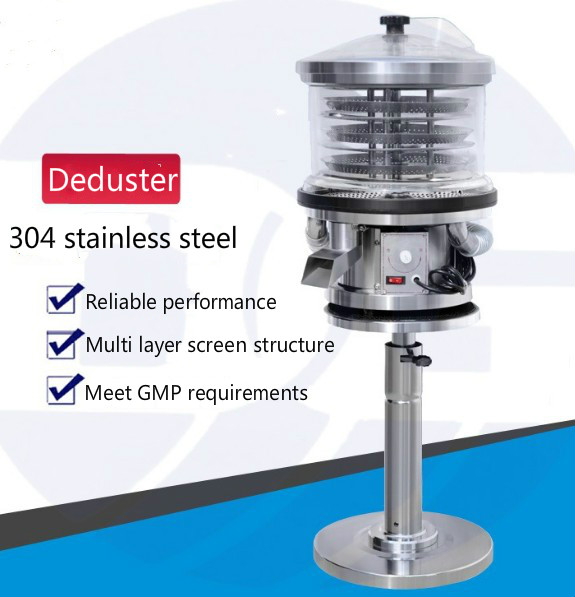

CFQ-310 Downhill Tablet Deduster Machine

Product Application:

The machine is pharmaceutical processing equipment that removes the fine surface dust from tablets through using vibratory effect. It is suitable for dedusting all types tablets.
Dedusting is achieved in three steps process with the throughput of approx. 550,000 tablets per hour.
First, the tablets are pushed by gentle vibration down a nine feet long perforated stainless steel tray to shake off the dust.
Then when the tablets reach the perforated bottom tray, the compressed air blows off any remaining dust.
Finally, the dust is removed by a vacuum dust collector. Vibration is easily adjustable using an Electronic Vibration Controller.

Main Features：

Double layers screen structure, separating tablet & powder.

V-shape design for the powder-screening disk, polished efficiently.

Speed and amplitude adjustable.

Easily operating and maintaining.

Operating reliably and low noise.

Technical parameters:

Machine details:
