CGN-208D Dual Loader Semi Automatic Capsule Filling Machine
Supplier: FUYI Machinery
Share to:
Details
CGN-208D Dual Loader Semi Automatic Capsule Filling Machine
Application:
The product is special capsule filling machine which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc. The machine is adopted programmable control system, touch panel operation, step-less transudation speed-shift, and electronic automatic counter. It can automatic complete the action of position, separation, filling, locking, etc. The dosage is accurate, and the operation is convenient. The overall machine is made of stainless steel.
The capsule filler can fill material in powder, pellet, or granule forms，can handle all capsule sizes from 000 to 5. A special design allows for changing mold for different size capsules within 15 minutes easily, simply, and precisely.
Features:
(1) High quality hard gelatin semi auto capsule filling machine is controlled by step-less frequency conversion and pneumatic device, and adopts electronic counter.
(2)High quality hard gelatin semi auto capsule filling machine can finish position, separation, filling, locking of capsule, and reduce the labor intensity and improve working efficiency.
(3) Meets GMP requirements.
Technical parameters:
|
Model |
CGN-208D |
|
Mould changing time |
5--10mins |
|
Production capacity |
25000-30000pcs/hour(depend on capsule size) |
|
Suitable capsule size |
000#、00L、00#,、0L#、0#、1#、2#、3#、4#、5#、 |
|
Filling type |
Pellet, powder without moisture, granules |
|
Power |
4.0kw |
|
Compressed air |
0.03m3/min 0.7Mpa |
|
Vacuum pump |
Pumping rate 40m3/h |
|
Overall dimension of machine (L*W*H) |
1140*700*1630mm |
|
Overall dimension of package (L*W*H) |
1720*870*1750 mm |
|
Air cargo outsourcing size |
1650*800*1450 mm |
|
Net weight |
380 kg |
|
Gross weight |
500kg |

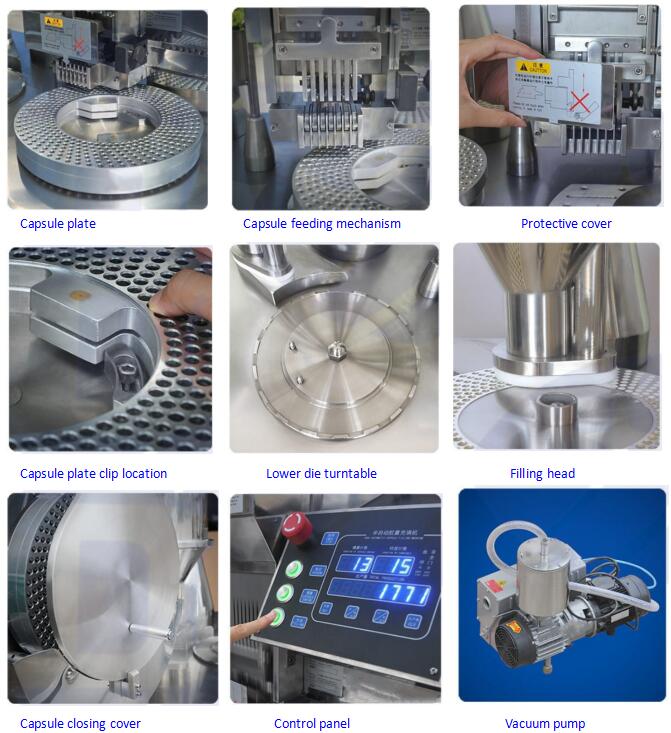

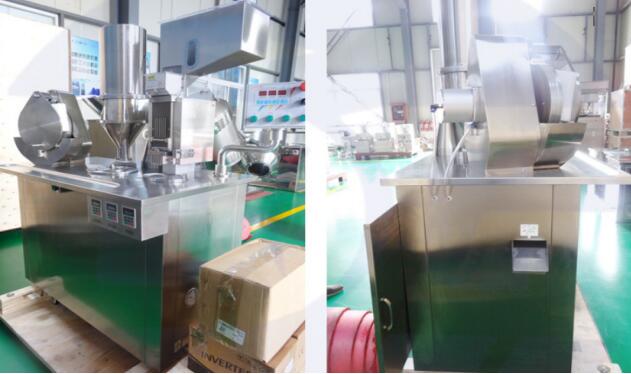

Detailed images:
Application:
