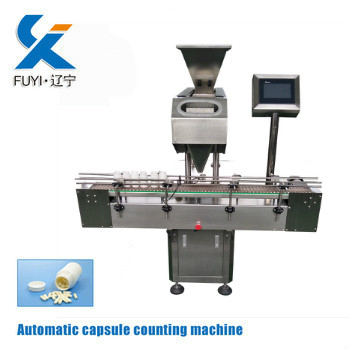

DG-4 Automatic Tablet / Capsule Counting Machine
Supplier: FUYI Machinery
Share to:
Details
DG-4 Automatic Tablet / Capsule Counting Machine
Brief introduction:
This machine adopts the most advanced technology of electronic counter. It can be used for counting and packing tablets (including special-shaped tablets), hard capsules, soft capsules (various forms of transparent and opaque) pills and other solid particles in the range of 3-12 mm.
Characteristic
1. High compatibility, high accuracy, wide range of applications, can be tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque) pills count bottles;
2. The applicability of the company's original anti high dust photoelectric sensing technology, in the case of high dust, can work steadily;
3. Vibration blanking, unique patented flip plate packing mechanism, no damage to drugs;
4. A high degree of intelligence, with no bottle number, fault self-test, and other detection, alarm and control functions;
5. Automatic operation, and upper and lower process intelligent joint control, good coordination, no special operation, save labor;
6. Small footprint, low cost;
7. Easy to change products and easy to disassemble without anytools, convenient and quick;
8. The structure is exquisite, there is no expensive wearing parts, maintenance costs are low;
9. Adopt man-machine interface control panel (Chu Moping), and control chip is imported.
Technical parameters:
|
Model |
DG-4 |
|
Suitable bottles |
10-500ml round or square bottle |
|
Production Capacity |
10～20 bottles/min (Depends on bottle specification, filling quantity and drug specification) |
|
Setting range |
1—9999 |
|
Voltage and power |
AC220V 50Hz 0.6kw |
|
Accuracy: |
≥ 99.5% |
|
Overall dimension(mm) |
1250*1450*1450mm |
|
Machine weight(kg) |
280kg
|
NOTES:
Other models for different capacity are DG-8, DG-12, DG-16,DG-18, DG-32, please contact me for details.

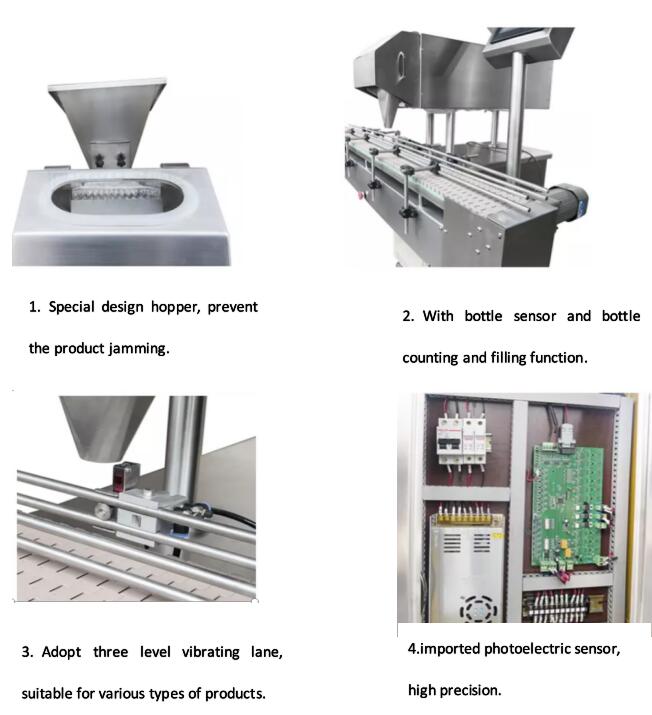

Machine details:
