DPP-140/150 Flat type aluminum plastic blister packing machine
Supplier: FUYI Machinery
Share to:
Details

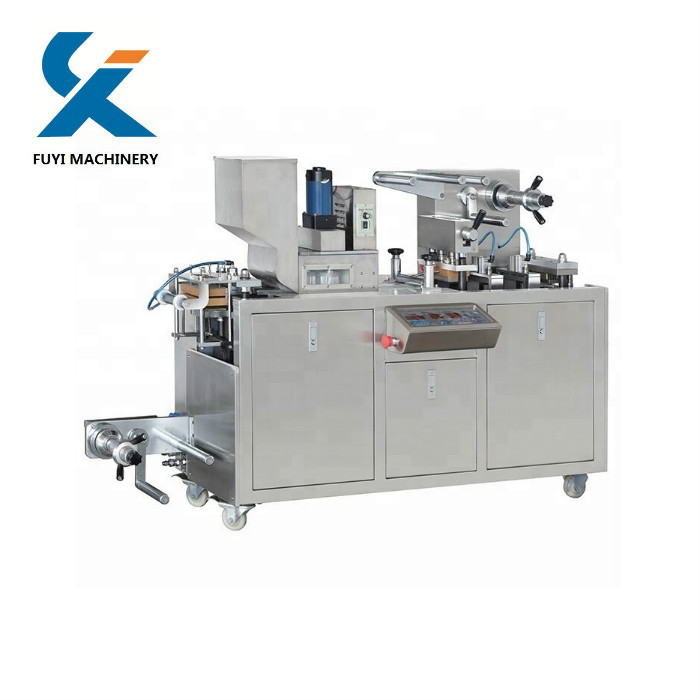

DPP-140/150 Flat type aluminum plastic blister packing machine
Brief introduction:
Blister packaging machine is specially designed for hospital dosage room, laboratory institute, health care product, middle-small pharmacy factory for Alu-PVC package of capsules, tablets, sugar coated tablets, candy ,food, electric parts etc.
Performance and features:
1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2.Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of mdedicines according to the user’s requirement.
3.lt adopts photoelectrical controlling system to make PVC, PTP,Aluminum/ Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4.It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
5.The machine is suitable for industries of foodstuff, medicine,medical instruments, hardware, electronics and etc for packing.
Technical parameters:
|
Model |
DPP-140 |
DPP-150 |
|
Punches frequency |
15-40(times/min) (hard aluminum 10-20times/min) |
10-35(times/min) |
|
Production capacity |
4800plates/hour |
1200-4200 plates/hour (two plates one time) |
|
Max. Forming area and depth |
130*100*26mm |
130*100(standard thickness≤15mm) Max. Depth 26mm |
|
Stroke range |
20-110mm（can be customized) |
50-120mm（can be customized) |
|
Standard plate size |
80*57（can be customized) |
80*57mm（can be customized) |
|
Clean compressed air |
0.6-0.8Mpa |
0.4-0.6Mpa |
|
Air compressed capacity |
--- |
≥0.3m3/min |
|
Total power supply |
380V/220V 50Hz 5.2KW |
380V 50Hz 3.8KW 1.5KW |
|
Main power |
1.5KW |
1.5KW |
|
PVC hard film |
0.15-0.5*140mm |
(0.15-0.5)*150mm |
|
PVC aluminum film |
0.02-0.035*140mm |
(0.02-0.035)*150mm |
|
Dialysis paper |
50-100g*140mm |
(0.02-0.035)*150mm |
|
Mould cooling |
Tap water or recycling water |
Tap water or recycling water |
|
Noise |
＜75dBA |
＜75dBA |
|
Overall dimension |
2300*650*1615mm |
2315*635*1405mm (L*W*H) |
|
Packaging dimension |
--- |
2500*800*1780mm (L*W*H) |
|
Net weight |
900kg |
820kg |
|
Gross weight |
--- |
890kg |

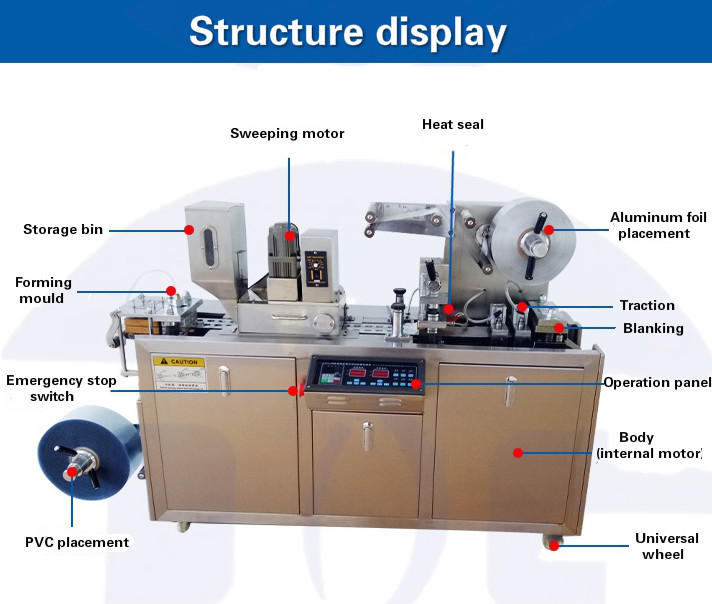

Machine details:
Applications:
