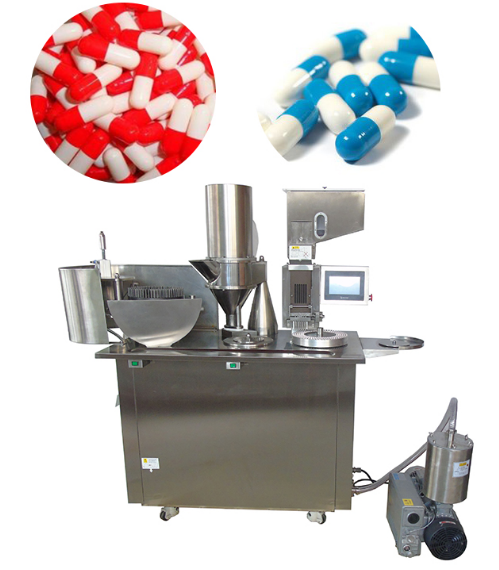

DXT-360P Semi-auto Capsule Filling Machine-PLC type

capsule filling machine



Brief introduction:

This machine is a kind of equipment mixing together with mechanical , electronic and gas technique, adopts microcomputer programmable controller, frequency control, touch control panel, can independently complete the process of capsule, sub-capsule filling, locking, etc., reducing labor intensity and improving production efficiency. The contact parts between the machine and the materials is stainless steel, which is in line with pharmaceutical hygiene and safety. The machine is sensitive, easy to operate, accurate filing dose, suitable for filling various capsules, and is an economical and practical equipment for filling capsule medicines in the pharmaceutical industry.

Main features:

(1) High quality hard gelatin semi auto capsule filling machine is controlled by step-less frequency conversion and pneumatic device, and adopts electronic counter.
(2)High quality hard gelatin semi auto capsule filling machine can finish position, separation, filling, locking of capsule, and reduce the labor intensity and improve working efficiency.
(3) Meets GMP requirements.

Technical parameters

Product Model

DXT-360P

Production Capacity

10000-25000grains/h

Filling Type

Pellet/power without moisture/small particles

Material

304 stainless steel

Applicable Capsule

000# 00L# 0L# 00#-5# Mechanical Standard Capsule

Compressed Air

0.03m³/Min  0.7Mpa

Vacuum Pump

40m³/h

Voltage

220V/380V 50Hz

Motor Power

4kW

Machine Dimensions

1140*700*1630mm

Machine Weight

430kg

Package Dimensions

1650*800*1750mm

Gross Weight

500kg

Detailed images:

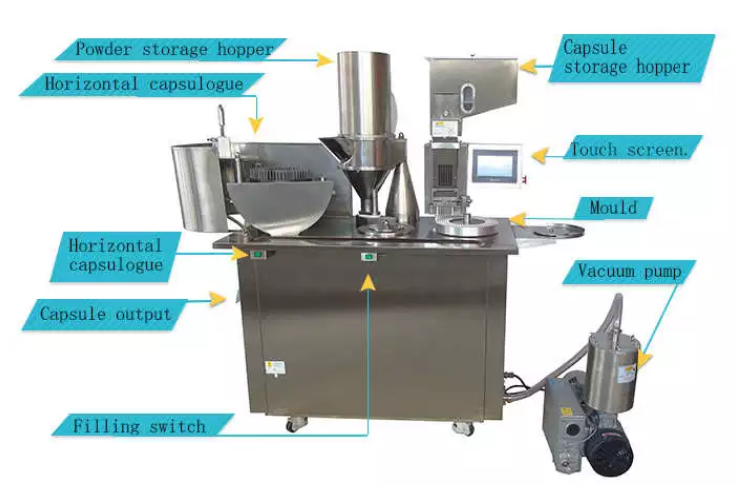

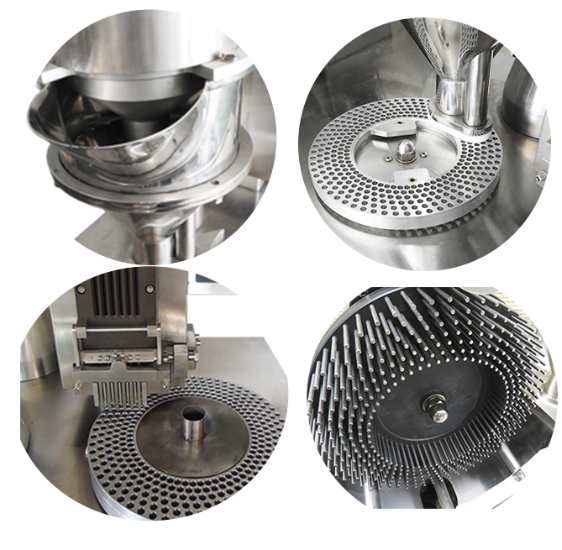

capsule filler structure

capsule filler size

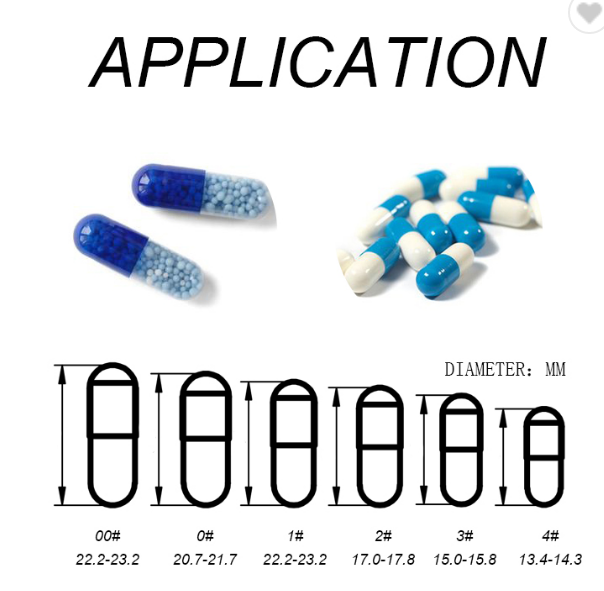

CAPSULE FILLER APPLICATION
