FL-7540 Film Covering Machine + BSE-6040 heat shrinker

Supplier: FUYI Machinery

Share to:

Details

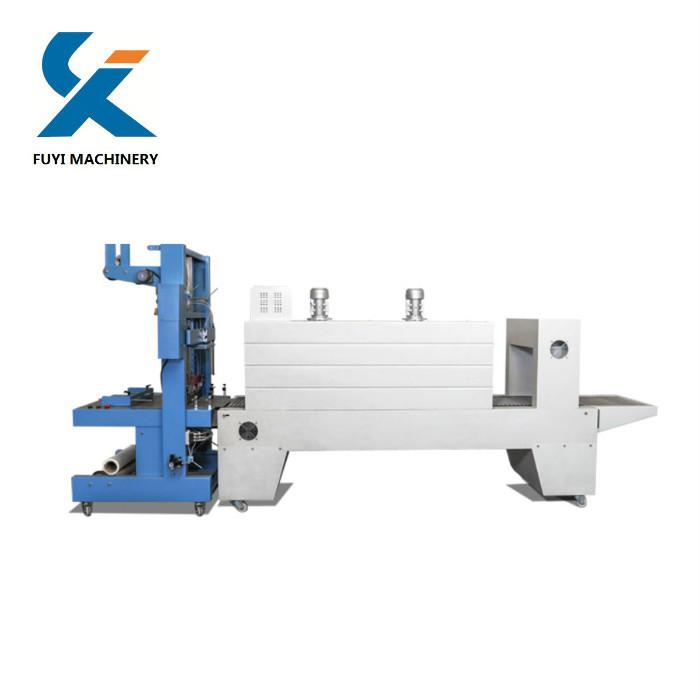

FL-7540 Automatic Plastic Bottle Film Covering Machine + BSE-6040 heat shrink packing machine

plastic bottle film cover machine



Application:

This whole set packaging machine has feeding, sealing, and matching with constant temperature PE shrink packing machine, so that the product achieves perfect packaging effect. This machine adopts German advanced technology, its main accessories are well-known foreign brands, the whole machine has stable performance and long service life.

 Product characteristics

1. It has the functions of conveying into bottles, arranging bottles, wrapping film, shrinking, cooling, setting and automatic process.

2. The thermostatic sealing of the film is firm.

3. Computer PLC control, reliable performance;

4. Automatic film feeding system, uniform film drawing;

5. Stepless speed regulation, adjustable speed and speed;

6. The spiral air circulation structure has beautiful shrinkage effect.

7. Fast and firm cooling by strong wind;

8. All stainless steel plate structure, durable;

9. It can be directly connected with filling production line.



Technical parameters :

FL-7540

Automatic Film Covering Machine



BSE-6040A

Heat shrink packaging machine

Power Supply:

220-240v  50/60HZ

Power Supply:

380V/50/60HZ

Motor power:

1.5KW

Motor power:

24 KW

Max packing size:

500*500*380mm

Tunnel size:

1800*600*400mm

Conveying table height:

800mm+50mm(adjustable)

Conveying speed:

0-15m/min

Shrink film:

PE/POF/PVC/PP

Conveying loading weight:

35kg

Packing speed:

8pcs/min

Temperature range:

0-300

Sealing cutting time:

0.5-1.5S

Shrink film:

PE/PVC/POF

Max product weight:

25kg

Machine size:

2800*850*1750mm

Film width/Thickness:

80-750mm/0.03-0.25mm

Machine weight

340kg

Machine size:

925*1040*1920mm





Machine weight

350kg

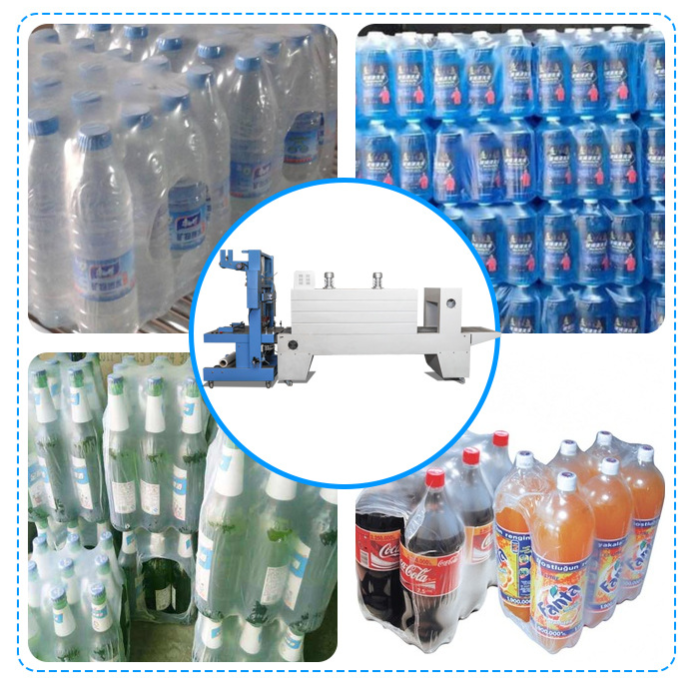

Application:

packaged bottles packing machine
