FRD-1000 vertical type bag sealing machine with ink print dater
Supplier: FUYI Machinery
Share to:
Details

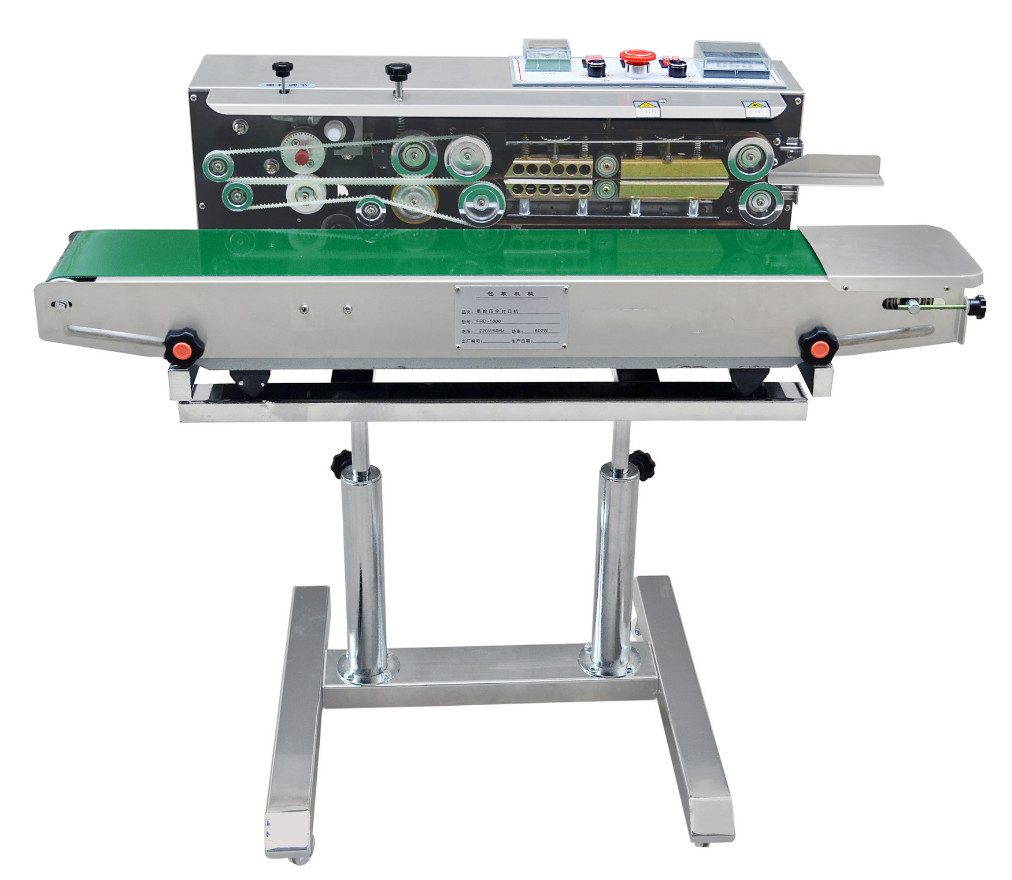

FRD-1000 vertical bag sealing machine with ink print dater
Introduction:
FRM-1000 Series solid-ink coding continuous sealer, is suitable for sealing aluminum foil bags, plastic bags, composite bags and plastic film bags. It has some functions such as adjustable step-less speed, constant temperature controlling and adjustable temperature, the head of the machine's height can be adjusted and tilted forward 20 angle, so it is widely used in many fields. The machine can print the desired designs simultaneously with sealing. With the characters clear and conspicuous. The colors are selectable and uneasy to decay and unchangeable, instant printing and instant dry, with strong adhesion. It can print Remodel two lines of NO.4 Characters (PT18). Three lines of No.5 characters (PT10.5).
Main features:
- Automatic continuous sealing
- Replaceable font
- Electronic temperature control system
- Widely used
Technical date:
|
Power supply |
220V/50HZ 1Phase |
|
Power consumption |
600W |
|
Body material |
Stainless steel or painted (optional) |
|
Print types |
Ink-coding |
|
Sealing speed |
13m/min |
|
Sealing width |
6-12mm |
|
Sealing film thickness |
0.02-0.80mm |
|
Temperature range |
0-300℃ |
|
Printing letters |
2 lines 30 letters with symbol (English letters need customized) |
|
Conveyor loading |
≤8kg |
|
Machine size |
930*400*300mm |
|
Machine weight |
30kg |
|
Shipping list |
Mainframe × 1 power cord × 1 high temperature belt × 8 toothed belt × 2 screwdriver (±) × 1 safety tube × 2 particle × 1 rubber ring × 1 ink cartridge × 1 toothed belt × 2 carbon brush × 2 |

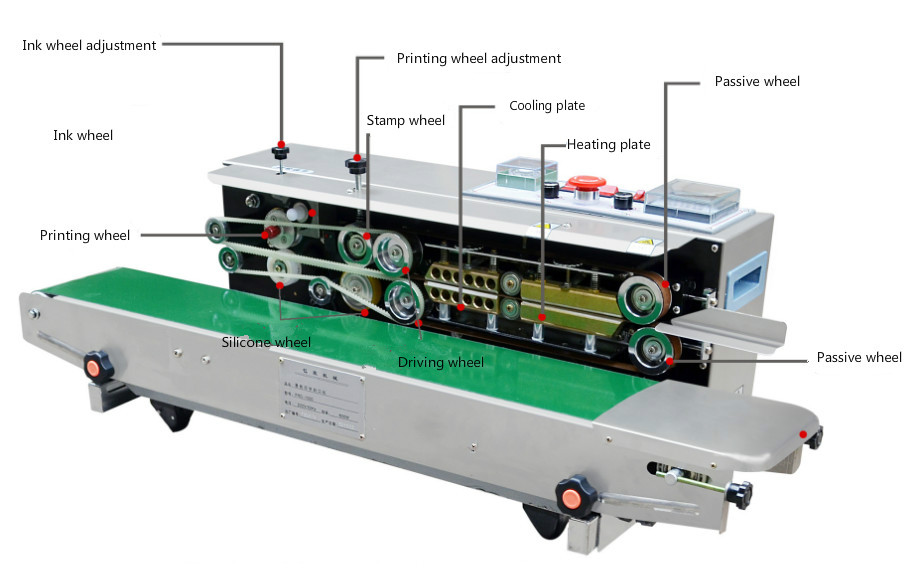

Machine details:
