FY-800 SEMI-AUTO BOTTLE ARRANGE MACHINE
Supplier: FUYI Machinery
Share to:
Details
FY-800 SEMI-AUTO BOTTLE ARRANGE MACHINE
Brief introduction:
It is suitable for automatic transmission of round bottles and square bottles, such as conveyor belt connected to labeling machine, filling machine and capping machine, which can automatically convey bottles to improve efficiency, and can be used in the middle connection of pipeline as a buffer platform to shorten the length of conveyor belt. The range of bottles can be adjusted freely. The conveying speed is 30-200 bottles per minute, which is convenient for production arrangement.
Characteristic:
1.Suitable for heavy duty packagers.
2.Advanced steel wheel printing technology
3.Adjustable working speed controls to accommodate high-efficiency production line.
4.Adjustable height of delivery table.
5.Other special requirements and functions can be customized.
Product parameters:
|
Model: |
FY-800 |
|
Applicable products： |
Plastic, glass bottles( must be round shape) |
|
Bottle diameter: |
20mm～100mm |
|
Bottle height: |
30mm～120mm |
|
Round tray diameter: |
80cm (100cm can be customized) |
|
Rotating speed: |
10 rpm |
|
Machine height: |
80-90cm( adjustable) |
|
Voltage |
220V/50HZ or 110V /60HZ |
|
Power |
120W |
|
Size |
850*850*1500mm |
|
Weight |
about 120 kg |

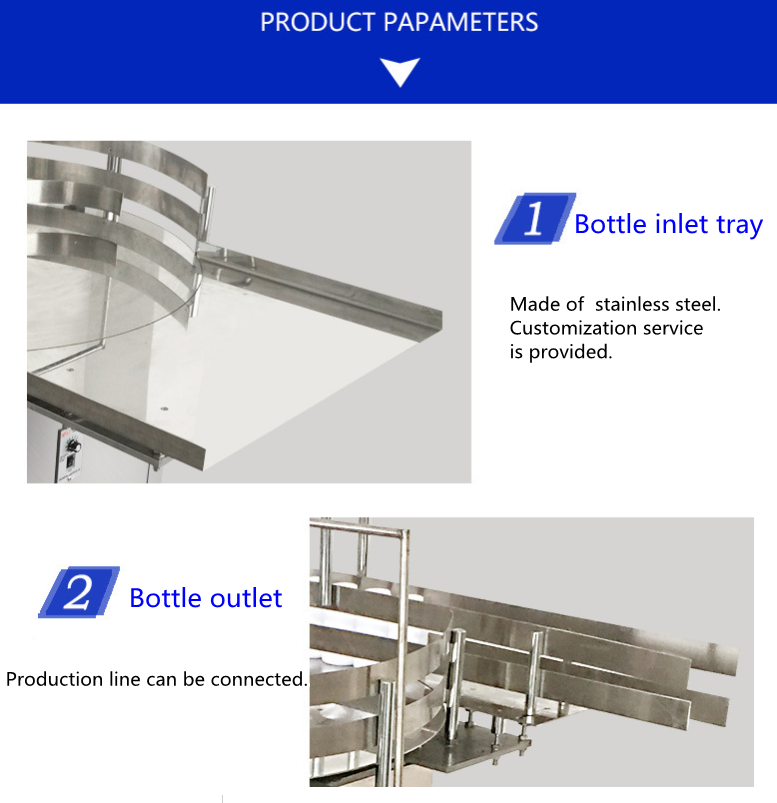

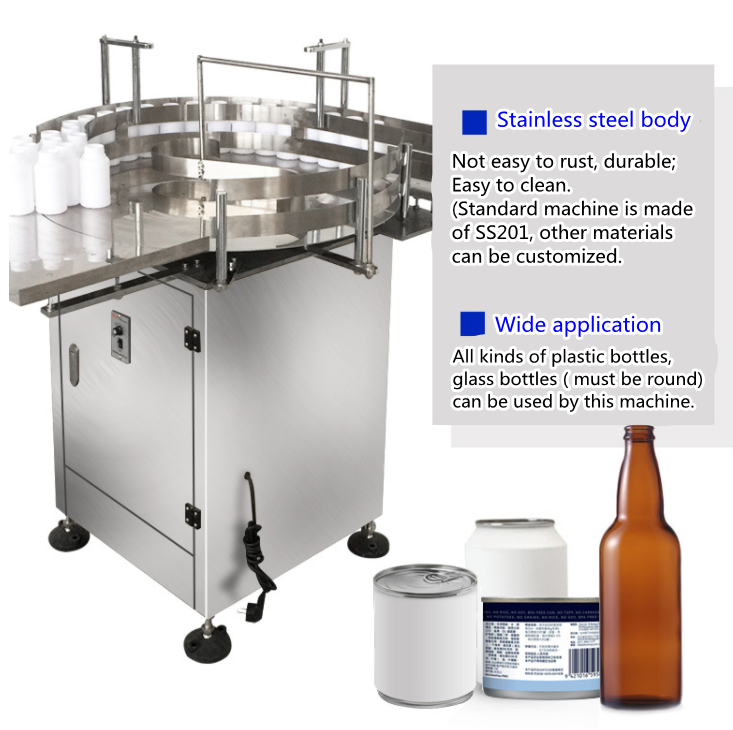

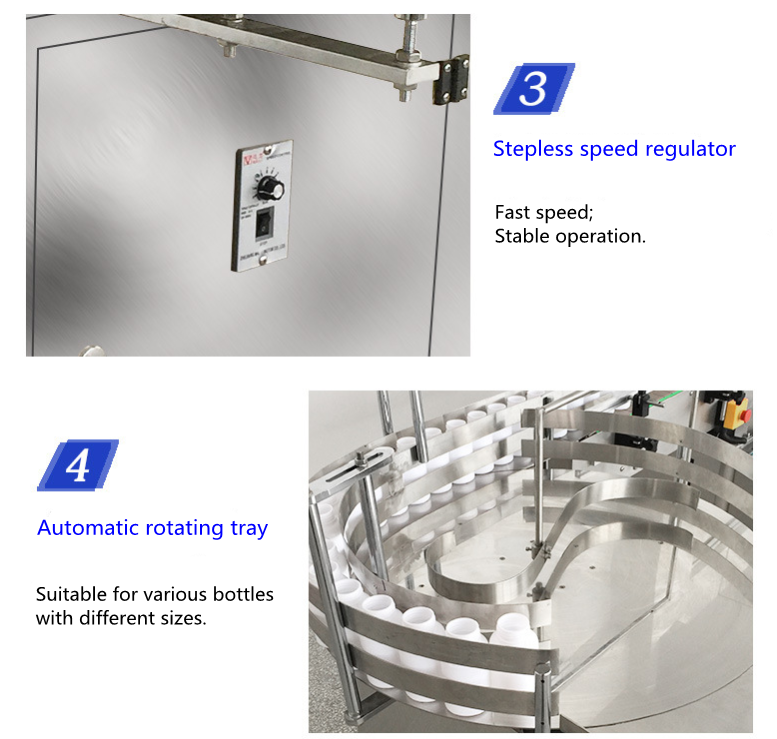

Machine details:
