FYHD-1000 semi-auto vertical Water circulation heating paste filling machine with mixer
Supplier: FUYI Machinery
Share to:
Details
FYHD-1000 semi-auto vertical Water circulation heating paste filling machine with mixer
Brief introduction：
This equipment is mainly suitable for filling high-thick paste materials or paste, liquid, soup with small particles. Such asbubble tea, popping boba soup, chili sauce, cream, wax, and etc.
Main features:
1.40L stainless steel anti-drip hopper, with self-mixing function, even filling.
2.With water heating device for the parts in contact with materials,can be heated between 1℃-100℃.
3.The hopper and cylinder can be disassembled for easy cleaning. Stirring paddle
4.High-end custom large scale high power cylinders, more powerful, more efficient, anti-rust.
Technical parameters :
|
Model：
|
FYHD-1000
|
|
Filling range:
|
100-1000ml （can be customized)
|
|
Heating power:
|
5KW
|
|
Working mode:
|
Automatic / Manual
|
|
Material:
|
SS304L (SS316 can be customized)
|
|
Air press:
|
0.4-0.6Mpa
|
|
Filling accuracy:
|
±1%
|
|
Filling speed:
|
20-50bottles/min
|
|
Suitable bottle diameter:
|
≧4（mm）
|
|
Suitable bottle height:
|
≧10（mm）
|
|
Voltage:
|
220V/50HZ(customize)
|
|
Dynamic mode:
|
Pneumatic ( air compressor )
|
|
Machine size:
|
45*45*165cm
|
|
Machine weight:
|
65kg
|
|
Note: air compressor need provided by your own side or order .
|
|

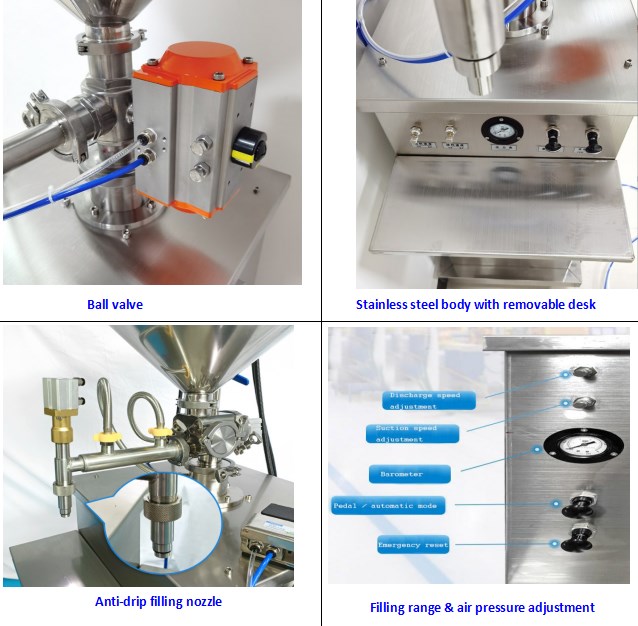

Machine details:
Applicaton:
