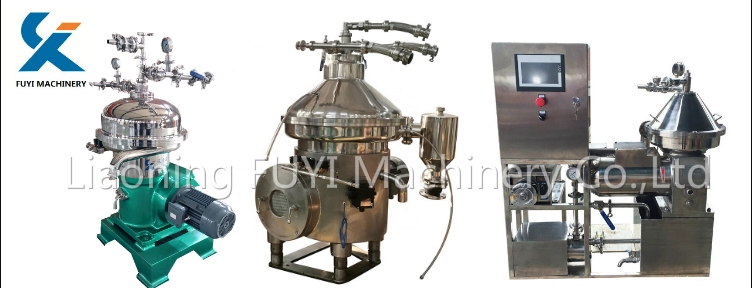

Fish Oil Disc Centrifuge

Disc centrifuge which have higher rotation speeds, are being used to separate the mixtures of liquid-liquid and liquid-solid substances having different densities. The liquid or solid particles having the highest density are accumulated on the outer circumference of the separator drum, due to the high centrifuge force in the separators, while the other one having lower density remains in the center. Thereafter, both of those two phase or particles are discharged from different outlets.

Feature:
• Full automation possible with PLC automatic control panel.
• Centrifugal separation requiring no filter media.
• High reliability drive train system backed by delivery of over 1,000 units a year.
• Bowl design with superior separation performance and with good response to discharge loads.
• Pilot valve regulates total/partial discharge of solids.
• Super partial discharger (option) minimizes liquid loss and maximizes thickening of solid
• fraction for discharge.
• Vibration-proof design realizes long working life.
• Full automation possible with PLC automatic control panel


Application Scope:

• Vegetable oil: Coconut oil, colza oil, cotton seed oil, corn oil, palm oil, soybean oil, peanut oil, rice oil,                                 sesame oil, safflower oil,
• Animal oil: Fish oil and other animal oil.
• Mineral oil: Fuel oil, diesel oil, lubrication oil, transformer oil and waste oils.

DISC CENTRIFUGE

Technical parameters :

Model
Bowl Speed(rpm)
Capacity (Per Hour)
Running Load(Watts)
Width
Front to Back
Height
250
7300
500
4
850
850
1200
400
7038
1500
7.5
1500
1100
1550
500
6600
5000
15.5
1772
1500
1855
550
6200
8000
18.5
1970
1560
1970
