Heating cream filling machine
Supplier: FUYI Machinery
Share to:
Details

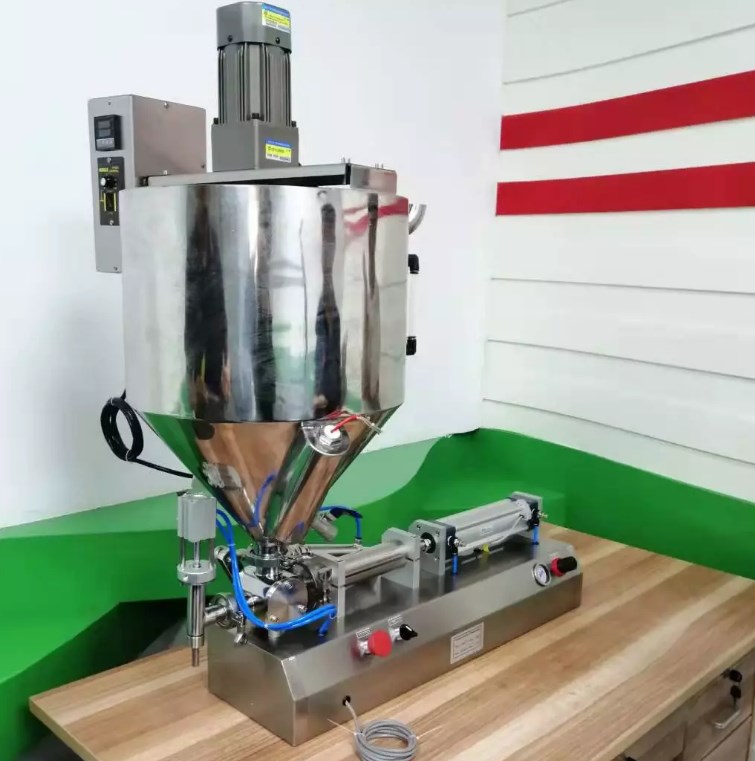

5-100ml v shape single-head semi-automatic paste filling machine with heater and stirrer
Technical parameters:
|
Model
|
G1WG
|
|
Material
|
stainless steel 304
|
|
Filling range(ml)
|
5-100ml/10-300ml/250-2500ml/300-2500ml, 500-5000ml/1000-5000ml
|
|
Filling accuracy
|
±1 %
|
|
Filling seed
|
1-30 bottles /min
|
|
Power
|
AC220V/50Hz
|
|
Air supply
|
400L/min 0.6Mpa
|
|
Hopper capacity
|
30L (customized)
|
|
Machine size
|
500*600*500mm（L*W*H)
|
|
Weight
|
24kg(depend on filling volume)
|
Brief introduction:
G1WG series semi-auto pneumatic filling machine with mixer and stirrer is an ideal equipment for filling high viscous fluid, honey, creams or other liquids in the fields of daily chemistry, food and beverage, pharmacy, chemistry and so on.
Main features:
Main features:
1. This machine is pneumatically-driven structure, easy to operate, remove and clean and accurate quantification.
2. The shell and all the parts connected with filling materials are made of stainless steel (SS304 is used for standard ones and SS316 can also be customized).
3. The inner walls of main parts are mirror-polished, which conforms to the requirements of GMP certification. Therefore, it is rustless and corrosion resistant.
4. The users can adjust the filling volume and speed within the type limitation as required.
5. The 2 filling heads can work at the same time, or work separately.
6. There's a switch for manual and auto, you can set the interval time to let it fill automatically or use the pedal switch to control each filling time.
2. The shell and all the parts connected with filling materials are made of stainless steel (SS304 is used for standard ones and SS316 can also be customized).
3. The inner walls of main parts are mirror-polished, which conforms to the requirements of GMP certification. Therefore, it is rustless and corrosion resistant.
4. The users can adjust the filling volume and speed within the type limitation as required.
5. The 2 filling heads can work at the same time, or work separately.
6. There's a switch for manual and auto, you can set the interval time to let it fill automatically or use the pedal switch to control each filling time.

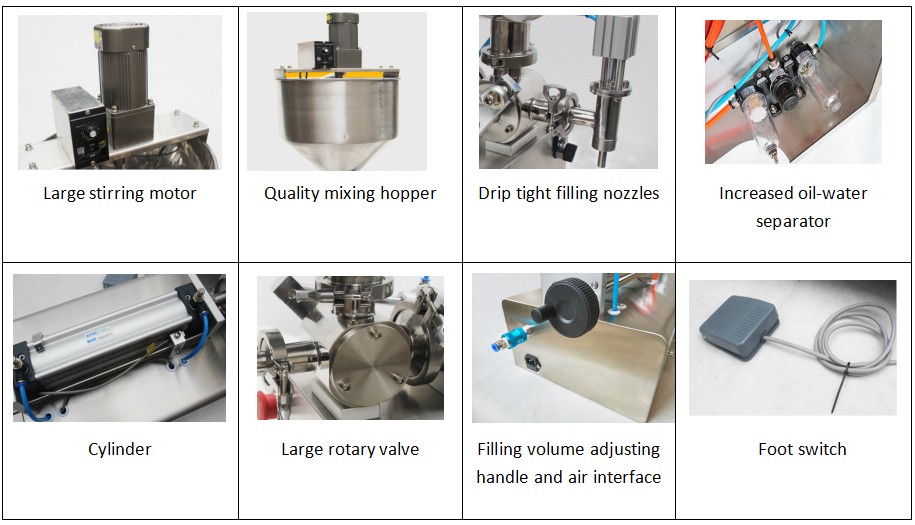

Machine details:
Appication:
