Decanter centrifuge

Hemp decanter centrifuge CBD extraction

Supplier: FUYI Machinery

Share to:

Details

Application
Ex-proof type decanter centrifuge is specially for Cannabidiol Ethanol separation . Continue feeding and automatic discharging process .All contact parts made by SS316L .

Structures and properties:

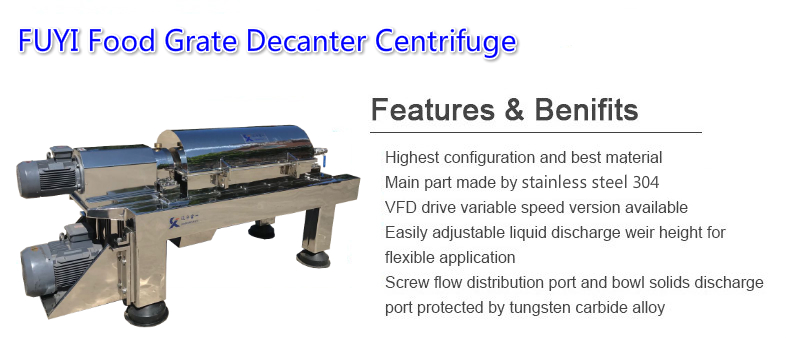

This machine is horizontal spiral discharging settling centrifuge, the main machine has a column-cone bowl, spiral stoker,
differential system, bearing seat, base, cover, main motor,vice motor, and electric control chamber. With the high speed rotating of bowl, form strong centrifugal force, making the sludge dehydrate continuously in 24 hours a day.
The main motor through the triangle belt make the bowl rotating, through the planetary gear differential, make the vice motor and spiral differential speed different, realize sludge dewatering and pushing material function, That means differential rotating speed control and torque control. because containing solid rate of sludge may have wave motion, by differential speed control system is the guarantee for speed stability, achieve solid content in sludge is constant, the constant torque control make decanter load in a stable state, the separation effect and flocculation is the best state, so as to ensure the safe operation of the centrifuge. This machine has good seal performance (guarantee without material leak in the process of operation), sludge dewatering work in full seal state, makes the environment clean.
This machine adopts the most advanced international special structural design, especially the spiral stoker, make the sludge concentration dehydration integration characteristics. It has better performance than ordinary centrifuge, more high capacity, better separation effect, save energy and manual work.

Main feature:

  1. Two motor, two frequency inverter drive system, realize differential speed stepless regulation and energy return.
  2. Spiral stoker blades: Surfacing welding tungsten carbide grinding.
  3. Drum cone cylinder material outlet: Replaceable wear resistant, corrosion resistant ceramic alloy bushing.
  4. Main bearing: Sweden NSK
  5. Main sealing parts: Taiwan SOG, material is Nitrile butadiene rubber
  6. Electrical protection: overload, phase loss, torque protection
  7. Main and vice inverter use common DC bus, vice motor’s function is generating electricity ( save electricity)
  8. PLC remote control
hemp decanter centrifuge
Technical parameters :

Model

Bowl Dia

Bowl Length

Speed rpm

Capacity

Main Motor Power

Weight

Size

LW220

220 mm

930mm

5000

0.5-1 T/h

7.5 KW

1200kg

2420*700*1010mm

LW300

300 mm

1200mm

4000

0.5-2  T/h

11KW

1500kg

2680*830*1280mm

LW355

355 mm

1600mm

3800

1-3  T/h

15 KW

1850kg

3490*860*1200mm

LW400

400 mm

1800mm

3650

2-5  T/h

18.5KW

2500kg

3890*1020*1200mm

LW450

450 mm

2000 mm

3650

3-8  T/h

22 KW

3000kg

4297*1080*1385mm

LW500

500 mm

2000mm

3000

5-10 T/h

30 KW

3800kg

4330*1140*1470mm

LW530

530 mm

2280mm

2900

5-13 T/h

45 KW

5000kg

4924*1170*1540mm

LW550

550 mm

2200mm

2780

5-15 T/h

55 KW

5580kg

4395*1370*1655mm

LW580

580 mm

2500mm

2500

10-20 T/h

55 KW

6500kg

5205*1270*1540mm

LW650

600 mm

2800mm

2270

10-40 T/h

75 KW

7000kg

4200*1900*1350mm
