Details

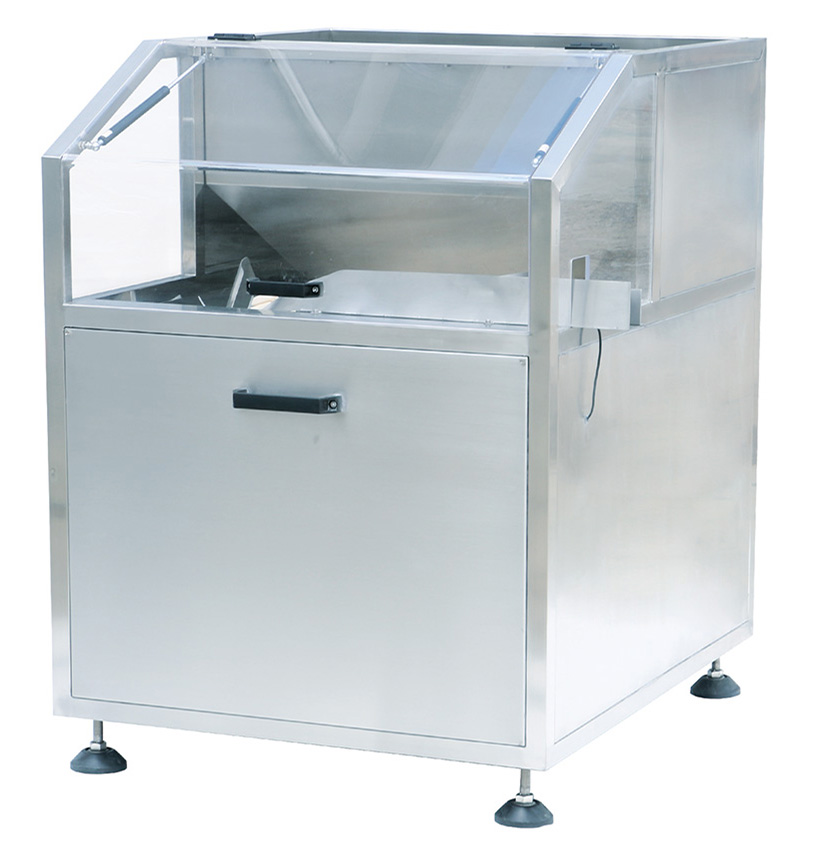

JF-160 Bottle Unscrambler

Brief introduction:

The motor runs by the gear then it makes the neatening flower plate work.The bottles in the bottle container rotate from the under part to the upper part of the bottle neatening plate by the semicircle  groove of the bottle neatening flower plate.The bottles in the semicircle groove neaten by the bottle turning board of the bottle neatening system.It can turn the bottles which are upside down automatically.

Main features:

（1）  This machine is electromechanical integration equipment, convenient operation, simple maintenance, reliable running.

（2）  With a bottle of quantitative detection and control excessive overload protection device.

（3）  Frame and material barrel is made of high quality stainless steel material, beautiful appearance, in line with the GMP requirements.

（4）  Don't need to use air bottle blowing, the use of automatic bottle body, and is equipped with a set bottle device, greatly improve production efficiency.

Technical parameters：

Bottle type: plastic round bottle

Production capacity：60～160 bottles per minute

Power supply：AC220V 50Hz 0.25kw

Overall dimension：1200×1150×1300mm

Weight：200kg
