JF-A100 AUTOMATIC BOTTLE UNSCRAMBLER
Supplier: FUYI Machinery
Share to:
Details
JF-A100 AUTOMATIC BOTTLE UNSCRAMBLER
Product Application
Used for round plastic bottles .Has storage bin and accuracy,easily operate and save cost.
Specifications:
|
JF-A100 AUTOMATIC BOTTLE UNSCRAMBLER
|
|||
|
1
|
Applicable bottle
|
Type
|
50-300 ml round plastic bottles
|
|
2
|
Capacity
|
Bottles/min
|
30-100
|
|
3
|
Power
|
w
|
150
|
|
4
|
Vacuum pump
|
Mpa
|
0.05
|
|
5
|
Weight of machine
|
Kg
|
220
|
|
6
|
Oversize of machine
|
Mm
|
950*950*1000
|
|
7
|
Material
|
/
|
304 stainless steel
|
Main parts:
1. Name: Easy and smooth exit
Material: 304 stainless steel
Function: Bottles arranged from the machine and through the equipment channel one by one in order
2. Name:Machine mould
Material: Nylon
Original: Jianfeng Machiney
One bottle has one mould ,if similar bottles may use one mould ,need our technician test and calculation.
3. Name: Storage bin
Material: 304 stainless steel
Original: Jianfeng Machiney
This unscrambler has a storage bin ,if 100ml can hold 300 bottles .Scientific has two organic glass to prevent dust .
4.Name: Machine case
Material:304 stainless steel
Function:Jianfeng Machinery
Support the main body of the machine, and install electrical distribution system in the chassis

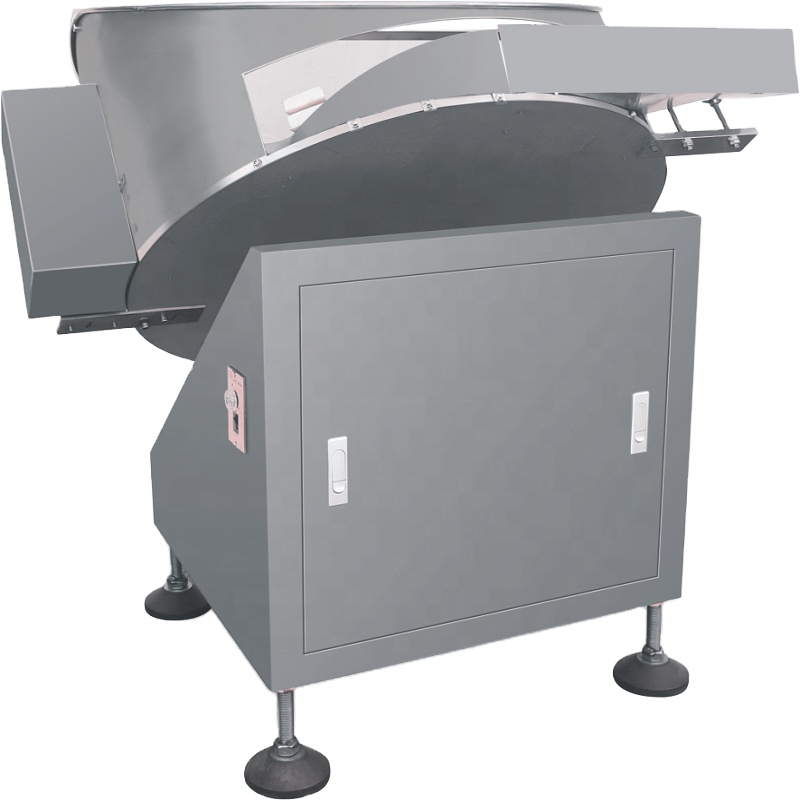

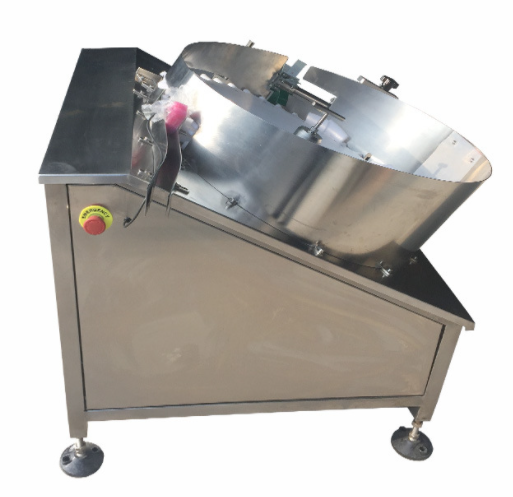

Machine photos:
