JY-11 3-side tea bag packing machine
Supplier: FUYI Machinery
Share to:
Details

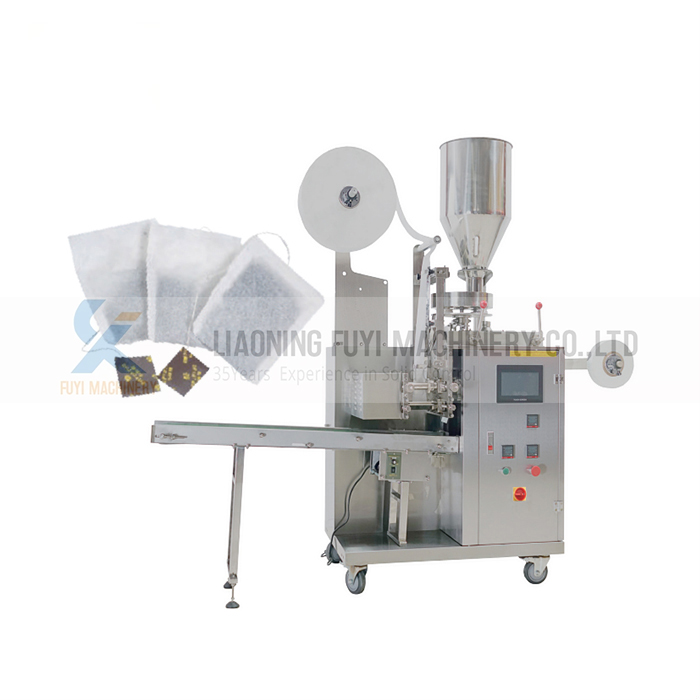

JY-11 3-side sealing tea bag with thread and tag packing machine
Application&main features：
1.It's suitable for packing of steeping products automatically, such as: broken tea, medicinal tea, coffee and plant.
2. It can automatically complete bag making, measuring, cutting, sealing, cutting, counting, and can be configured to print batch numbers according to customer requirements.
3. Touch screen operation, PLC control, servo motor control for bag length, stable performance, convenient adjustment, and accurate detection.

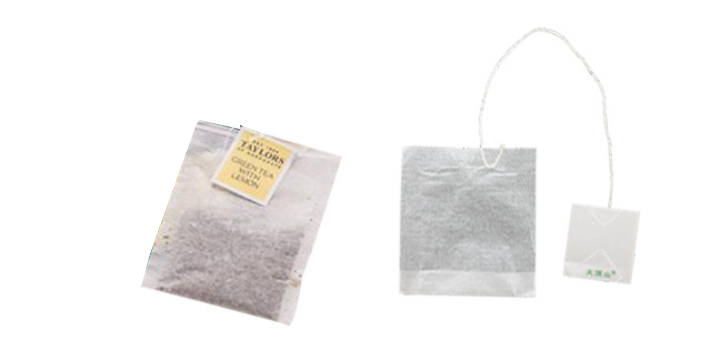

4. Packaging material: filter paper, thread , labels.
Technical parameter:
|
Model No.: |
JY-11 |
|
Capacity: |
30-60 bags/Min(Determined by packing material) |
|
Bag type: |
3-side sealing |
|
Filling range: |
1-10ML |
|
Made bag size: |
Length: 50-80mm Width: 45-80mm |
|
Packing material: |
filter paper, thread , labels |
|
Air consumption: |
0.6m3/min 0.8Mpa |
|
Total power: |
AC220V/50Hz/1.8kw |
|
Dimension: |
1450 *741 * 1716mm |
|
Net weight: |
300g |
Notes：this machine is only for packing inner tea bag. If you need machine for both inner bag and outer bag, please order JY-169 model.
