JY-420/520 automatic stretch film vacuum packaging machine
Supplier: FUYI Machinery
Share to:
Details

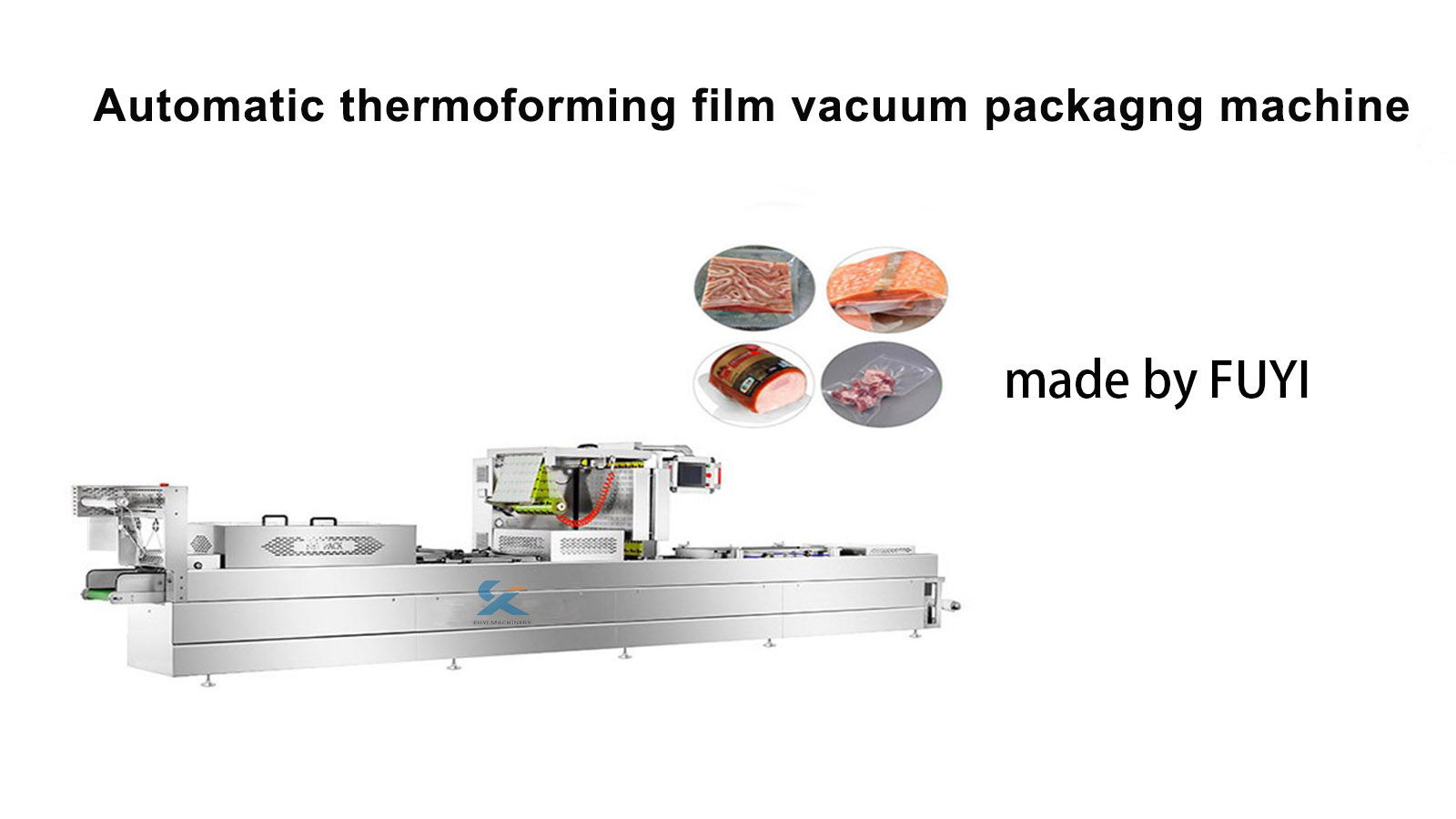

JY-420/520 automatic stretch film vacuum packaging machine
Machine introduction:
This equipment adopts lower film stretch packaging, the equipment is equipped with a inkjet coding device, without a inkjet printer, and the customer's own inkjet printer needs to have a two-way inkjet coding function.
It is used for vacuum packaging for various raw foods, chicken wings, chicken feet, soybean products, soy products, medicinal materials, condiments, seafood, frozen food, medical products, local product meat products, hardware elements, medical equipment and other packaging materials for vacuum packaging. The purpose of itching, moisture -proof, mildew -resistant, anti -corrosion and other purposes effectively extend the shelf life and preservation period
Technical parameters:
|
Model: |
JY-420 |
JY-520 |
|
power supply: |
Three-phase four-wire 380V/50Hz15kw |
Three-phase four-wire 380V/50Hz15kw |
|
Upper membrane width: |
370mm |
550mm |
|
Width of the lower membrane: |
370mm |
550mm |
|
Studio effective size: |
368mm x 690mm |
384mm x 690mm |
|
The weight of the whole machine: |
2000--2200Kg |
2000--2200Kg |
|
Vacuum: |
≤200pa |
≤200pa |
|
pressurized air: |
0.6-0.8mpa |
0.6-0.8mpa |
|
Average power: |
12kw/hour |
12kw/hour |
|
Yield: |
4-6 beats per minute |
4-6 beats per minute |
|
Dimensions: |
6000-6500*1750mm*960mm |
6000-6500*1750mm |
Work process:
1.Bottom film 2. Formng system 3.Loading Area 4.Sealing parts 5.Top film 6. Horizontal cut 7. Verticval cut 8. Finish
Application:
