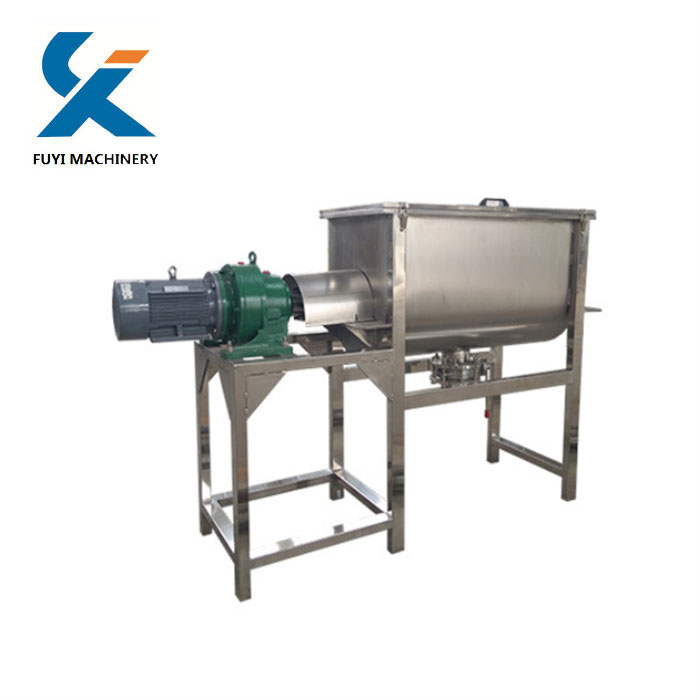

LH-160 Stainless steel powder mixing machine

U shape mixer



  1. Brief introduction:

The machine is mainly suitable for food, daily chemical, condiment, medicine and other industries. Such as milk powder, cereal powder, soybean milk powder, Cereals, condiments, food additives, washing powder, talcum powder, salt, coffee, milk tea, flour and other materials.

  1. Main features:
  2. The material tank and screw belt are made of stainless steel, which is easy to clean and avoid corrosion.
  3. The gear reducer is used for wear resistance and durability, long service life, low noise.
  4. Two-way S-shaped screw belt, rapid and uniform mixing.
  5. An observation window can be opened at the top of the tank for easy observation of mixing.
  6. Castors, variable frequency governor , screw conveyor can be installed as per your request.
  7. Technical parameters:

Model:

LH-160

Mixing tank l volume:

160L (0.5-6M3)

Effective mixing volume:

100 kg/h

Voltage:

380V/50HZ 3P

Motor power:

1.5kw

Machine material:

SS316 for materials contact parts +SS304 for frame

Outlet dia. of butterfly valve:

108mm

Mixing tank size:

L*W: 1000*550mm

Mixing time:

4-6 min

Stirring paddle thickness:

6mm

Motor speed:

1400 rpm

Size (mm):

1350*580*1100mm

Weight:

130KG

4.Application:

mixing powder
