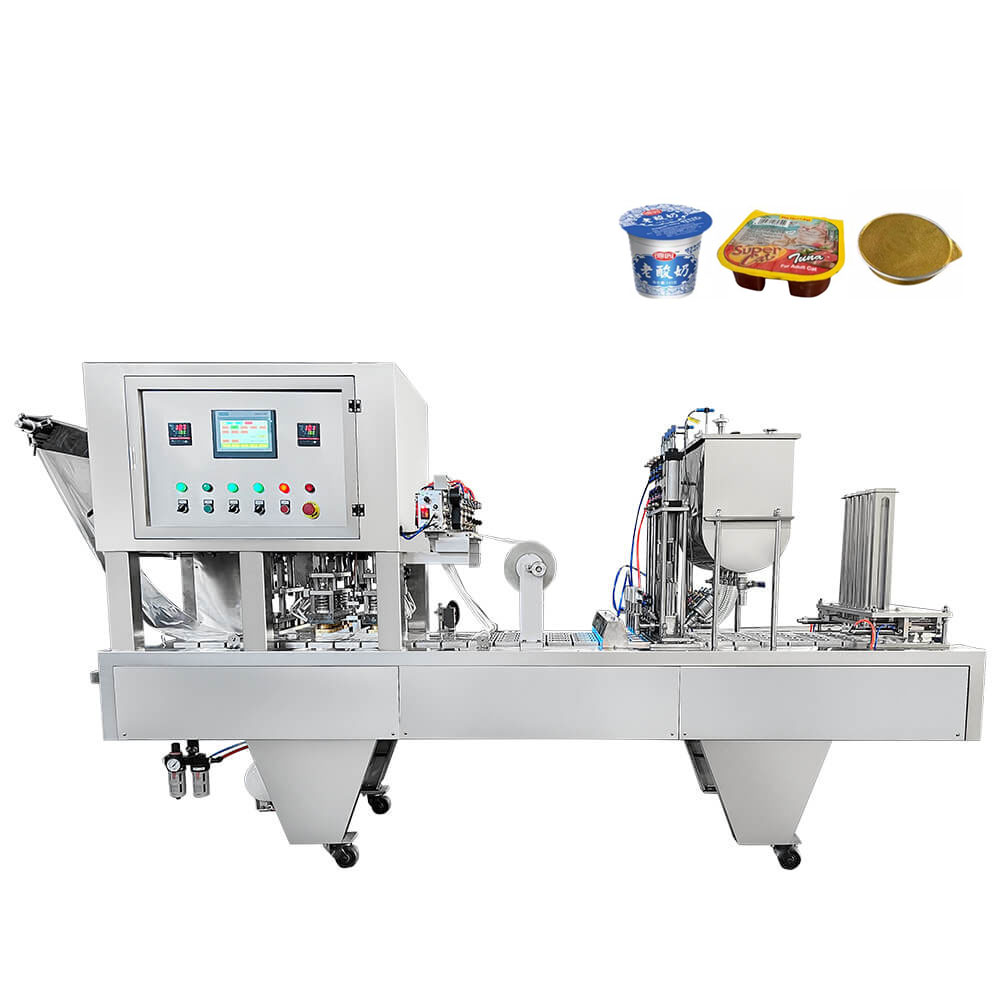

YTG-4 Automatic 1-to-4 honey cup filling & sealing machine



Functional specifications:

•     Machine Type: Automatic Cup Filling & Sealing Machine - Linear Type,

•     Duty: This machine fill honey in plastic cups and then seal it

Performance specifications:

•     Honey filling and sealing machine

•     Product rate (fill and seal): around 4000 cups / hour, it depends on your filling volume and cup size.

•     Filling capacity/ volume: 0-300ML  ( we need know accurate filling volume)

•    The machine should automatically finish the process of filling, sealing, date printing and falling cup etc

•     Packaging Material: Paper, plastic  ( we need know your packing materials are pleastic film roll or cut films)

•    Accuracy around ±0.2 %

Physical specifications:

•    The machine body is made of stainless steel to meet sanitation standards.

•    Adopted by PLC system according to clients' requirements.

•    Certifications: ISO and CE.

•    Condition: new.

•    Voltage: 380V/50HZ (mostly we use 380V/50HZ industrial power,  220V/50HZ need customization at your own cost)

•    Automatic Grade: Automatic

•    Tank capacity:  50 Liters

•   Machine dimension: 4000*900*1650MM

 •  Machine weight: 1200kg

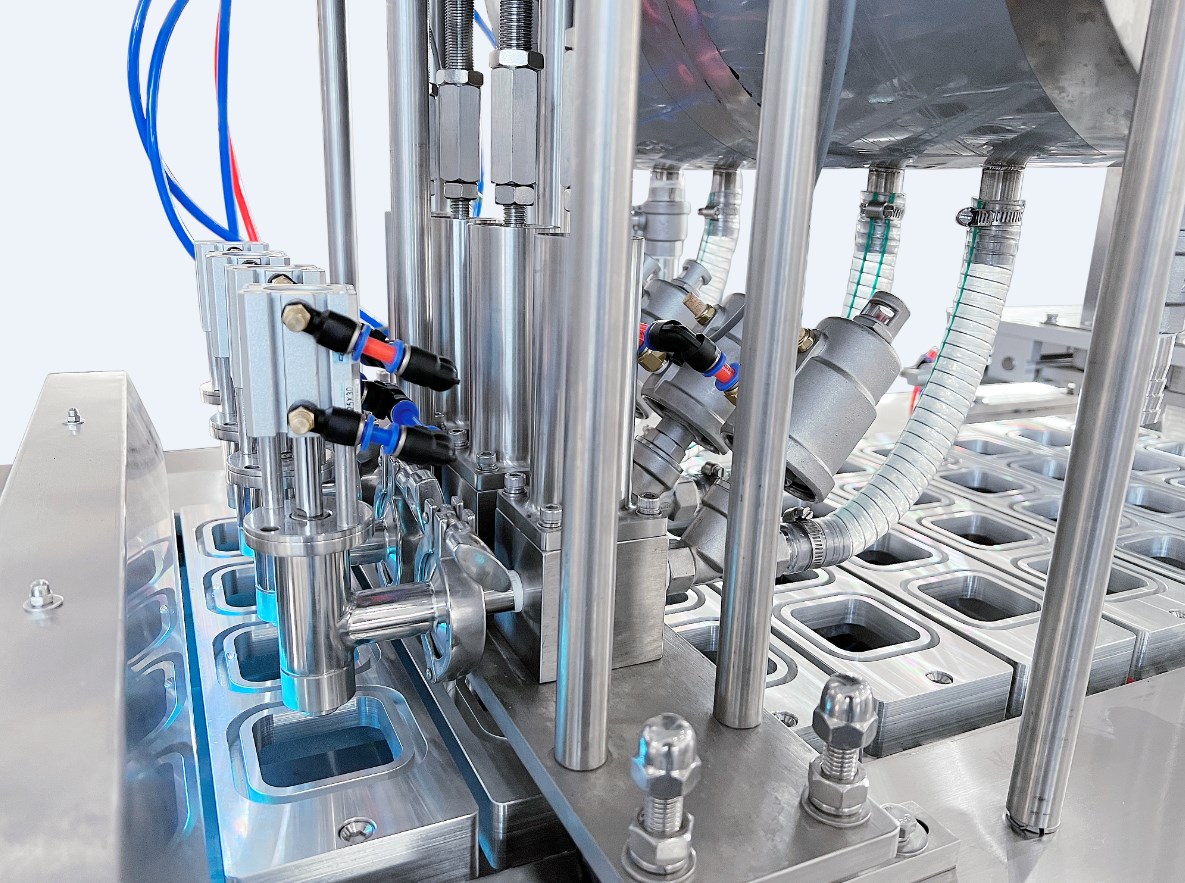

Machine details:

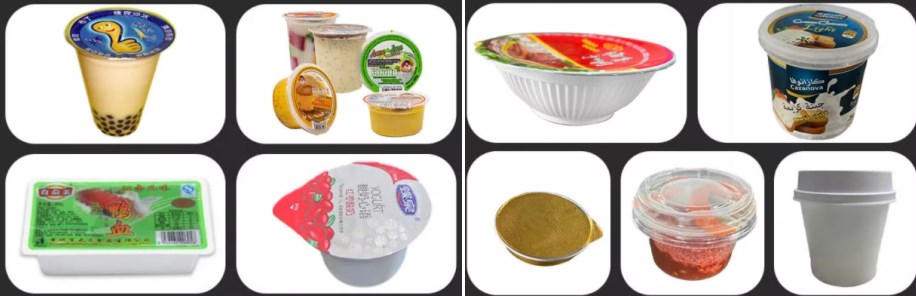

Application:
