Low Temperature Soak Type Hemp Oil Extraction Centrifuge Machine
Supplier: FUYI Machinery
Share to:
Details
Low Temperature Soak Type Hemp Oil Extraction Centrifuge Machine
PTD series hemp centrifuge is specially designed for plant extraction, and have the functions of airtight, explosion-proof, clean and mobile. EEC series centrifuge adopts flat-bottomed drum structure, which has larger volume, higher cleanliness, and non-polluting structure design. With simple operation, clean appearance, stable and excellent performance, it is liked by consumers.

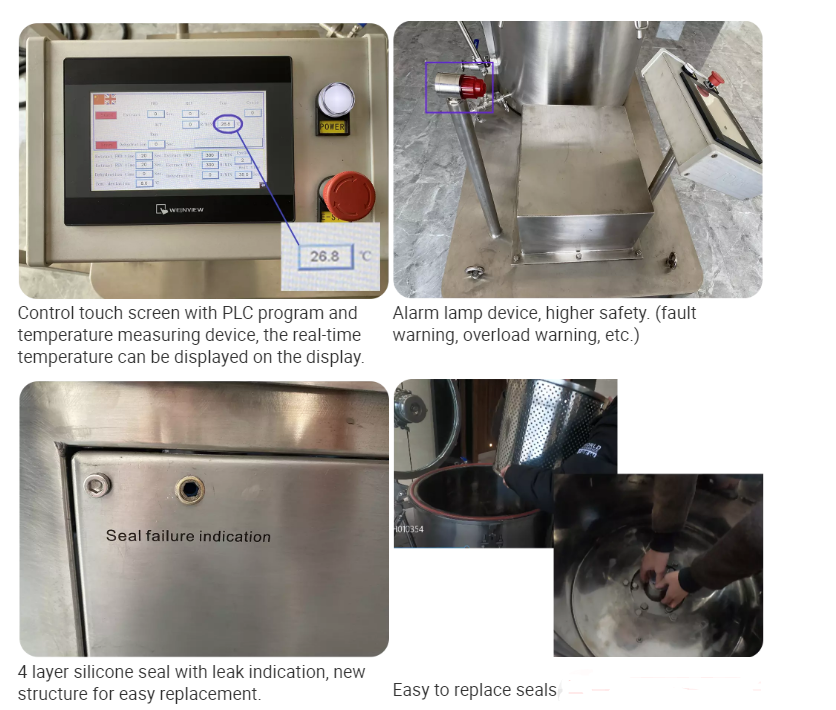

Compared with the traditional discharge centrifuge, The machine adopts a closed structure, and the seal is sealed with ptfe; the explosion-proof motor, frequency converter, PLC, touch screen and other devices can be used to achieve the sealed explosion-proof
requirements.
1. Inverter startup, smooth starting, adjustable relative centrifugal force.
2. Discharging solids from suspended bag is highly efficient with low labour intensity. No damage to the particles. Wide range of applications.
3. Well-designed structure leaves no place depositing dusts and makes the machine clean easily. The modules are designed smoothly and polished on the surface. The case, fixing parts and drums are made of stainless steel. With hinged enclosure cover, it is easy to clean the gap between the case and the drum.
4. The base and case are welt and joint together with high performance. Base is flat lowering the center of gravity and reducing the machine's occupation of space. The flat base can also be the operation step. Allocated with liquid amortisseur, simplifying the routine maintenance. Automatic online cleaning system cleans the internal wall of the case, the drum and liquid slot to meet the clean requirement in accordance with GMP standards.
5. Leak-proof structure with silicone rubber or fluoroelastomers seals. Nitrogen protection system(optional)is of anti-explosion applied to poisonous, flammable and explosive environment.
|
Model
|
PTD25
|
PTD45
|
PTD65
|
PTD85
|
PTD145
|
|
Bowl dia mm
|
300
|
450
|
450
|
600
|
600
|
|
Bowl volume L
|
25
|
45
|
65
|
85
|
145
|
|
Hemp biomass kg
|
8
|
14
|
20
|
25
|
45
|
|
Alcohol gallon
|
11
|
23
|
28
|
37
|
56
|
|
Rotation speed rpm
|
2000
|
1500
|
1500
|
1250
|
1250
|
|
Motor power KW
|
1.5
|
2.2
|
3
|
4
|
5.5
|
|
Weight kg
|
240
|
350
|
500
|
800
|
820
|
