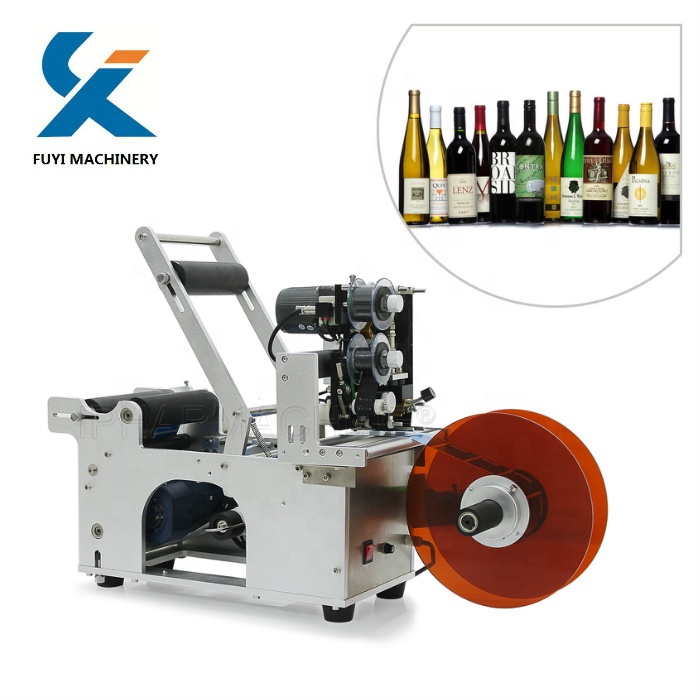

MT50 semi-auto round bottle label machine
Supplier: FUYI Machinery
Share to:
Details
This machine is applicable for labeling on round or conical container, with 1 or 2 labels, on front and back sides
Feature :
1.Two working mode:Pedal switch control or automatic working mode
2.Labeling function:Single side labeling and double side labeling
3.Can be equipped with date printe,make labeling and printing at one machine.
2.Labeling function:Single side labeling and double side labeling
3.Can be equipped with date printe,make labeling and printing at one machine.
4. Applicable scope, can meet 10-120 mm diameter range of cylindrical considerate scale
5. High accuracy of labeling, the acuities of label head to tail connect local just reache + / - 0.5 mm
6. The clever extrusion type device feeding, just need to place the pieces,it can automatically labeling
7. The jockey for position type adjustment, different workpiece labels switching simple
8. Adopt the synchronous belt traction, mechanical stability is greatly improved
9. Desktop design, the structure is simplified, appearance compact, powerful
10. Using the anodic oxidation of aluminium alloy stents and advanced computer white box, the beauty is generous
11. Using advanced electric eye, the object, the label high detection sensitivity.
5. High accuracy of labeling, the acuities of label head to tail connect local just reache + / - 0.5 mm
6. The clever extrusion type device feeding, just need to place the pieces,it can automatically labeling
7. The jockey for position type adjustment, different workpiece labels switching simple
8. Adopt the synchronous belt traction, mechanical stability is greatly improved
9. Desktop design, the structure is simplified, appearance compact, powerful
10. Using the anodic oxidation of aluminium alloy stents and advanced computer white box, the beauty is generous
11. Using advanced electric eye, the object, the label high detection sensitivity.
Technical Parameters:
|
Available Bottle Diameter:
|
10 ~ 120mm(Customized)
|
|
|
Minimum Label Length:
|
10mm
|
|
|
Working Speed:
|
25-50 piece/minutes
|
|
|
Max.OD of roll:
|
275mm
|
|
|
Min.ID of roll:
|
75mm
|
|
|
Operation:
|
Semi automatic
|
|
|
Power Supply:
|
AC 110V/220V±5% 50HZ 100W
|
|
|
Accuracy:
|
±0.5mm
|
|
|
Measurement:
|
650 x 450 x 450 mm
|
|
|
Weight:
|
25Kg
|
|
Application :
1. Cylinder, round bottle, round can and other stickers.
2. Suitable for labeling round bottles such as PET bottles, plastic bottles, glass bottles and metal bottles.
3. Widely used in cosmetics, beverage, food and other industries, greatly improving productivity and labeling quality.
2. Suitable for labeling round bottles such as PET bottles, plastic bottles, glass bottles and metal bottles.
3. Widely used in cosmetics, beverage, food and other industries, greatly improving productivity and labeling quality.
