Magnetic pump Liquid filling machine
Supplier: FUYI Machinery
Share to:
Details

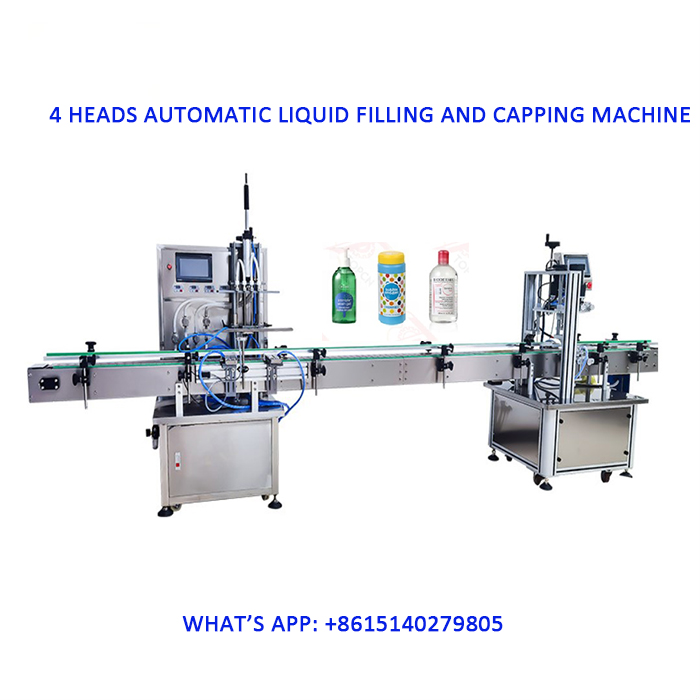

4/6/8/10 Nozzles Automatic Straight Line Magnetic pump Liquid Bottle filling machine +capping machine
Brief introduction：
1. This line equips with 4-head magnetic pump liquid filling machine and a capping machine. ( other bottle sorting table and cap feeding machine can also be customized.)
2. Widely used in food, medicine, daily chemical and other industries; Such as alcohol, soy sauce, vinegar, milk, beverages, mineral water, medicine or edible oil and chemical liquids.
3. Stainless steel gear pump is used for filling, which is convenient for cleaning and changing pipes.
4. The glass one-way valve is drip proof to ensure that the dropping phenomenon is reduced in the filling process.
5. Straight line bottle feeding design, large compatibility of packaging materials, suitable for many kinds of bottles, simple and fast filling when replacing packaging materials.
6. Automatic induction of bottles in and out, the number of filling bottles can be set, and a single discharge head can be
flexibly selected / disabled.
7. The machine is small and can be used in different occasions.
Main Features :
1. Controllable touch screen control
2. Stainless steel magnetic gear pump filling (anti-corrosion)
3. Lifting filling
4. Drip proof retaining tray
5. Chain plate assembly line bottle walking
6. Separate discharge nozzle switch
controllable
7. Electric hybrid four-wheel bottle clamping screw cap
Technical parameters :
2. Widely used in food, medicine, daily chemical and other industries; Such as alcohol, soy sauce, vinegar, milk, beverages, mineral water, medicine or edible oil and chemical liquids.
3. Stainless steel gear pump is used for filling, which is convenient for cleaning and changing pipes.
4. The glass one-way valve is drip proof to ensure that the dropping phenomenon is reduced in the filling process.
5. Straight line bottle feeding design, large compatibility of packaging materials, suitable for many kinds of bottles, simple and fast filling when replacing packaging materials.
6. Automatic induction of bottles in and out, the number of filling bottles can be set, and a single discharge head can be
flexibly selected / disabled.
7. The machine is small and can be used in different occasions.
Main Features :
1. Controllable touch screen control
2. Stainless steel magnetic gear pump filling (anti-corrosion)
3. Lifting filling
4. Drip proof retaining tray
5. Chain plate assembly line bottle walking
6. Separate discharge nozzle switch
controllable
7. Electric hybrid four-wheel bottle clamping screw cap
Technical parameters :
|
Model
|
FYL-4/6/8/10
|
|
Filling nozzles:
|
4 /6/8/10
|
|
Filling materials:
|
fluid materials
|
|
Filling speed:
|
20-50 bottles/H
|
|
Voltage:
|
220V AC /50HZ 1 phase (customized)
|
|
Parts in contact with material::
|
304 stainless steel or sanitary silica gel
|
|
Filling range:
|
3 ml- unlimited (or customized)
|
|
Filling accuracy:
|
±0.5% (depending on the material)
|
|
Power:
|
870W
|
|
Conveyor methods：
|
Conveyor belt(with adjustable speed) 2 meters
|
|
Suitable bottle ：
|
Bottle height range: 30-250mm Bottle wide range: 20-100mm
|
|
Machine dimension：
|
4000 * 760 * 1750mm or bigger
|
|
Machine weight：
|
around 280kg (depend on model)
|
Notes：Please contact us for different models for different materials and specifications

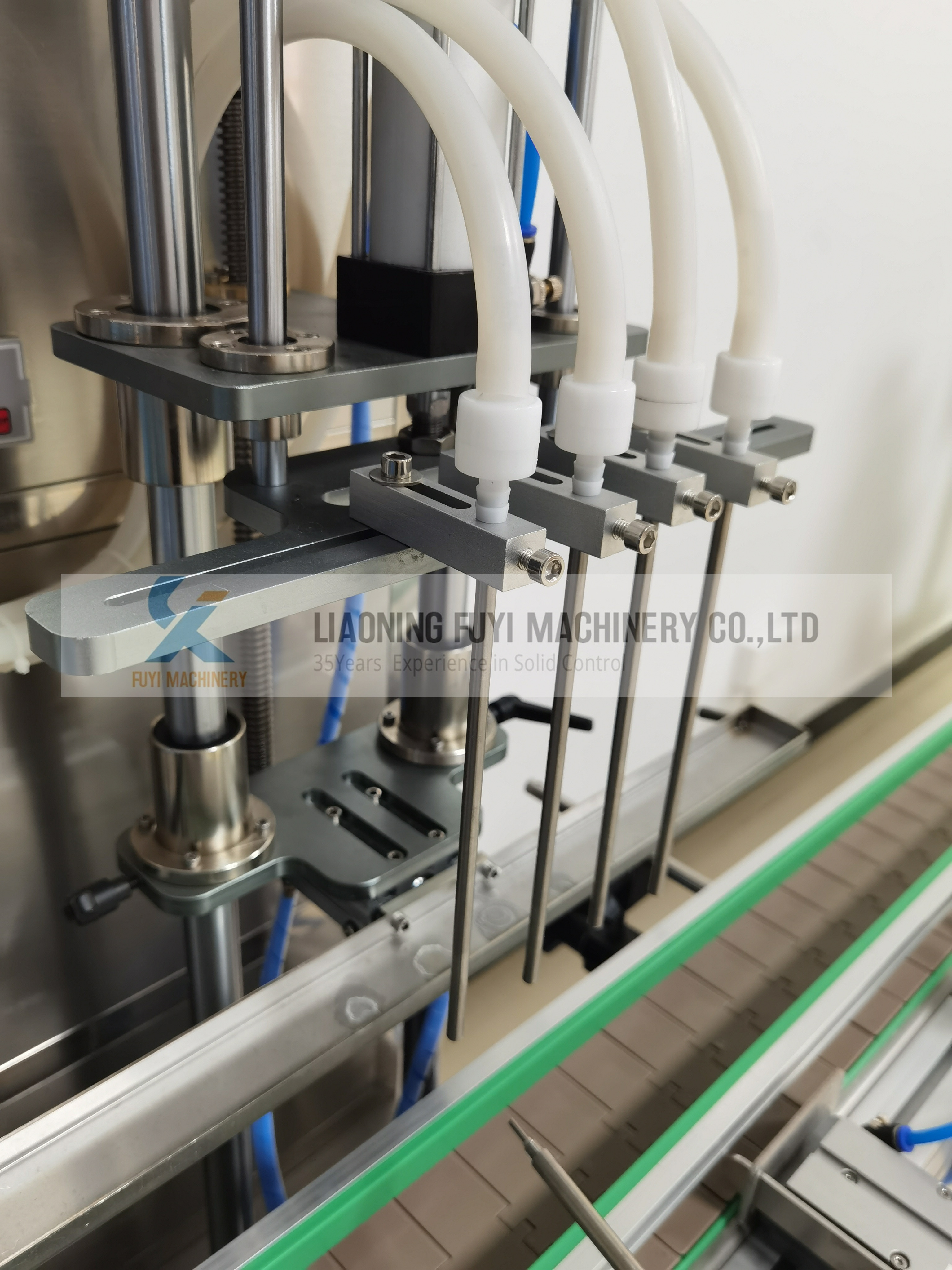

Machine details:
