NJP-200 Automatic Capsule Filling Machine

Supplier: FUYI Machinery

Share to:

Details

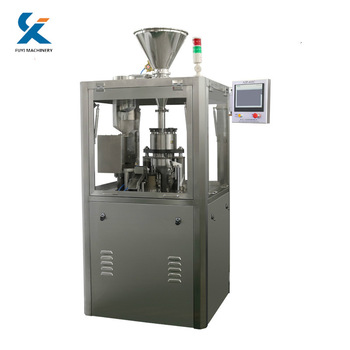

NJP-200 Automatic Capsule Filling Machine

NJP200

Brief Introduction

 NJP automatic capsule filling machine is suitable for filling the capsule of powdery and granular drugs. Automatic capsule machine is used to fill powder in the form of slug in hard gelatin capsules. These are high speed, a high performance machine that incorporates latest international design and is built with precision using most appropriate material and up to date manufacturing systems. Different models are available for various output requirements. empty capsule filler is designed to cater various formulations with option to fill powder, granules and pellets.
 Its automatic filling demands very high accuracy besides high productivity, ease of operation
 and minimum maintenance. This capsule filling kit has been specifically designed to meet all these requirements. We offer automatic capsule filling machine with good prices.

Main Features

 1. Tamping Mechanism enables capsules to be filled with a weight variation of 3 %.
 2.Quick changeover for a variety of capsule sizes with minimal follow-up adjustments and maintenance requirements.
 3. closed system protect your product from contaminants, and allow a dust-free production
 environment for better health and easier cleaning
 4.Adjustable gap between dosing disk and tamping plate ensures minimum spillage of powder.
 5.Unit goes with touch panel, control by PLC.
 6.All contact parts of medical powders are made from a corrosion resistant stainless steel 316.
 7.Automatic vacuum removal of the air in the dosing tube to give more accurate weight of the filled capsules
 8. click-moving control system, make and easier operation and clearness.
 9. Safety System
 Machine stops automatically in the event of following problems through safety interlock system.
    No capsules
    No powder
    Door in open condition

 Technical parameters:

Production capacity

12000 pcs/h

Net weight of machine

600Kg

Overall size of machine

805×705×1760(mm)

Power

380/220V 50Hz

Total power

3KW

No.of segment bores

2

Vacuum

20m3/h-0.04-0.08Mpa

Dust collector

17.6Kpa  180m3/h

Noise

<75DB(A)

Making rate

Empty capsule 99.9%

Full capsule 99.8%

Applicable capsule

00000,0,1,2,3,4,5#

Filling error

Western medicine:±3%

Chinese medicine:±4%

Applicable product

Power,granule,pellet,tablet

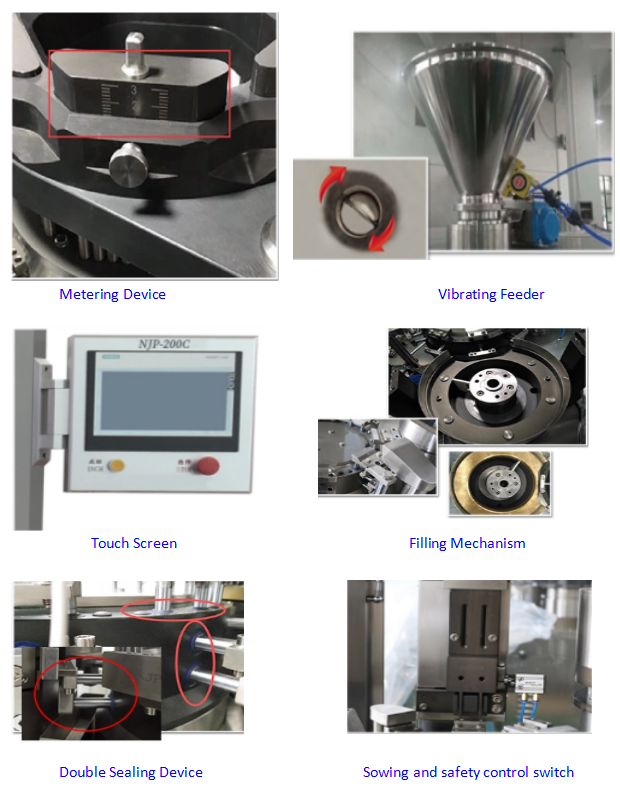

Machine details:

NJP200 CAPSULE FILLING MACHINE





Finished samples:CAPSULES
