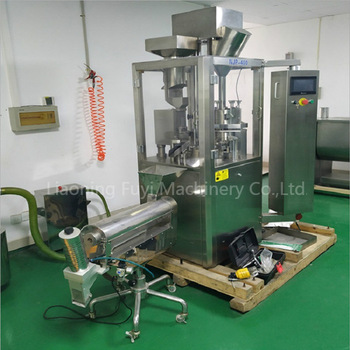

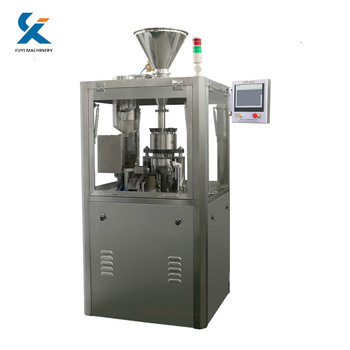

NJP-800 Automatic Capsule Filling Machine
Brief introduction:
NJP-800 Auto Capsule Filling Machine is used to fill powder in the form of slug in hard gelatin capsules. These are high speed, a high performance machine that incorporates latest international design and is built with precision using most appropriate material and up to date manufacturing systems. Different models are available for various output requirements. It is designed to cater various formulations with option to fill powder, granules and pellets.
Main Features
Auto Capsule Filling Machine is used to fill powder in the form of slug in hard gelatin capsules.
These are high speed, a high performance machine that incorporates latest international design and is built with precision using most appropriate material and up to date manufacturing systems. Different models are available for various output requirements. It is designed to cater various formulations with option to fill powder, granules and pellets.
Its automatic filling demands very high accuracy besides high productivity, ease of operation
and minimum maintenance. This machine has been specifically designed to meet all these
requirements.
1. Tamping Mechanism enables capsules to be filled with a weight variation of 3 %.
2. Faulty capsule and filled capsule ejection stations with individual air controls.
3.Quick changeover for a variety of capsule sizes with minimal follow-up adjustments and maintenance requirements.
4. closed system protect your product from contaminants, and allow a dust-free production
environment for better health and easier cleaning
5.Adjustable gap between dosing disk and tamping plate ensures minimum spillage of powder.
6.Unit goes with touch panel, control by PLC.
7.All contact parts of medical powders are made from a corrosion resistant stainless steel 316.
8.Automatic vacuum removal of the air in the dosing tube to give more accurate weight of the filled capsules
10. click-moving control system, make and easier operation and clearness.
11. Safety System
Machine stops automatically in the event of following problems through safety interlock system.
No capsules
No powder
Door in open condition
Technical parameters:
|
Production capacity |
48000 pcs/h |
|
Net weight of machine |
900Kg |
|
Overall size of machine |
865×855×1900(mm) |
|
Power |
380/220V 50Hz |
|
Total power |
5KW |
|
No.of segment bores |
6 |
|
Vacuum |
20m3/h-0.04-0.08Mpa |
|
Dust collector |
17.6Kpa 180m3/h |
|
Noise |
<75DB(A) |
|
Making rate |
Empty capsule 99.9% Full capsule 99.8% |
|
Applicable capsule |
000,00,0,1,2,3,4,5# |
|
Filling error |
Western medicine:±3% Chinese medicine:±4% |
|
Applicable product |
Power、granule、pellet、tablet |

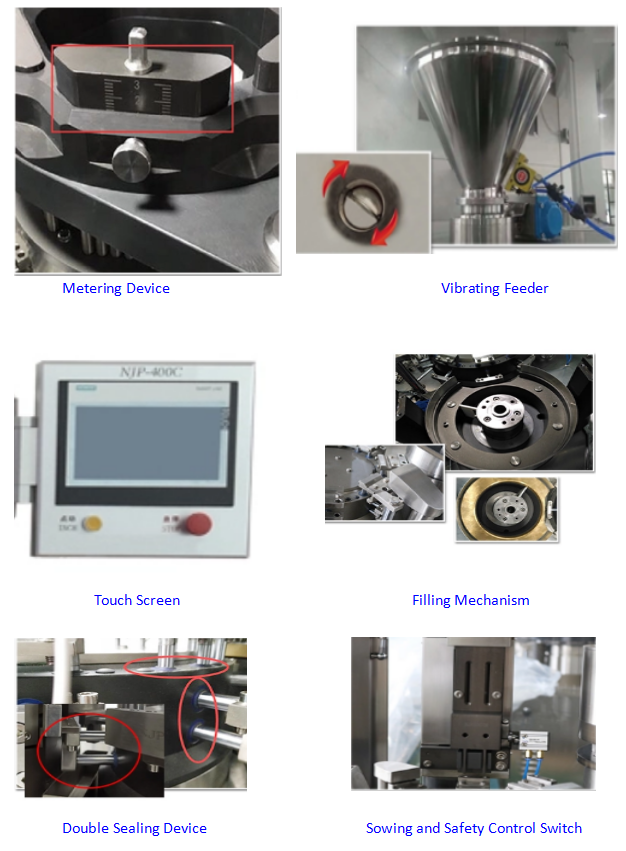

Machine details:

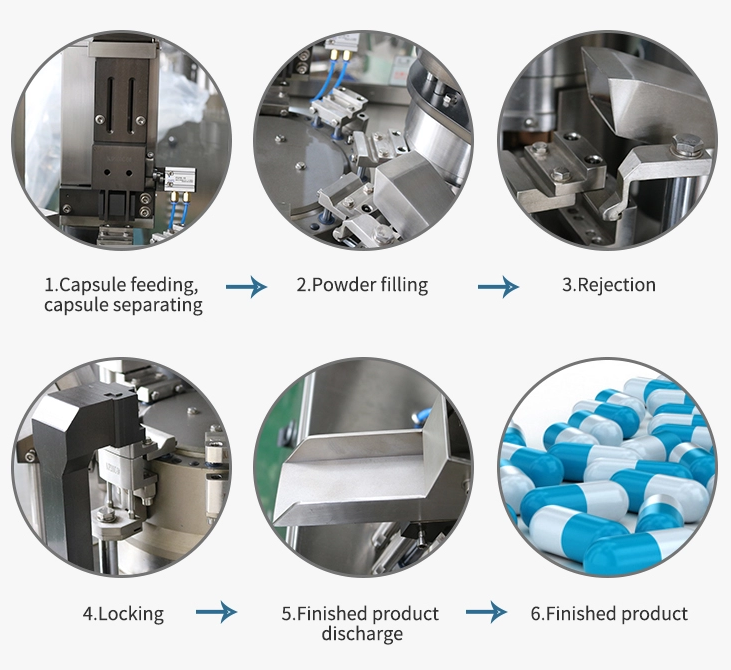

Working steps:
