NSL-160B Aluminum foil Double Side Strip Packaging Machine
Supplier: FUYI Machinery
Share to:
Details

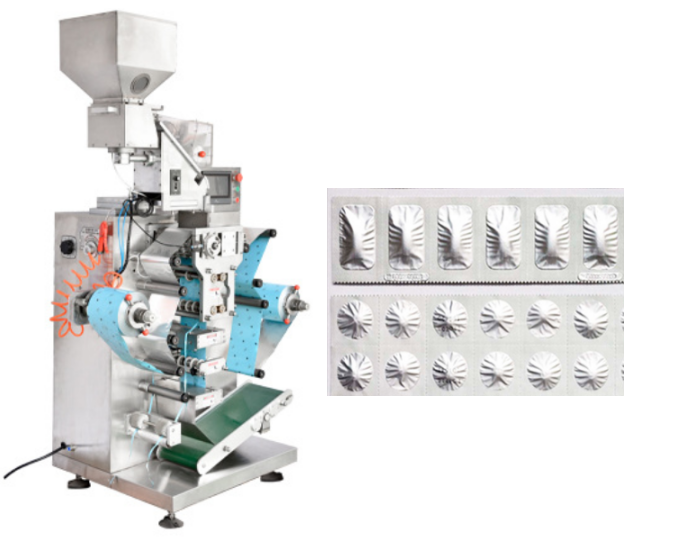

NSL-160B Aluminum foil Double Side Strip Packaging Machine
Brief introduction:
1.NSL series automatic strip Packing machine is a new type wrapping machine that adopts advance automatic control technology and innovation design.
2.It is suitable for packing tablets, capsules, electronic components, candies and similar shape products. 3.It is widely used in medicine, food, electronic industry.
4. It is featured with high technology, novelty structure, high efficiency, low noise, convenient operation and maintenance etc.
Main features:
1. It has a good function of sealing and protecting form light.
2. It adopts PLC and touch screen control system.
3. Its procedures such as filling, hot sealing, printing batch code, cutting and stroke adjusting all can be set randomly.
4. It will not be limited by machinery ranking gear, speed proportion, which is different from common type machines. So the working flow will be more convenient, and the speed of packing will be quicker, and the effect of the packing will be better.
Technical parameters:
|
Model |
NSL-160B |
|
Capacity |
≤800pcs/min |
|
Punch frequency |
40~80times/min |
|
Main motor power |
0.75KW |
|
Total power |
2.75KW |
|
Air compressor |
0.45Mpa ≥0.2m³/min |
|
Max packing material width |
160mm |
|
Packing material roll diameter |
φ300 mm |
|
Machine Dimension (L*W*H) |
1300*750*1700 mm |
|
Packing Dimension (L*W*H) |
1500*1000* 1900mm |
|
Gross weight |
900 kg |

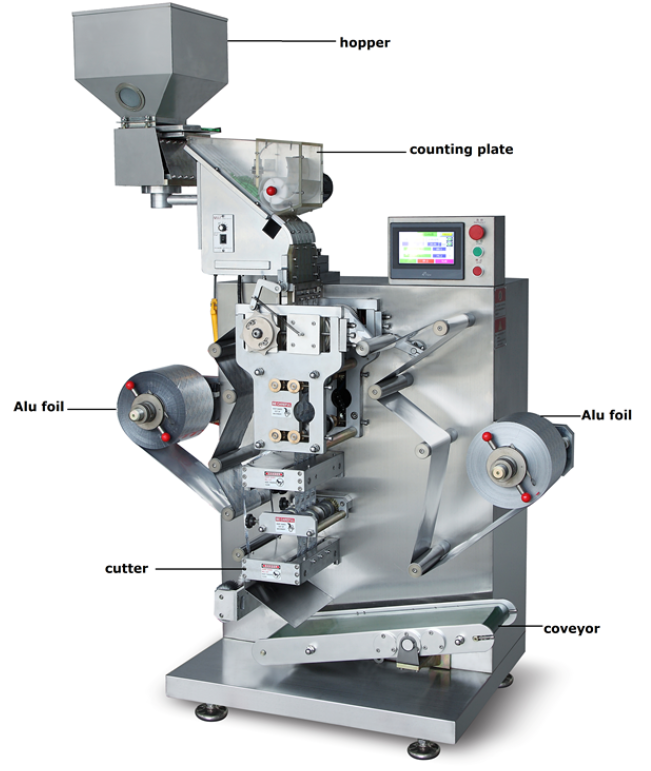

Machine details:

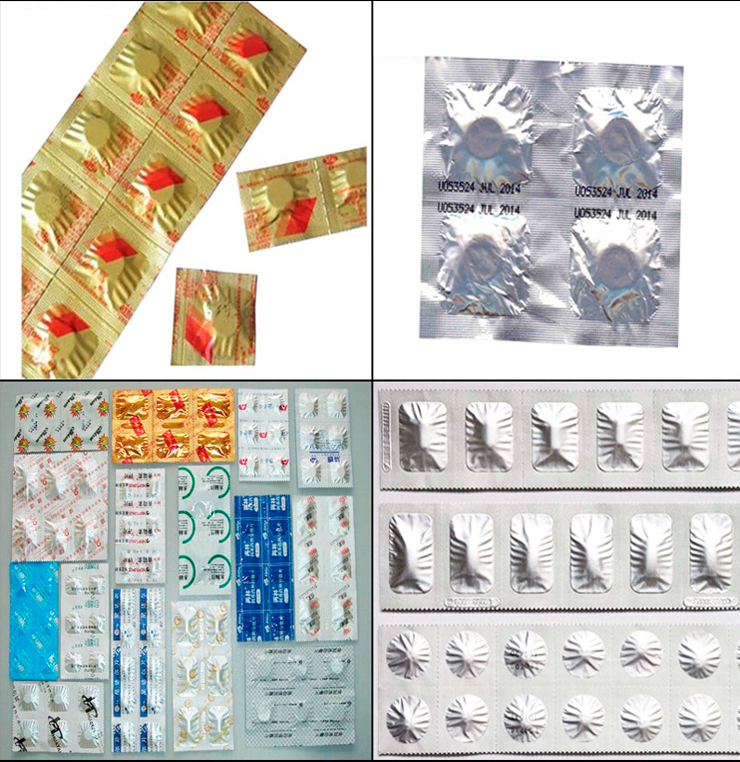

APPLICATION:
