NSL-260B Automatic Capsules Pills Aluminum Strip Packing Machine

Supplier: FUYI Machinery

Share to:

Details

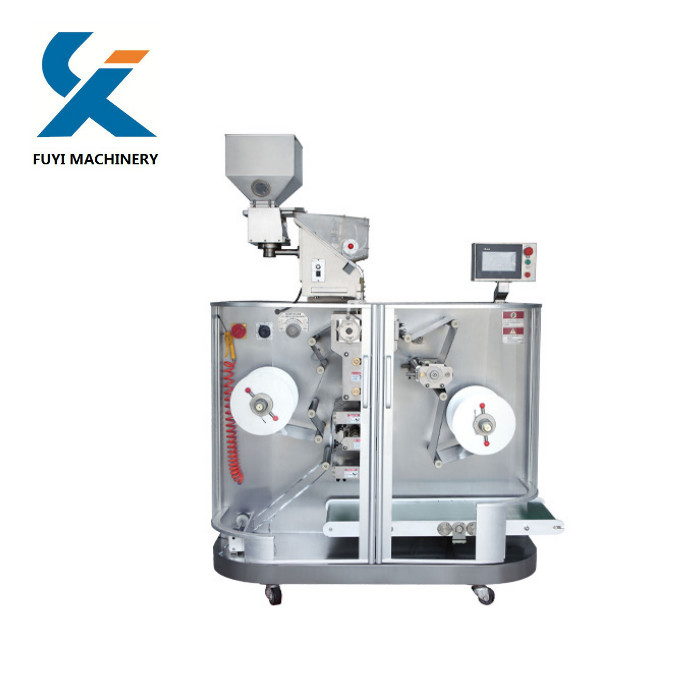

NSL-260B Automatic Capsules Pills Aluminum Strip Packing Machine

Aluminum Strip Packing Machine

Brief  introduction:

1.NSL series automatic strip Packing machine is a new type wrapping machine that adopts advance automatic control technology and innovation design.

2.It is suitable for packing tablets, capsules, electronic components, candies and similar shape products. 3.It is widely used in medicine, food, electronic industry.

3. It is featured with high technology, novelty structure, high efficiency, low noise, convenient operation and maintenance etc.
Main features:
1. It has a good function of sealing and protecting form light.

2.It adopts PLC and touch screen control system.

3.Its procedures such as filling, hot sealing, printing batch code, cutting and stroke adjusting all can be set randomly.

4.It will not be limited by machinery ranking gear, speed proportion, which is different from common type machines. So the working flow will be more convenient, and the speed of packing will be quicker, and the effect of the packing will be better.

Technical parameters:

Model

NSL-160B

NSL-260B

NSL-360B

Capacity

≤800pcs/min

≤1100pcs/min

≤1500pcs/min

Punch frequency

40~80times/min

40~80times/min

40~80times/min

Main motor power

0.75KW





Total power

2.75KW

3KW

4KW

Air compressor

0.45Mpa ≥0.2m³/min

0.45Mpa ≥0.2m³/min

0.45Mpa ≥0.2m³/min

Max packing material width

160mm

250mm

350mm

Packing material roll diameter

φ300 mm

φ300 mm

φ300 mm

Machine Dimension (L*W*H)

1300*750*1700 mm

1600*850*1900 mm

1600*950*1900 mm

Packing Dimension (L*W*H)

1500*1000* 1900mm

1800*1100* 2100mm

1800*1200* 2100mm

Gross weight

900 kg

1100 kg

1200 kg

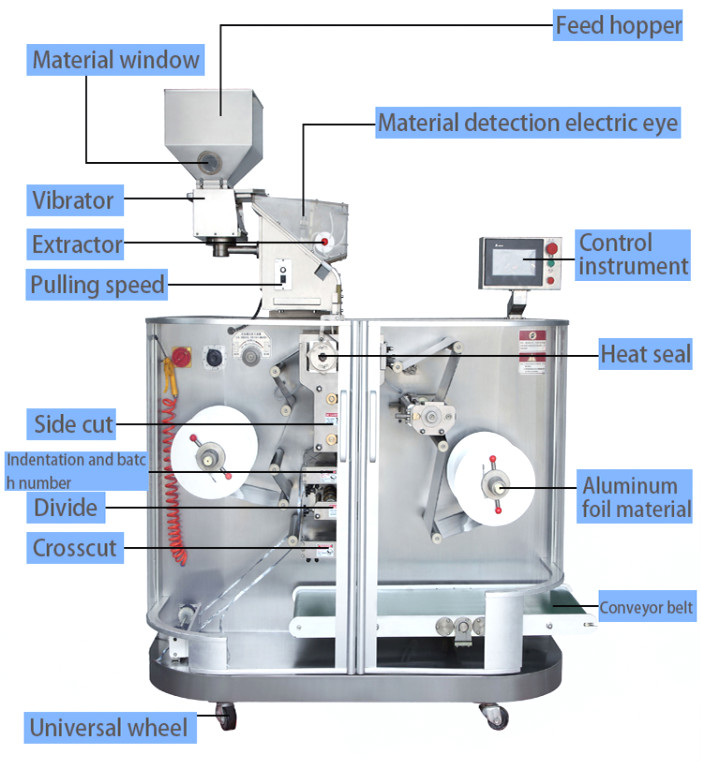

Machine details:

nsl-260bApplication:

aluminum strip packing effect
