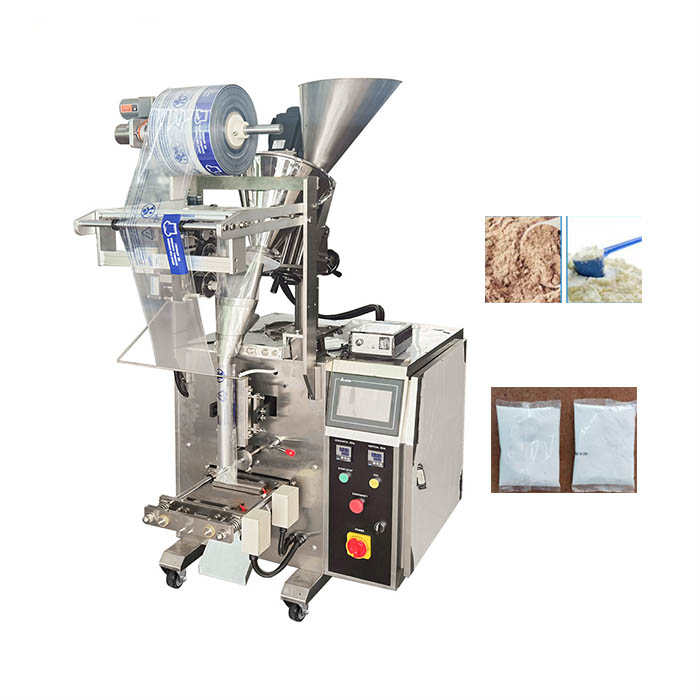

Pneumatic PVA water soluble film packing machine for 10g powder





Brief introduction:



 *Automatic Powder Vertical Packing Machine is suitable for packing non-stick with flow property powder. Such as milk powder, flour. starch, washing powder, curry powder, spices, instant coffee, tea cornmeal, drink powder, bean powder, jelly powder, maize powder, cement, peeper, paprika, fertilizer powder, herb powder, chemical powder and so on.



*Support a variety of bag types, such as back sealed bag, 3 sides sealing bag, 4 sides sealing bag, round corner bag, etc.



*This machine is very popular in food, construction, fertilizer, medical and pharmaceutical area.



 Main features:



* English and Chinese screen display, support multi-language customization. the operation is easy and simple.



* PLC computer control system, screw rotary measuring, more stable performance, can be adjusted any parameters not need stop machine.



* It can stock ten group parameters, simple to change variety.



* Adopting servo motor drawing film, the position is more accurately.



* Independent temperature control system, precision can reach ±1℃.



* Independent control of horizontal and vertical sealing temperature, suitable for various of mix film, PE film, and other packing materials.



* Packing type diversification, back sealing, inserted angle sealing, punching, and etc.



* Can automatically finish bag-making, weighing, packing, sealing, printing date and cutting in one.



* Quiet work circumstance quiet, low noise.



* Sealing rod needs to be plate with Teflon if packing by water soluble films.

Technical parameters:

Model:	FY-160FS
Power supply：	220v 60Hz 1.4KW
Packing weight:	5-50g or customized
Packing speed：	20-45pc/min
Bag type:	back-side sealing with zig-zag ends
Material:	Stainless steel S304
Film roll diameter：	320mm
Film roll width：	Max.320mm（different width need extra bag former）
Film roll thickness：	8-12c
Made bag width：	30-150mm
Made bag length：	Max.200mm（adjustable）
Sealing width：	10mm
Machine size：	(L)1000×(W)800×(H)1800mm
Machine weight：	170kg

Application:
