SL Double Headed Tablet/Capsule Counting Machine
Supplier: FUYI Machinery
Share to:
Details

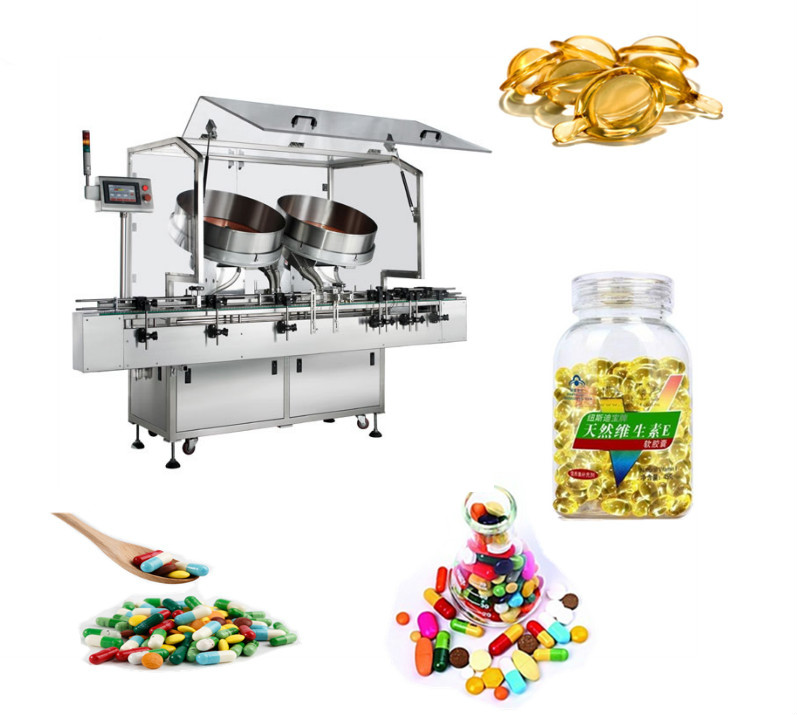

SL Double Headed Tablet/Capsule Counting Machine
Application:
This machine is automatic frequency-type double-headed counting and filling machine for piece/grain, widely used in pharmaceutical, food, daily chemical industry for counting and filling tablets, pills, capsules and other special-shaped pieces.
Technical parameters:
|
Model |
FY-SL60 |
|
Application standard |
15-500ml |
|
Production capacity |
20-60 bottles/min(decided by products&bottle shape) |
|
Tablet size |
3-25mm |
|
Capsule size |
#0 -- #4 |
|
Voltage |
3Ph.380V,50/60Hz |
|
Power |
1.2kw |
|
Machine weight |
500kg |
|
Machine dimension |
L2000*W1200*H1800mm |
|
Filling accuracy |
≤±1% |
|
Screen moving amplitude |
0-1.6mm |
Machine performance feature:
1. Shaking head adopts eccentricsieve movement and ultra-quite flexible structure, can adjust the eccentric sieve movement frequency steplessly.
2. Small noise, stable falling pieces, correct counting, speed can be adjusted by frequency conversion.
3. With the optical system for stop falling pieces when no piece, the design principle is advanced, structure is reasonable and compact, automatic stop when no bottle.
4. Main electrical elements adopt foreign well-known brands.
5. Machine shell is made of 304 stainless steel and plexiglass materials, meets GMP requirements.
