Details

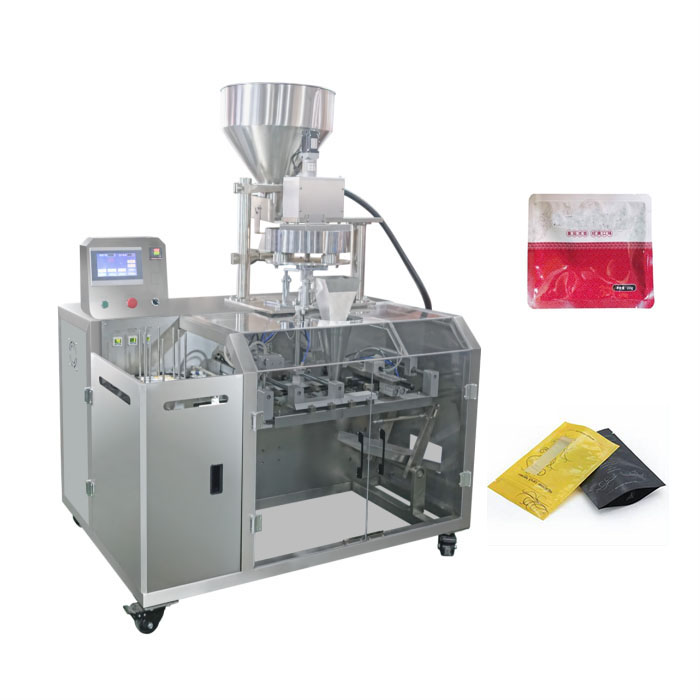

SP160K Horizontal pre-made bag Granule Packaging Machine



Brief introduction:

1、It is suitable for the measurement and packaging of granules, powders, liquids, sauces and other items in the food industry.

2、The packaging process is fully automatic without manual operation.it can be vacuum, filled with nitrogen, combinedfeeding.Different blanking structures can be selected according to the nature of the filling material, and can be configured according to customer requirements to print batch number and other functions.

3、It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.

4、Packing material: PE composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.



Technical Parameters:



Measuring Scope：20-500g



Total Power   ：AC220V / 50 - 60Hz / 2.6kw



Gas source：≥0.6Mpa



Premade bag  ( L ) ：80 - 240mm



 ( W ) ：65 - 170mm



Packing Speed：20 - 35bags / min



Dimension  ( L * W * H )：1525 * 1048 * 1876 mm



Weight   ：450 kg

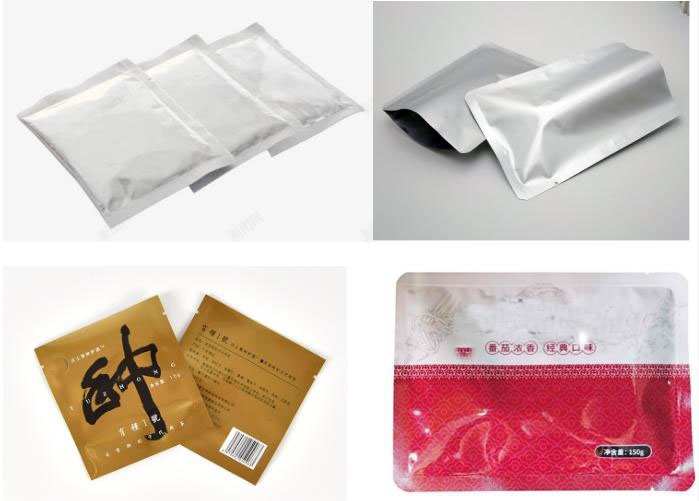

Finished packaging samples:
