Small laboratory scale laundry pods packing machine
Supplier: FUYI Machinery
Share to:
Details

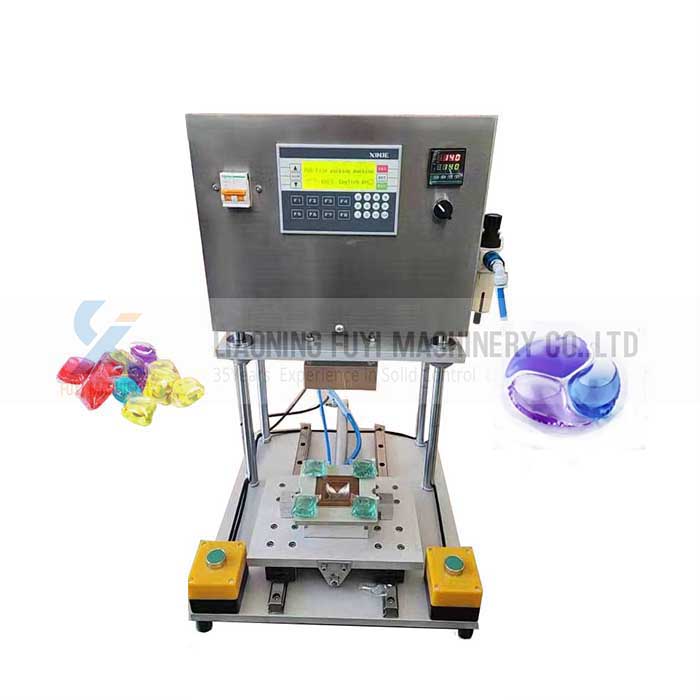

Small laboratory scale laundry pods packing machine
Brief introduction:
◆Mainly used for sample preparation in research and development, laboratory testing, and market research.
◆The mold is easy to replace and the shape can be customized according to customer requirements.
◆ Packaging capacity, 5-50ml;
◆Both liquid and powder can be packaged.
◆ Safe operation mode design
Technical parameter:
|
NO. |
Items |
Specifications |
|
1 |
Model: |
KN-01 |
|
2 |
Power supply: |
220V, 50Hz |
|
3 |
Control mode: |
manual+digital control display |
|
4 |
Basic form of machine: |
Single pod per time |
|
5 |
Packing volume: |
Customized as per customer requirements |
|
6 |
Sealing system: |
Sealing temperature range 50-200 ℃, temperature accuracy ± 1 ℃ |
|
7 |
Mold system: |
High quality magnesium aluminum alloy , customized shape |
|
8 |
Vacuum system: |
Can independently control and provide a vacuum degree of -0.01 to -0.05MPa |
|
9 |
Air source systems: |
Oil-free air compressor with 5 capable of providing pressure of 0.05-0.6 MPa |
|
10 |
Other configurations: |
1200 x 600 x 600, aluminum alloy frame, PP countertop panel |
|
11 |
Machine size: |
1200 x 600 x 600mm |
|
12 |
Machine weight: |
50kg |

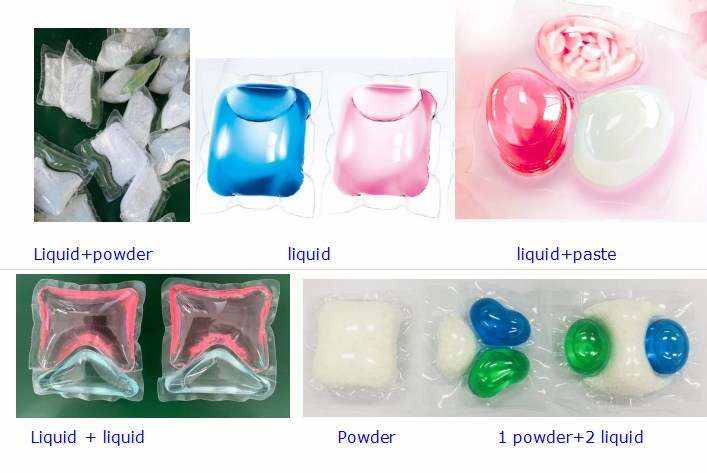

Finished pods samples:
