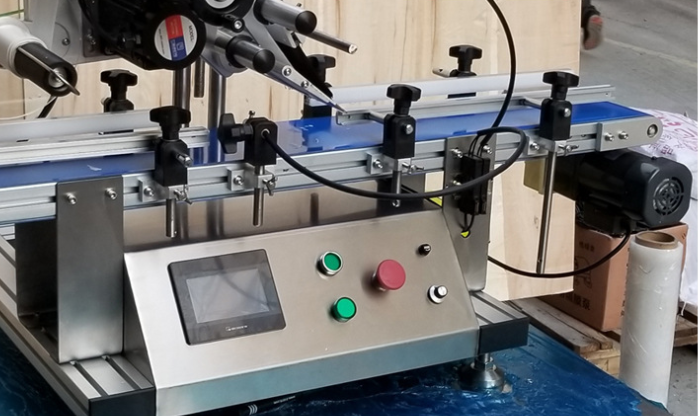

T80 auto top labeling machine
Supplier: FUYI Machinery
Share to:
Details
Desktop Automatic flat labeling machine applicable to the labeling on plane objects, capable of attaching multiple labels one time. Each labeling head can work independently. Suitable for uneven surfaces labeling by changing the label-overlaying mechanism.
Features:
- Powerful.
- Double-side rigid plastic guiding chain,
- Configured with automatic bottle dividing mechanism,
- Powerful.
- Double-side rigid plastic guiding chain,
- Configured with automatic bottle dividing mechanism,
- Accuracy Labeling
- Intelligent control. No-object, No-labeling.
- High stability. making it possible for long run operation;
- Intelligent control. No-object, No-labeling.
- High stability. making it possible for long run operation;
- Use quality material, compliance with GMP production requirements;
- Available for stand-alone production, connect to production-line operation.
- Various functions, such as failure alarming, production counting, etc.
- Available for stand-alone production, connect to production-line operation.
- Various functions, such as failure alarming, production counting, etc.
Optional functions and components:
(1) Special electric eye
(2) other functions (according to customers’ requirements).
(1) Special electric eye
(2) other functions (according to customers’ requirements).
Technical Parameter :
|
Machine model
|
T-80
|
|
Driven type
|
electric and pneumatic
|
|
Voltage
|
220V 50Hz / 110V 60Hz
|
|
Power
|
500W depend on motor
|
|
Air pressure
|
0.4-0.7Mpa
|
|
Working speed
|
about 20-30 pcs/min
|
|
Labeling accuracy
|
±0.5mm
|
|
Label width
|
40-150mm
|
|
Label length
|
40-400mm
|
|
Label roll inner diameter
|
76mm
|
|
Label roll outer diameter
|
250mm
|
|
Machine size
|
1000*500*900mm
|
|
Weight
|
about 200Kg
|
Application Range:
Labels: self-adhesive label, self-adhesive film, electronic supervision code, bar code, etc.
Industries: food, medicine, cosmetics, daily chemical, electronics, hardware, plastics and other industries.
Examples: labeling on sheet metal parts, boxes, bookshelf, etc
