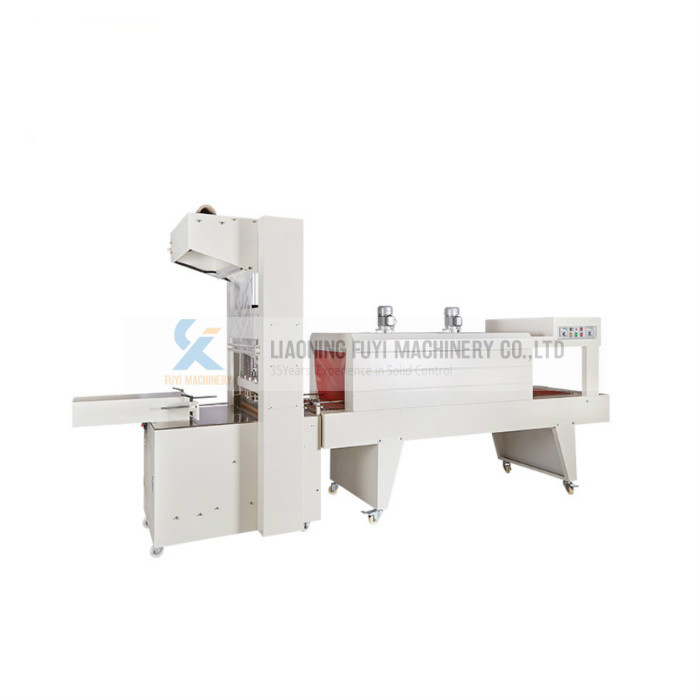

TFB650 cuff film wrapping machine +BSP6050LWL shrink tunnel
Supplier: FUYI Machinery
Share to:
Details
TFB650 cuff film wrapping machine +BSP6050LWL shrink tunnel
Application:
This model is suitable for use with PE film series heat shrink packaging machine. It is made of PE, POF, PP, PVC and other imported and domestic shrink film as packaging materials. After sealing and cutting, the pro
duct directly enters the heat shrink packaging machine to complete the packaging. The earth improves work efficiency and reduces the consumption of electricity. Its main electrical components use imported high-quality components, and the action execution part uses high-quality pneumatic components, so the operation becomes extremely simple, the performance is very stable, the failure rate is extremely low, and the service life is longer. It can work continuously for a long time and can meet the needs of mass production.
Technical data:
|
Semi-auto cuff type film wrapping machine
|
Model: TFB650 Voltage: 220V , 50Hz Power: 1.4KW Wrapping speed: 0～10 times/minute Air pressure: 5-7kg/c㎡ Film width/thickness: Max,550mm/0.03-0.25mm Max wrapping size(L*W*H): 520*320*380mm Max sealing size: 650MM Distance between platform and ground: 750MM+50MM Overall size(L*W*H)： 950*920*1760MM Machine weight： 180KG |
|
Air jet shrinking machine
|
Model: BSP6050LWL Voltage: 380v 50-60HZ Power: 18kw Suitable film: PE.POF.PVC. Shrink tunnel size: 1800x600x500mm Speed: 0-15m/min Conveying material: Chain mesh plated Teflon mesh Conveyor loading weight: Max 50kg Machine size: 2500x900x1660mm Machine weight: 450kg |
Application:
