THDP-3/5/6 Single Punch Tablet Press Machine
Supplier: FUYI Machinery
Share to:
Details

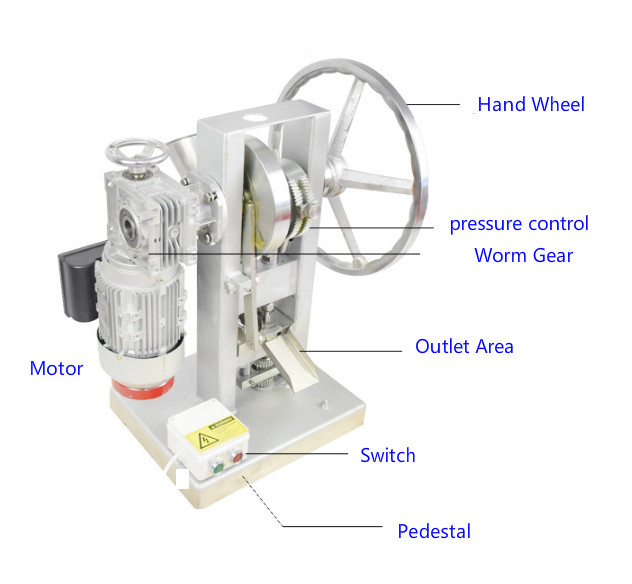

THDP-3/5/6 Single Punch Tablet Press Machine
Product introduction:
This one is the lightest electric single punch tablet press machine This machine is used for pressing different kinds of granular raw materials into round tablets. It is applicable to trial manufacturing in lab or batch production in small amount different kinds of tablets, sugar pieces, calcium tablets and tablets of abnormal shape. It features a small desktop type press for motive and continual sheeting. Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable.
Machine Feature：
1. Easy to operate.
2. High quality with Low Price.
3. Different shapes can be pressed by changing different punching dies.
4. Easily remove parts for quick machine`s maintenance.
5. Size and shapes of tablet could be customized as your need.
6. The thickness of tablet can be adjusted.
Technical parameters:
|
Model |
THDP-3 |
THDP-5 |
THDP-6 |
|
Production capacity（pcs/h） |
4000pcs/h |
4200pcs/h |
4000pcs/h |
|
Max. Diameter of tablet（mm） |
5-15mm |
5-18mm |
25mm |
|
Max.Thickness of tablet（mm） |
0-6mm |
0-7mm |
0-6mm |
|
Max. Filling Depth（mm） |
0-18mm |
0-18mm |
0-18mm |
|
Max. Pressure（Kn） |
0-30KN |
0-50KN |
0-60KN |
|
Motor Power（Kw） |
0.75 KW |
0.75 KW |
1.1KW |
|
Motor Voltage |
220V/110V |
110V/220V/380V |
110V/220V/380V |
|
Overall Dimension（mm） |
450*330*550mm |
500*430*670mm |
780*450*690mm |
|
Weight(kg) |
45kg |
75kg |
80kg |

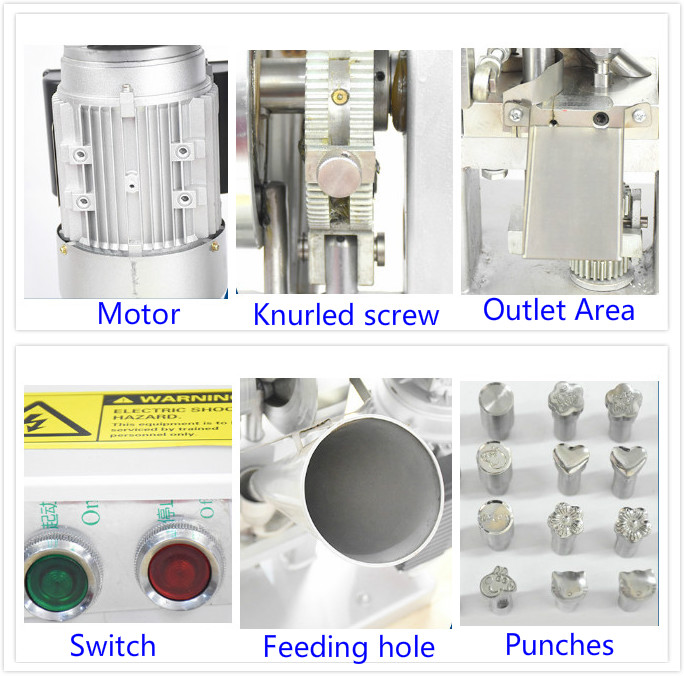

Samples:
